When it comes to transmitting signals, RF cables and coaxial cables are often mentioned together, but they’re not quite the same. If you’re looking to connect devices or set up a system, understanding their differences is key. A coaxial RF adapter can bridge compatibility gaps, making it a vital tool in many setups. This article breaks down what RF and coaxial cables are, how they differ, and where they’re used—all in simple terms for users.
What is a Coaxial Cable?
RG58 and RG6 represent two essential types of coaxial cables, engineered to deliver reliable RF signal transmission with minimal interference and robust durability across diverse applications. These cables are constructed with a central conductor, dielectric insulation, multiple shielding layers, and a protective outer jacket, ensuring consistent performance for test and measurement, video distribution, and communication systems that demand stable signal integrity. The distinct impedance and attenuation properties of these coax rf cable types make them ideal for specific configurations, effectively preserving signal quality over extended distances while reducing loss and electromagnetic interference. With superior impedance matching and mechanical strength, they simplify system integration, lower long-term maintenance costs, and enhance overall value. A wide selection of types of coaxial cables also supports broad frequency compatibility, environmental resistance, and easier installation, providing engineers with dependable solutions that accelerate deployment, extend service life, and ensure consistent operation even in challenging conditions.
Key Features of Coaxial Cables
- Shielding: Blocks external noise for clean signal transmission.
- Broad Use: Handles audio, video, and even RF signals.
- Tough Design: Built to withstand wear and environmental stress.
Types of Coaxial Cables
| Coaxial Cable Type | Typical Impedance | Construction / Design | Main Strengths | Best Use Cases | Notes |
|---|---|---|---|---|---|
| RG-6 | 75Ω | Medium-thick core, strong shielding, low signal loss | Good balance of cost, flexibility, and performance | Cable TV, satellite TV, home internet, set-top boxes | The most common choice for modern TV and broadband installations |
| RG-59 | 75Ω | Thinner conductor, lighter build, simpler shielding | Easy to route, inexpensive | Short-distance video links, older CCTV, legacy TV systems | Works best only over short runs because loss increases faster |
| RG-11 | 75Ω | Thicker cable with a larger center conductor | Very low attenuation over long distances | Long cable TV runs, trunk distribution lines, outdoor feeds | Less flexible, but better when signal must travel farther |
| RG-58 | 50Ω | Thin, flexible, lightweight cable | Convenient for quick setup and short RF runs | Radio equipment, test benches, amateur radio | Not ideal for high-power or long-distance transmission |
| RG-8 | 50Ω | Heavier and thicker than RG-58 | Better power handling and lower loss | Antenna feed lines, RF systems, communication gear | A stronger option when RG-58 is too weak for the job |
| RG-213 | 50Ω | Durable, well-shielded, robust jacket | Reliable performance and strong physical durability | Wireless communication, antennas, outdoor RF links | Often chosen where toughness matters more than flexibility |
| LMR-400 | 50Ω | Low-loss design with advanced shielding | Excellent signal retention, especially at higher frequencies | Wi-Fi antennas, base stations, long RF cable runs | Popular where lower loss is more important than cable softness |
| Triaxial Cable | Varies | Extra shield layer beyond standard coax | Superior noise rejection and isolation | Broadcast systems, precision instruments, professional video setups | More specialized and usually more expensive than standard coax |
What is an RF Cable?
RF cables, or Understanding what is rf cable is essential for high-frequency applications. RF cables are specifically engineered to transmit signals between 3 kHz and 300 GHz with precision and minimal loss. While most RF coaxial cable assemblies utilize a coaxial structure, their primary function is the reliable delivery of radio frequency signals critical for professional systems.
Key Features of RF Cables
- High Frequency: Optimized for radio signals like those in wireless systems.
- Low Loss: Keeps signal strength intact over distance.
- Impedance Control: Matches system requirements (e.g., 50 or 75 ohms).
Core Differences Between RF Cable and Coaxial Cable
The distinction isn’t about construction—most RF cables are coaxial—but about purpose and performance:
- Purpose: RF cables target radio frequency signals; coaxial cables serve broader applications (RF, video, etc.).
- Optimization: RF cables prioritize low signal loss and impedance matching for RF use.
- Scope: Not all coaxial cables are built for RF—some handle lower frequencies or different signal types.
For example, a rf to coaxial cable might connect an RF cable to a device, ensuring seamless signal flow.
Why Standard Coaxial Cable Dimensions Matter
Standard coaxial cable dimensions affect more than physical fit. They influence routing space, flexibility, attenuation, and how easily you can match the cable to the connector and impedance requirements in your system. For RF and industrial buyers, standard coaxial cable dimensions help you balance installation space, signal loss, and mechanical stability before you choose the final cable type. That makes the sizing step useful for test benches, broadband links, and field installations where layout and performance both matter.

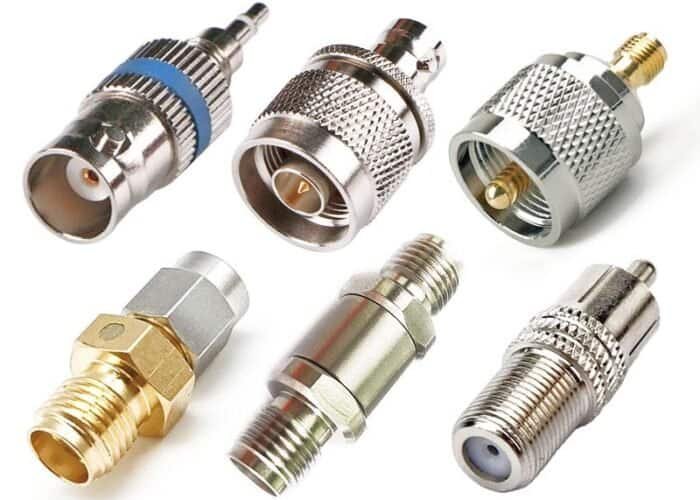

Role of Coaxial RF Adapters and Connectors
Adapters and connectors are essential for linking cables to equipment. They come in various forms to meet specific needs.
Types and Uses
- RF Coaxial Adapter Connector: Links different RF cable connector types (e.g., N-type to SMA).
- RF Coaxial Cable Adapter: Adapts an RF cable to a device’s port.
- Coaxial to RF Adapter: Converts a standard coaxial setup for RF use.
- RF Coax Adapter: Ensures compatibility in RF systems.
- RF Cable Coaxial: Refers to coaxial cables optimized for RF signals.
- Coaxial RF Connectors: Endpoints for connecting RF cables to hardware.
These components maintain signal quality and flexibility, especially in complex setups.
Applications in Real-World Scenarios
Both types of rf cables shine in different contexts, driven by their design and capabilities.
Coaxial Cable Uses

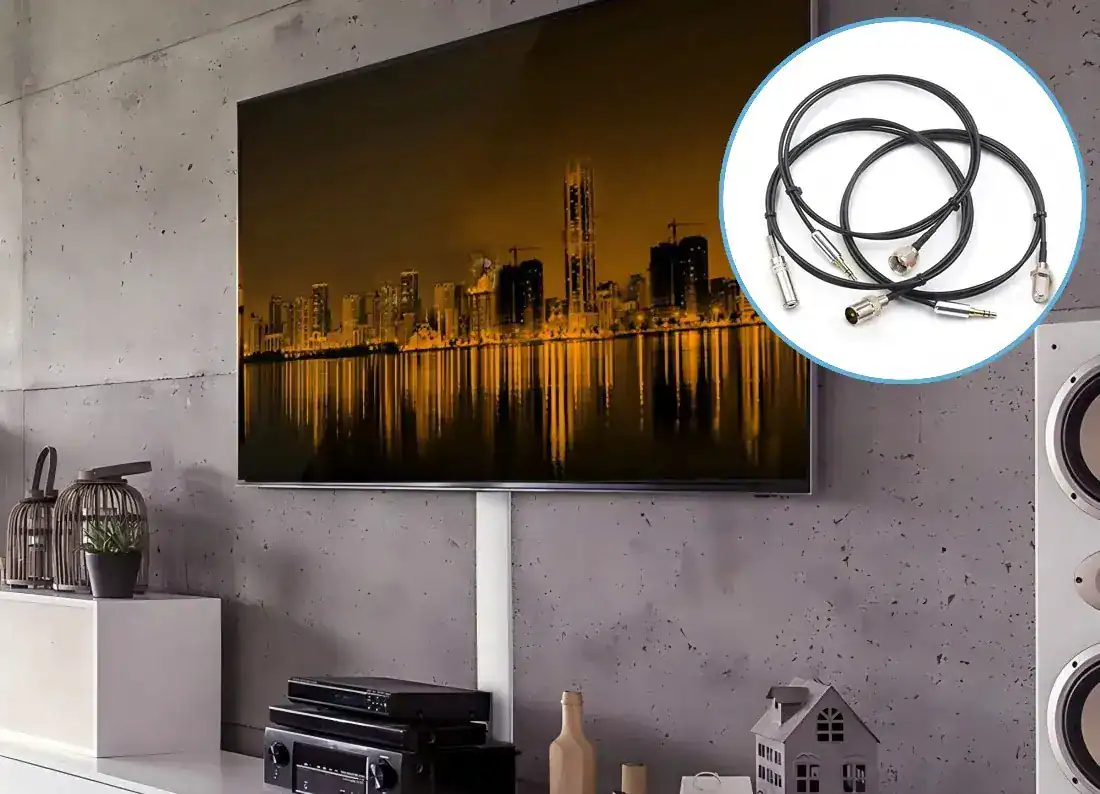

- TV Networks:Understanding coaxial cable types is fundamental for broadcast and distribution systems. RF cables transmit television signals from broadcast hubs to end users across residential, commercial, and hospitality environments. These cables form the core of scalable and interference-resistant signal delivery networks. For operators and service providers, selecting the right RF coaxial cable types ensures minimal signal loss, broader frequency support, and consistent channel integrity across extensive infrastructures. While all RF cables use a coaxial structure, the distinction lies in their engineering for precise high-frequency performance from 3 kHz to 300 GHz, featuring tight impedance control and low-loss dielectrics. Our advanced RF solutions, including various RF to coax cable assemblies, are designed to solve common operational challenges such as signal degradation over long distances and electromagnetic interference in dense deployment environments. By integrating impedance-matched RF coaxial cable types with robust shielding, we help you reduce maintenance interventions, simplify system integration, and ensure reliable content delivery that enhances the end-user experience. Optimize signal clarity, reduce maintenance, and future-proof your television distribution network with advanced RF coaxial solutions engineered for demanding professional applications.

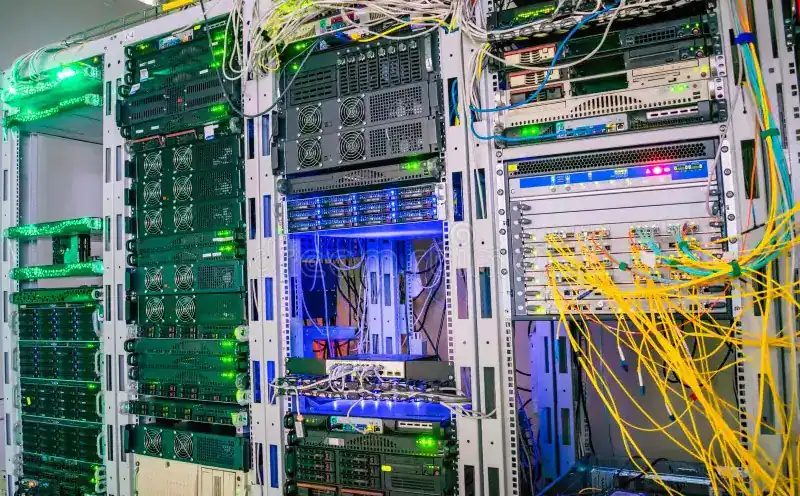

- Internet: Powers broadband with reliable connectivity.
- Telecom: Supports multi-signal telephone lines.
RF Cable Uses
- Antennas: Connects to transmitters for broadcasting.
- Wireless Systems: Key in Wi-Fi and cellular networks.
- Radio: Ensures clear signal delivery in stations.
Need a custom solution? Our RF cable adapters can meet your specific project demands.
How to Choose the Right Cable
Picking the right cable depends on your setup:
- Signal Needs: RF cables for radio signals; coaxial for mixed uses.
- Frequency: Check the cable’s range against your application.
- Impedance: Match it to your system (e.g., 50 ohms for RF).
- Length: Opt for low-loss cables for longer runs.
- Connectors: Use a coaxial RF adapter if connector types differ.
Conclusion
As trusted coax cable manufacturers, we specialize in the precise integration of RF and coaxial cables for demanding professional systems. Our expertise clarifies that RF cables target high-frequency signal integrity, while coaxial cables deliver robust, versatile connectivity. As your dedicated coax cable supply partner, we provide engineered solutions including RF coax connectors, adapters, and low-loss high-frequency cables that ensure accurate impedance matching and minimal signal degradation across wide frequency ranges. We manufacture custom assemblies, including USB to RF cable variants and RF cable male to male assemblies, all built under strict quality control to meet exact specifications for repeatable performance.
Our products address core challenges such as system interoperability, space constraints, and harsh operational environments. We solve these through ready-to-use assemblies, precision phase-matching, and custom-length options, thereby reducing integration time, optimizing physical layouts, and lowering the total cost of ownership. Our technical support and tailored design services further help mitigate signal interference, enhance system longevity, and accelerate deployment cycles—delivering reliable, high-performance connectivity solutions for integrators and OEMs.
