ZOMWAVE is a leading rf switch manufacturer, delivering precision microwave components that route high-frequency signals in advanced test systems. Our solutions eliminate manual reconfiguration to enable complex multi-instrument integration and simultaneous testing protocols. The portfolio features ultra-fast PIN diode switches, durable electromechanical rf switch models, and specialized coaxial rf switch designs including A/B relays and transfer switches. These robust components solve critical challenges in system reliability, signal integrity, and downtime reduction for high-throughput environments.
Our product range includes 50-ohm and 75-ohm configurations with SMA, BNC, and Type-N connectors, supporting matrices from SPDT to SP10T. Engineered for high performance, these switches cover DC to 40 GHz with low VSWR, handle power from 0.5W to 275W, and achieve switching speeds as fast as 100 nanoseconds. This combination ensures accurate and repeatable measurements for enterprise R&D and production testing.
As an ISO 9001:2015-certified manufacturer, ZOMWAVE guarantees shipment within 5 business days and maintains one of the industry’s largest inventories. Our technical specialists offer immediate application guidance and customized solutions, helping clients optimize test system performance and scalability while ensuring compliance with RoHS and REACH standards.
Absorptive SP16T PIN Diode Switch Operating From 0.4 Ghz to 12 Ghz Up to +30 dBm and SMA-Female
SKU:
P/N: PSWA-GT-MA0040120S-01
The PSWA-GT-MA0040120S-01 is a Single Pole Sixteen Throw (SP16T) PIN diode switch with an operating frequency range of 0.4 GHz to 12 GHz. The 50 ohm absorptive design supports TTL compatible driver circuitry for accurate logic control. Impressive typical performance includes 4.7 dB insertion loss, 95 dB isolation, and < 150 nsec switching speed. The switch requires a dual bias voltage of +5Vdc / -5Vdc and has maximum input power handling of up to +30 dBm. The rugged and compact package supports SMA female RF connectors and solder terminal pins for DC bias voltage and TTL control. The switch is designed for high reliability with a wide operational temperature range of -40°C to +85°C and meets a series of environmental test conditions including Altitude, Vibration, Humidity, and Shock.
Absorptive SP8T PIN Diode Switch Operating From 1 Ghz to 8 Ghz Up to +30 dBm and SMA-Female
SKU:
P/N: PSWA-8T-MA0100080S-01
The PSWA-8T-MA0100080S-01 is a Single Pole Eight Throw (SP8T) PIN diode switch with an operating frequency range of 1 GHz to 8 GHz. The 50 ohm absorptive design supports TTL compatible driver circuitry for accurate logic control. Impressive typical performance includes 2.7 dB insertion loss, 80 dB isolation, and < 100 nsec switching speed. The switch requires a dual bias voltage of +5Vdc / -5Vdc and has maximum input power handling of up to +30 dBm. The rugged and compact package supports SMA female RF connectors and solder terminal pins for DC bias voltage and TTL control. The switch is designed for high reliability with a wide operational temperature range of -40°C to +85°C and meets a series of environmental test conditions including Altitude, Vibration, Humidity, and Shock.
Reflective SP3T PIN Diode Switch Operating From 26 Ghz to 40 Ghz Up to +23 dBm and 2.92mm-Female
SKU:
P/N: PSWR-3T-MK2600400S-01
The PSWS-3T-MK2600400S-01 is a Single Pole Three Throw (SP3T) PIN diode switch with an operating frequency range of 26 GHz to 40 GHz. The 50 ohm absorptive design supports TTL compatible driver circuitry for accurate logic control. Impressive typical performance includes 3.0 dB insertion loss, 55 dB isolation, and < 100 nsec switching speed. The switch requires a dual bias voltage of +5Vdc / -5Vdc and has maximum input power handling of up to +23 dBm. The rugged and compact package supports 2.92mm female RF connectors and solder terminal pins for DC bias voltage and TTL control. The switch is designed for high reliability with a wide operational temperature range of -40°C to +85°C and meets a series of environmental test conditions including Altitude, Vibration, Humidity, and Shock.
DPDT Electromechanical Relay Latching Switch, Unterminated DC to 40 GHz, up to 10W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWSDP-MK40G24V-L3J3-01
The SWSDP-MK40G24V-L3J3-01 is a Double Pole Double Throw (DPDT) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 10W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 1 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*5P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.

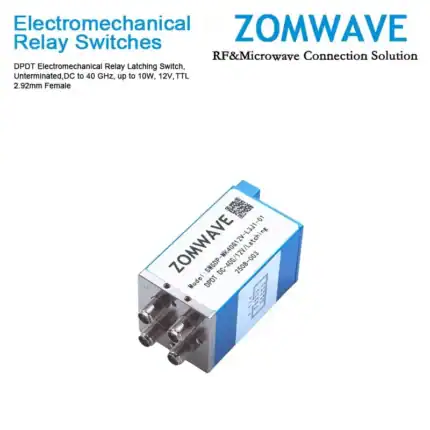

DPDT Electromechanical Relay Latching Switch, Unterminated DC to 40 GHz, up to 10W, 12V,TTL(H), 2.92mm Female Type
SKU:
P/N:SWSDP-MK40G12V-L3D9-01
The SWSDP-MK40G12V-L3D9-01 is a Double Pole Double Throw (DPDT) electromechanical relay switch that operates across a wide frequency range of DC to 40 GHz and can handle up to 10W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 1 dB insertion loss and isolation greater than 55 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D Sub 9 for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
DPDT Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 24W, 24V, Positive Common, 2.92mm Female Type
SKU:
P/N:SWSDP-MK26G24V-L3J3-01
The SWSDP-MK26G24V-L3J3-01 is a Double Pole Double Throw (DPDT) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 24W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.9 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and 2*5P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
DPDT Electromechanical Relay Latching Switch, Unterminated DC to 26.5 GHz, up to 24W, 12V, TTL(H), 2.92mm Female Type
SKU:
P/N:SWSDP -MK26G12V-L3D9-01
The SWSDP -MK26G12V-L3D9-01 is a Double Pole Double Throw (DPDT) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 24W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.9 dB insertion loss and isolation greater than 60 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and D-SUB 9P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
DPDT Electromechanical Relay Latching Switch, Unterminated DC to 18 GHz, up to 80W, 24V, Positive Common, SMA Female Type
SKU:
P/N:SWSDP-MA18G24V-L3J3-01
The SWSDP-MA18G24V-L3J3-01 is a Double Pole Double Throw (DPDT) electromechanical relay switch that operates across a wide frequency range of DC to 18 GHz and can handle up to 80W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.50 dB insertion loss and isolation greater than 65 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and 2*5P JTAG for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
DPDT Electromechanical Relay Latching Switch, Unterminated DC to 18 GHz, up to 80W, 12V, TTL(H), SMA Female Type
SKU:
P/N:SWSDP-MA18G12V-L3D9-01
The SWSDP-MA18G12V-L3D9-01 is a Double Pole Double Throw (DPDT) electromechanical relay switch that operates across a wide frequency range of DC to 18 GHz and can handle up to 80W of average power in a break before make condition. The design is rated for 2.5 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.65 dB insertion loss and isolation greater than 65 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and D-SUB 9P for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.
2x SP8T Electromechanical Switch Matrix, Terminated,DC to 40 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N:SML-2P16T-MK40G-UE-01
The SML-2P12T-MK40G-UE-01 is a switch matrix consisting of two Single Pole Sixteen Throw (2xSP8T) electromechanical relays, designed for a wide frequency range from DC to 40GHz. It handles up to 5W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 1.1 dB and isolation greater than 50 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
2x SP8T Electromechanical Switch Matrix, Terminated,DC to 26.5 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N:SML-2P16T-MK26G-UE-01
The SML-2P16T-MA26G-UE-01 is a switch matrix consisting of two Single Pole Sixteen Throw (2xSP8T) electromechanical relays, designed for a wide frequency range from DC to 26.5GHz. It handles up to 14W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 1 dB and isolation greater than 55 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
1x SP8T Electromechanical Switch Matrix, Terminated,DC to 26.5 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N:SML-1P08T-MK26G-UE-01
The SML-1P08T-MK26G-UE-01 is a Single Pole Eight Throw (SP8T) electromechanical relay switch matrix designed for a wide frequency range from DC to 26.5 GHz. It handles up to 14W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 1 dB and isolation greater than 55 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
