ZOMWAVE’s electromechanical switch matrix category includes multiple part numbers, most of which are RoHS and REACH compliant. Our RF coaxial switch matrix and relay switch matrix products are manufactured to strict RF and microwave industry standards, giving you a reliable solution for signal routing, test automation, and system integration where stable performance matters.
ZOMWAVE’s ISO 9001:2015 certified facility can ship RF coaxial switch matrix and relay switch matrix orders within 5 days from one of the widest and deepest RF and microwave inventories available. This helps you shorten lead times, reduce sourcing pressure, and keep project schedules moving without unnecessary delays. We also provide responsive technical support and customer service to help you select the right configuration faster.
With dependable switching performance, broad stock availability, and strong quality control, these products help reduce integration risk, simplify procurement, and support long-term system reliability. They are a practical fit when you need cleaner signal routing, easier maintenance, and faster deployment in demanding RF and microwave applications.
2x SP8T Electromechanical Switch Matrix, Terminated,DC to 40 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N:SML-2P16T-MK40G-UE-01
The SML-2P16T-MK40G-UE-01 is a switch matrix consisting of two Single Pole Sixteen Throw (2xSP8T) electromechanical relays, designed for a wide frequency range from DC to 40GHz. It handles up to 5W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 1.1 dB and isolation greater than 50 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
2x SP8T Electromechanical Switch Matrix, Terminated,DC to 26.5 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N:SML-2P16T-MK26G-UE-01
The SML-2P16T-MA26G-UE-01 is a switch matrix consisting of two Single Pole Sixteen Throw (2xSP8T) electromechanical relays, designed for a wide frequency range from DC to 26.5GHz. It handles up to 14W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 1 dB and isolation greater than 55 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
1x SP8T Electromechanical Switch Matrix, Terminated,DC to 26.5 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N:SML-1P08T-MK26G-UE-01
The SML-1P08T-MK26G-UE-01 is a Single Pole Eight Throw (SP8T) electromechanical relay switch matrix designed for a wide frequency range from DC to 26.5 GHz. It handles up to 14W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 1 dB and isolation greater than 55 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

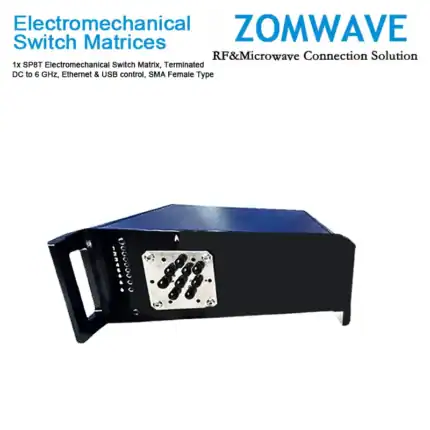

1x SP8T Electromechanical Switch Matrix, Terminated,DC to 6 GHz, Ethernet & USB control, SMA Female Type
SKU:
P/N:SML-1P08T-MA06G-UE-01
The SML-1P08T-MA06G-UE-01 is a Single Pole Eight Throw (SP8T) electromechanical relay switch matrix designed for a wide frequency range from DC to 6 GHz. It handles up to 32W of average power and operates on a break-before-make basis. Rated for 2 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 0.3 dB and isolation greater than 70 dB.
The switch requires a AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all SMA (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

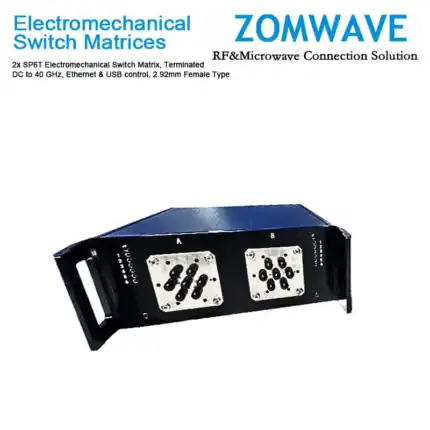

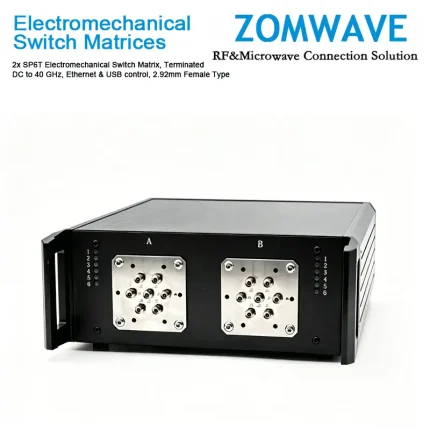

2x SP6T Electromechanical Switch Matrix, Terminated, DC to 40 GHz, Ethernet & USB control, 2.92mm Female Type
SKU:
P/N: SML-2P12T-MK40G-UE-01
The SML-2P12T-MK40G-UE-01 is a switch matrix consisting of two Single Pole Twelve Throw (2xSP6T) electromechanical relays, designed for a wide frequency range from DC to 40 GHz. It handles up to 5W of average power and operates on a break-before-make basis. Rated for 2.5 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 0.9 dB and isolation greater than 55 dB.
The switch requires an AC 110V~265V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
