RF probes are critical tools in the electronics and semiconductor industries, designed to test and measure high-frequency devices and circuits. Among them, the GSG probe stands out as a popular choice for its precision in handling RF and microwave frequencies. This article explores the uses of RF probes, with a focus on GSG probes, their applications, and how they benefit B2B users in testing and development processes.
What is a GSG Probe?

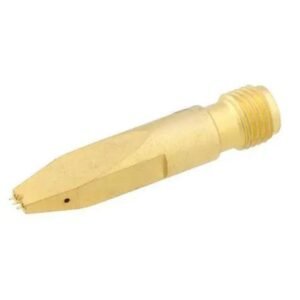

A GSG probe, short for Ground-Signal-Ground probe, is an RF probe with a unique configuration featuring two ground contacts surrounding a central signal contact. This design minimizes noise and ensures stable, accurate measurements at high frequencies, making it ideal for testing small-pitch devices like those on semiconductor wafers. Leading options like the FormFactor GSG probe and GGB GSG probe are engineered to support frequencies from DC to over 110 GHz, catering to advanced testing needs.
Key Features of GSG Probes
- Signal Integrity: The GSG layout reduces interference, ensuring reliable data.
- Versatility: Suitable for various pad sizes and high-frequency applications.
- Durability: Built to withstand repeated use in industrial settings.
Applications of GSG Probes
GSG probes are widely used across industries for their precision and adaptability. Here are their primary applications:
Wafer-Level Testing
In semiconductor production, GSG RF probes are essential for on-wafer testing. They connect directly to device pads, enabling engineers to detect defects early, optimize yield, and reduce costs.
Device Characterization
The GGB GSG probe and similar models excel in characterizing electrical properties of components like transistors and ICs. This ensures devices meet performance standards before integration.
Signal Integrity Analysis
For high-speed circuits, RF GSG probes measure signal quality, identifying issues like crosstalk or signal loss critical to 5G and IoT technologies.
RF Module Testing
GSG probes facilitate testing of RF modules by injecting signals and analyzing outputs, ensuring functionality in real-world conditions.
Research and Development
In R&D, tools like the HFSS GSG probe model simulate performance, while physical probes validate cutting-edge designs for next-gen applications.
Choosing the Right GSG Probe
Frequency Compatibility
Ensure the probe supports your device’s frequency range. The FormFactor GSG probe, for instance, handles up to 110 GHz, ideal for mmWave testing.
GSG Probe Pitch
The GSG probe pitch—the spacing between contact tips—must align with device pad sizes. Options typically range from 50 to 300 microns.
Performance Factors
- Contact Resistance: Low resistance ensures measurement accuracy.
- Lifetime: High-quality probes offer longevity, reducing replacement costs.
Simulation tools like the HFSS GSG probe model can aid in choosing the optimal probe by predicting performance.
Leading GSG Probe Manufacturers
Two industry leaders dominate the GSG probe market:
- FormFactor: The FormFactor GSG probe is renowned for its precision in wafer testing and device modeling, offering robust solutions for B2B clients.
- GGB Industries: The GGB GSG probe provides exceptional reliability, supporting high-frequency applications with consistent results.
Both brands offer calibration accessories to enhance measurement accuracy, making them trusted choices for professionals.
Leading GSG Probe Manufacturers
RF probes, especially GSG probes, are vital for ensuring the performance and reliability of high-frequency devices in semiconductor testing and beyond. Their applications—from wafer testing to R&D—make them indispensable for B2B users aiming to maintain quality and innovate. By selecting the right GSG RF probe based on frequency, pitch, and durability, businesses can streamline testing processes and drive success in competitive markets.
