Introduction
When selecting high-frequency connectors for microwave applications, engineers often face a critical decision: 2.92mm connector vs SMA. Users widely utilize both interfaces in RF systems, but they differ significantly in performance, dimensions, and compatibility.
Engineers designed the 2.92mm connector for frequencies up to 40 GHz. It offers benefits over traditional SMA connectors, which usually have a rating of 18 GHz. This article looks at their technical specifications, use cases, and cost-efficiency. It aims to help B2B users make smart choices for challenging microwave projects.
Performance Comparison Table SMA vs 2.92mm
| Attribute | SMA | 2.92mm | Practical note |
|---|---|---|---|
| Typical frequency range | DC–18 GHz | DC–40 GHz | Use sma connector frequency range for legacy RF; use 2.92 mm connector frequency range for higher bands. |
| Typical VSWR at upper band | 1.2–1.5 | 1.05–1.2 | 2.92mm microwave connectors provide lower reflection and better phase stability. |
| Insertion loss trend above 18 GHz | Moderate rise | Lower rise | 2.92mm coaxial connector reduces insertion loss at mmWave. |
| Power handling (same size) | Moderate | Higher | 2.92mm often supports higher power density. |
| Mechanical tolerance | Standard | Tight | 2.92mm requires precision machining and controlled torque. |
| Typical applications | Test equipment, telecom links | Microwave radios, mmWave test | Choose by frequency, phase stability, and space constraints. |
| Relative cost | Lower | Higher | 2.92mm premium for precision and performance. |
Frequency and Signal Integrity Guidance
Use the SMA connector frequency range as the primary filter for systems operating below 18 GHz. For designs that extend into 18–40 GHz, specify a 2.92 mm connector frequency range and adopt 2.92mm microwave connectors to minimize VSWR and phase error. When documenting test procedures and calibration, record the connector type and mating history to ensure repeatable measurements. For cable assemblies and fixtures used in mmWave validation, prefer 2.92mm coaxial connector interfaces to preserve measurement accuracy and reduce rework.
Mechanical and Environmental Considerations
2.92mm coaxial connector assemblies demand tighter machining tolerances, precise coupling torque, and stricter plating controls to maintain electrical performance. SMA connectors remain robust and cost-effective for many sub-18 GHz deployments and for field-replaceable antenna interfaces. Specify mating cycle rating, plating (gold over nickel recommended), and torque values in procurement documents to reduce intermittent grounding, connector wear, and field failures. For vibration-prone environments, require mechanical retention features and test reports demonstrating stability under vibration.
Key Differences Between 2.92mm and SMA Connectors
Frequency Performance and Connector Dimensions

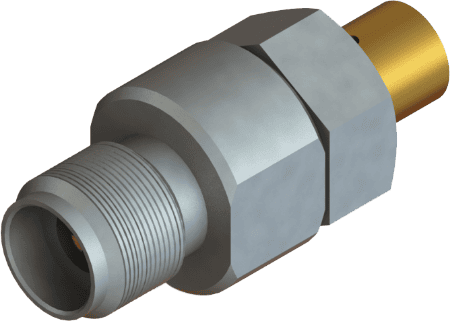

Engineers designed the 2.92mm connector for higher frequencies, allowing it to reach up to 40 GHz. Its precise 2.92mm inner diameter helps reduce signal loss.

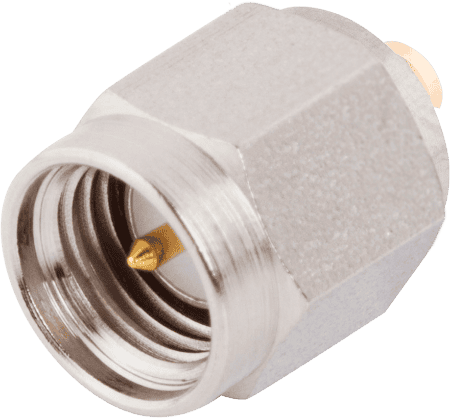

In contrast, SMA connectors operate reliably up to 18 GHz, making them suitable for mid-range applications. In industries like aerospace or 5G infrastructure, ultra-high-frequency stability is important.
The 2.92mm interface works better than SMA. It reduces the voltage standing wave ratio (VSWR) effectively.
When Should You Choose a 2.92mm Connector Instead of SMA?
When you work above the SMA comfort zone, the 2.92mm connector becomes the safer choice for microwave performance. ZOMWAVE’s 2.92mm connector line is built for up to 40 GHz at 50 ohm, while SMA is commonly used up to 18 GHz, so the real decision is not only about size but about bandwidth headroom and signal stability.
If you are designing test cables, aerospace links, or high-frequency measurement paths, you should treat 2.92mm as the option that gives you more margin for phase stability, lower loss, and cleaner microwave behavior. SMA still makes sense for cost-sensitive systems and mid-range frequencies, but once your project moves closer to millimeter-wave requirements, the 2.92mm interface gives you more confidence in the final build.
Key reasons engineers move to 2.92mm
- higher frequency headroom
- better microwave margin
- stronger fit for precision test systems
- reduced risk when scaling toward 40 GHz
Mechanical Durability and harmony
SMA connectors use a threaded design for strong connections. The 2.92mm connector has a similar design but with tighter tolerances. However, SMA’s widespread adoption ensures harmony with legacy systems. For hybrid setups, hybrid adapters (e.g., 2.92mm-to-SMA) can bridge these interfaces but may introduce minor performance trade-offs.
2.92mm Connector vs SMA Connector Data Comparison
| Item | 2.92mm Connector | SMA Connector | Practical Takeaway |
|---|---|---|---|
| Typical frequency range | Up to 40 GHz | Up to 18 GHz | Use 2.92mm when you need higher microwave bandwidth. |
| Impedance | 50 Ohm | 50 Ohm | Both match RF systems, but 2.92mm carries more high-frequency margin. |
| Best use case | Microwave cables, test systems, aerospace, telecom | Mid-range RF, general test equipment | Choose based on frequency and precision needs. |
| Cable integration | Supports 2.92mm to SMA cable assemblies | Native SMA cable use | 2.92mm can bridge mixed systems without redesigning everything. |
| Performance focus | Phase stability, low loss, high-frequency consistency | Cost efficiency, broad compatibility | 2.92mm is the stronger technical choice for demanding links. |
This comparison helps readers move from general connector knowledge to purchase-ready selection. If your system must stay stable at higher frequencies, the 2.92mm connector is the stronger technical option. If your project is still within standard RF limits, SMA remains a practical and economical choice.
Applications and Cost Considerations
Ideal Use Cases for Each Connector
- 2.92mm Connectors: Best for millimeter-wave systems, radar, and high-speed data links.
- SMA Connectors: Ideal for test equipment, telecom base stations, and cost-sensitive projects.
Budget and Long-Term ROI
SMA connectors offer a cost-effective solution for applications within the sma frequency range, being 30–50% more affordable than 2.92mm types and suitable for low-frequency prototypes and initial testing phases. In contrast, 2.92mm connectors provide enhanced performance for high-frequency and high-precision environments, reducing recalibration needs and supporting lower long-term cost of ownership. When selecting connectors for commercial or test systems, it is important to evaluate both mechanical durability and repeated performance stability. ZOMWAVE supports informed decision-making with reliable SMA and 2.92mm connector solutions that ensure consistent signal integrity across various applications.
However, 2.92mm connectors are more durable and perform better. This can result in fewer maintenance problems and replacements later on. This is particularly important in high-frequency applications where signal integrity is critical.
Performance and Reliability
2.92mm connectors excel in environments where precision is paramount. Their design reduces signal loss and reflection. This makes them good for uses that need high quality, like advanced radar systems and fast data transmission.
On the other hand, SMA connectors, while reliable, may not perform as well in these demanding scenarios. They are, however, perfectly adequate for many standard applications, providing a good balance of performance and cost.
Future Trends in Connector Technology
As technology keeps changing, the need for higher frequencies and better performance will likely lead to new connector designs. New materials and manufacturing methods may create new connector types. These connectors could combine the best features of SMA and 2.92mm connectors. Staying informed about these trends can help engineers and project managers make more strategic decisions regarding their connectivity solutions.
In conclusion, you should guide your choice between SMA and 2.92mm connectors based on the specific requirements of your project. Consider factors such as application type, budget constraints, and long-term performance needs. By carefully evaluating these elements, you can select the connector that best aligns with your goals, ensuring both immediate functionality and future reliability.
Conclusion
When selecting interconnect solutions, consider both sma to 2.92 mm cable and 2.92mm microwave connectors for optimal performance across different frequency and mechanical requirements. SMA offers cost efficiency and broad compatibility for mid-range uses, while 2.92mm connectors provide superior high-frequency performance with minimal signal loss for demanding microwave systems. ZOMWAVE helps customers achieve reliable transitions and stable signal integrity in test, measurement, and communication setups with precision-engineered adapters and cable assemblies tailored to specific application needs.
