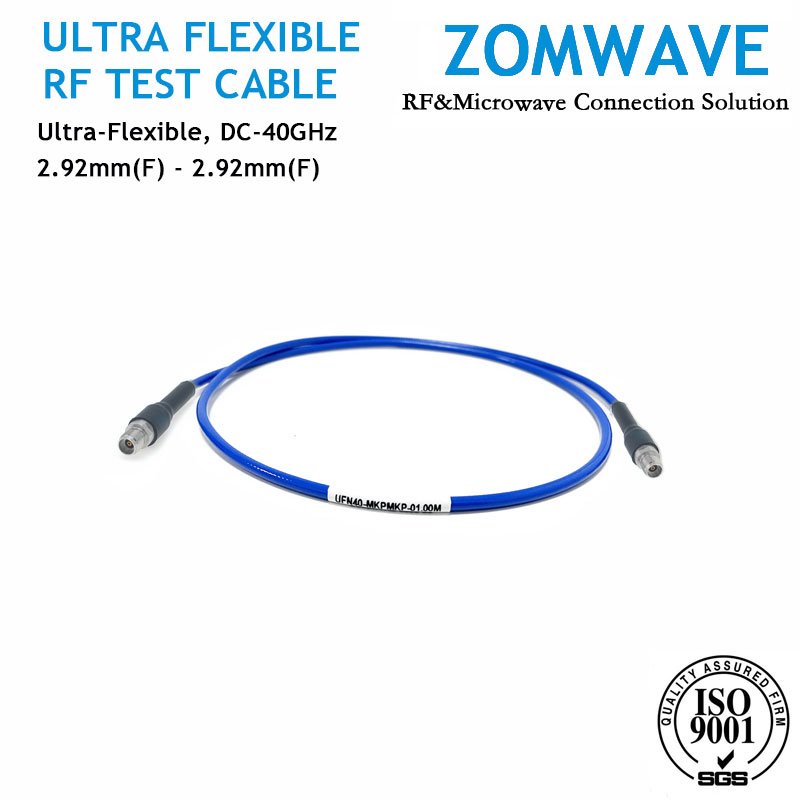

ZOMWAVE Ultra Flexible Low Loss Phase Stable Test Cables excel in both flexible and hi-flex testing environments. The ZOMWAVE 2.92 mm cable features 2.92mm female to 2.92mm female connectors, ultra-flex wire strands and an extremely bendable polyurethane jacket that enables very small bend radii and up to 10 million flex cycles with no wire compression, corkscrewing or distortion. Compared to standard semi-rigid cables, this 2.92 mm cable delivers lower phase variation and longer flex life, making it ideal for repeated test cycles and tight routing paths. Durable stainless steel passivated connectors provide reliable performance in demanding applications without sacrificing signal integrity.

Quantity Price Discount
1-9 $103.97 0%
10-49 $99.81 4%
50-99 $95.65 8%
100+ $87.33 16%

   200+                                     Call US

   Get a lower discount price

24in
36in
48in
60in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 12.92mm
Connector Gender 1Female
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Stainless Steel, Passivated
Connector Series 22.92mm
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Stainless Steel, Passivated
Cable TypeDEII-450

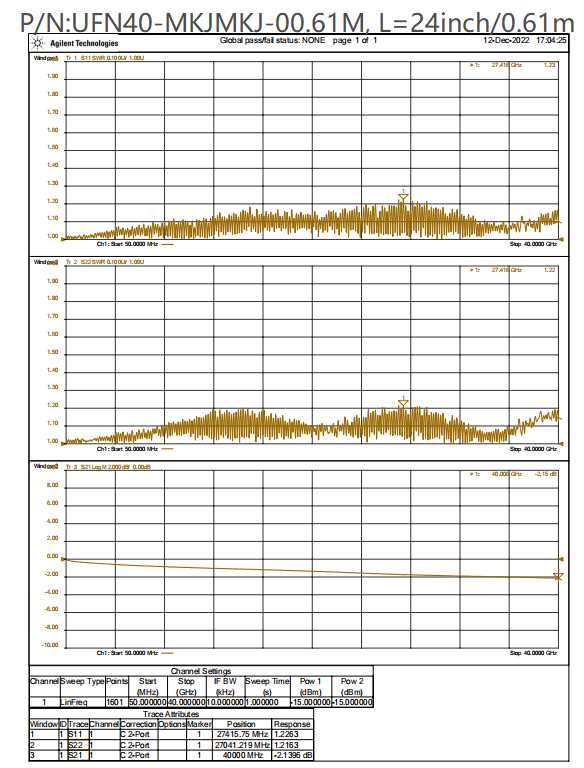

Electric Specifications
Impedance50 ohm
Frequency Range(From DC)40GHz
VSWR≤1.3:1 (DC 0~40GHz)
Insertion LossDepends on cable length
Mechanical Phase<±5°@40GHz
Amplitude Stability<±0.05dB@40GHz
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 1000 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketPolyurethane
Jacket Diameter(mm)4.50±0.15
Min. Bending Radius(mm)20
Shielding Effect(dB)>100 (0~1GHz)
Weight(kg/km)60 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.29
10.41
20.59
30.73
50.96
61.06
101.39
181.92
202.04
26.52.39
403.04
