When setting up RF or video systems, a common question arises: What kind of cable uses BNC connectors? The answer is coaxial cables, paired with BNC connector types, forming a reliable solution for high-frequency signal transmission. BNC coaxial cable adapters play a vital role in ensuring compatibility across devices. In this article, we’ll explore the problem of identifying these cables, analyze their specifications and applications, and provide solutions for seamless connectivity—whether through standard setups, adapters, or custom designs.
The Problem: Identifying Cables for BNC Connectors
Selecting the right BNC connectors types and RG6 BNC connector for broadcast and telecom systems is essential for ensuring reliable performance, especially when addressing the needs of industrial and trade integration companies working with enterprise clients. Engineers and procurement teams require detailed guidance on impedance compatibility, termination methods, and environmental ratings when defining the appropriate BNC connector. Common challenges, such as signal degradation over long distances, impedance mismatches, connector assembly errors, and high maintenance costs, can undermine system performance. ZOMWAVE tackles these issues with factory-tested terminations, precise manufacturing tolerances, and clear specifications to reduce return loss, simplify installation, and lower the total cost of ownership. We also assist in identifying the most suitable cable types, like RG-58 and RG-59, to ensure optimal signal integrity, prevent mismatches, and minimize installation errors across a variety of applications. This comprehensive support helps system integrators and operations teams improve efficiency and maintain the highest standards of reliability:
- Compatibility Issues: Mismatched connectors or cables leading to signal loss.
- Application-Specific Needs: Uncertainty about which cable suits a particular frequency or distance.
- Connection Flexibility: Needing to integrate BNC systems with other connector types.
Understanding what cables work with BNC connectors and how to adapt them is essential for efficient operations.
Analysis: Breaking Down BNC Connectors and Cables
What Are BNC Connectors?

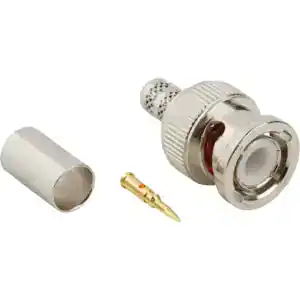

BNC connectors (Bayonet Neill‑Concelman) are RF connectors renowned for their fast, reliable bayonet‑style coupling and consistent 50 Ω impedance. A clear bnc cable definition highlights their evolution from military‑grade origins to widespread use in broadcasting systems, telecommunications networks, professional test and measurement equipment, CCTV installations and aerospace applications. As an integrated industrial and trading partner serving B‑end clients, we provide precision‑manufactured types of BNC cables and assemblies engineered for durability, signal integrity and seamless integration into complex RF infrastructures. It’s widely used for:
- Radio and television equipment
- Test instruments
- Video surveillance systems
They come in 50-ohm and 75-ohm variants, each tailored to specific signal types—50-ohm for RF and data, 75-ohm for video.

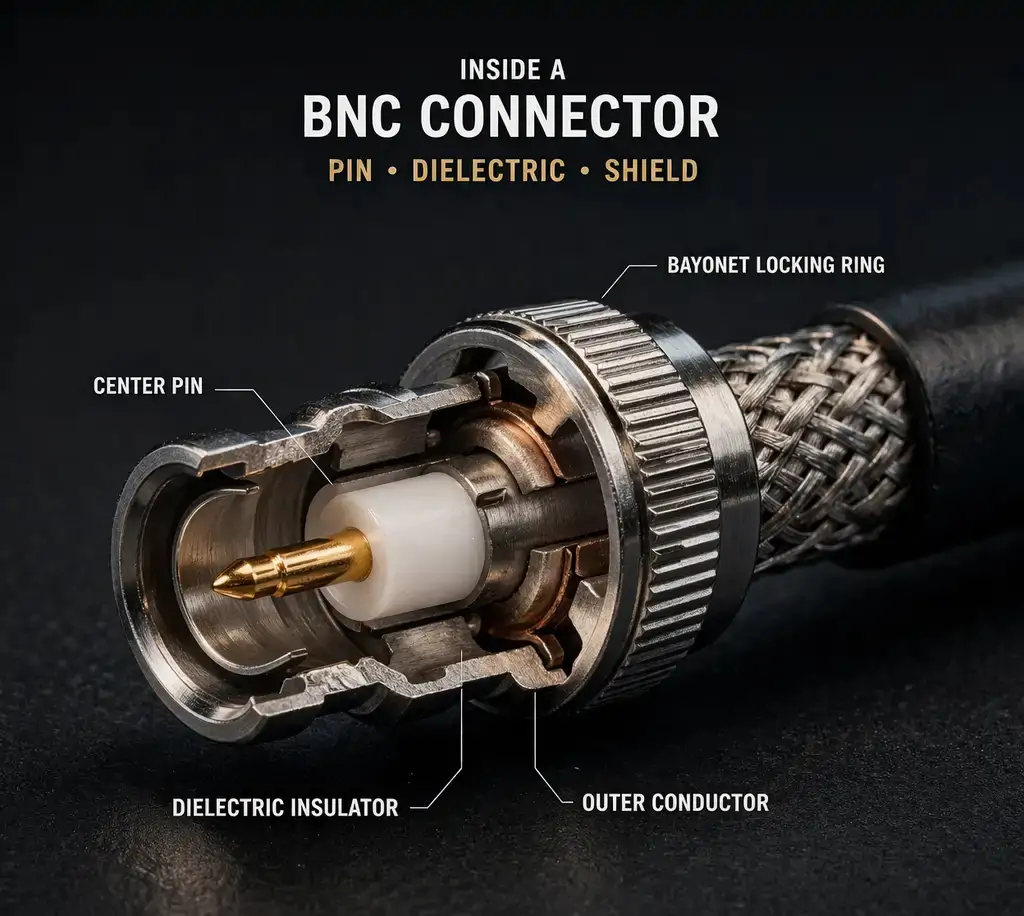

Key features of the BNC connector
| Key Feature | What It Delivers Technically | Why It Matters in Real Use (Especially in Humid Climates) | Edge Over Everyday Alternatives |
|---|---|---|---|
| Bayonet Quick-Lock System | 1/4-turn coupling with dual lugs | Locks securely in seconds—no tools needed, even with gloves | Faster than threaded connectors for frequent changes |
| Dual Impedance Options | Precise 50Ω or 75Ω matching to cable | Zero reflection losses when paired right | Perfect for both data/RF (50Ω) and video (75Ω) without adapters |
| Frequency Handling | Stable from DC up to 4 GHz practical limit | Handles 1080p video, 12G-SDI 4K feeds, and basic RF tests | Covers 90% of pro and hobby jobs without jumping to pricier options |
| Low VSWR & Signal Integrity | Typically under 1.3 max at operating freq | Cleaner signals over long runs with minimal drop-off | Keeps your CCTV crisp or scope readings accurate |
| Vibration & Durability | 500+ mating cycles, rugged brass body | Survives daily plug/unplug and equipment shake | Outlasts solder-only setups in mobile or industrial gear |
| Termination Versatility | Works flawlessly with crimp or solder | Quick field repairs without melting the dielectric | Pairs perfectly with the crimping methods you already use |
| Environmental Toughness | Weatherproof variants resist moisture ingress | No hidden corrosion in tropical humidity or outdoor runs | Built for Singapore-style conditions where others fail early |
What Are Coaxial Cables?

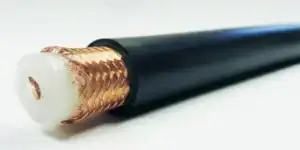

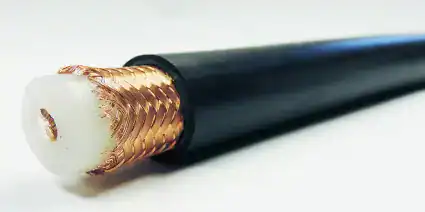

Coaxial cables feature an inner conductor, insulating layer, shielding, and outer jacket. This structure minimizes interference and signal loss, making them ideal for BNC connectors. Their impedance (50 or 75 ohms) must align with the connector and device for optimal performance.
Cables That Use BNC Connectors

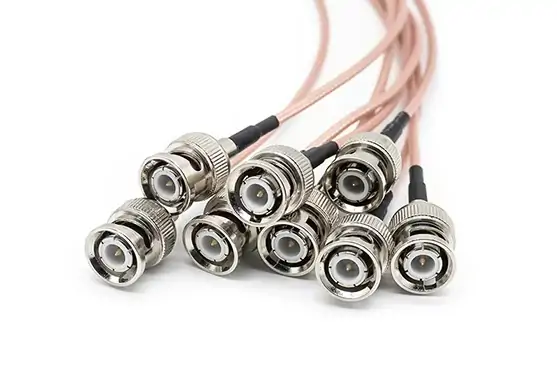

Several coaxial cables pair with BNC connectors, each with unique traits:
- RG-58: 50-ohm, perfect for RF applications like radio communication.
- RG-59: 75-ohm, common in CCTV and video setups.
- RG-6: 75-ohm, used for cable TV and satellite systems.
- RG-11: 75-ohm, suited for long-distance video with low loss.
The choice depends on frequency, signal type, and installation environment.
The Role of Adapters
Adapters bridge compatibility gaps. Keywords like rf adapter BNC, coaxial cable adapters, and BNC RCA cable adapter highlight their importance. For instance:
- BNC to RCA: Links BNC systems to consumer devices.
- BNC to SMA: Connects to RF testing equipment.
Solution: Choosing and Implementing the Right Setup
Step 1: Match Impedance and Cable Type
- For RF Applications: Use RG-58 with 50-ohm BNC connectors.
- For Video Systems: Opt for RG-59 or RG-6 with 75-ohm BNC connectors.
Step 2: Leverage BNC Cable Adapters
When standard cables don’t fit:
- Use a BNC cable adapter to extend or convert connections.
- Example: A BNC RCA cable adapter connects a CCTV camera to a TV.
Step 3: Consider Custom Solutions
For unique needs, BNC coaxial cables custom or coaxial cable custom BNC offer:
- Tailored Lengths: Reduce clutter and signal degradation.
- Special Shielding: Enhance performance in noisy environments.
Case Study: Custom BNC in Action
A broadcasting firm needed a 100-meter run for a high-definition video feed. Standard RG-6 wasn’t enough due to interference. A custom RG-11 cable with a 75-ohm BNC connector and extra shielding solved the issue, delivering crisp signals.
Step 4: Installation Best Practices
- Secure the Bayonet: Ensure a firm lock to avoid disconnection.
- Inspect Regularly: Check for wear on cables and BNC cable adapters.
- Quality Matters: Use reliable coaxial cable adapters to maintain signal integrity.
Why BNC Coaxial Cable Adapters Matter for Your Business
BNC cable types are prioritized to align with procurement search intent and guide engineering decisions. When comparing coax vs BNC, critical factors such as signal integrity, mechanical durability, and installation efficiency directly impact system reliability. Whether your project requires a standard coaxial cable adapter or a custom BNC coaxial cable assembly, our integrated manufacturing and trading model ensures precision-built solutions that maximize uptime and streamline inventory management. Commonly used in broadcast, telecommunications, aerospace, security, and industrial automation, these assemblies maintain consistent impedance matching and low signal loss. Understanding the BNC connector meaning helps in selecting the right BNC connector coax solution for robust performance. Key advantages include 5-day shipping, rapid customization, 100% functional testing, and traceable test reports—all designed to shorten qualification cycles, minimize returns, and reduce total cost of ownership. Additionally, our products help mitigate signal interference, simplify maintenance, and enhance system longevity. Partner with us to shorten supply chains, reduce spare part requirements, and receive responsive support for enterprise RF deployments and warranty services:
- Reliability: Consistent signal quality for critical operations.
- Flexibility: Adaptable setups for diverse equipment.
- Cost-Efficiency: Fewer replacements with proper selections.
For clients, this translates to smoother projects and happier customers. Need a specific setup? Contact us for tailored BNC cable adapters or custom solutions.
