Introduction: The Dilemma of Choosing Between SMB and SMA
When designing or upgrading coaxial cable systems, engineers and procurement managers often have a key question. They want to know which connector is better: sma vs smb connector? Both SMB (SubMiniature Version B) and SMA (SubMiniature Version A) connectors are common in RF and high-frequency uses. However, their design, performance, and cost differences can affect project success.
The debate around SMB vs SMA connector hinges on factors like frequency range, durability, and installation efficiency. For example, SMB jack connectors are popular in small devices because they snap on easily. In contrast, SMA connectors have a threaded design that provides strong stability. This article provides a data-driven comparison to guide engineering and procurement teams.

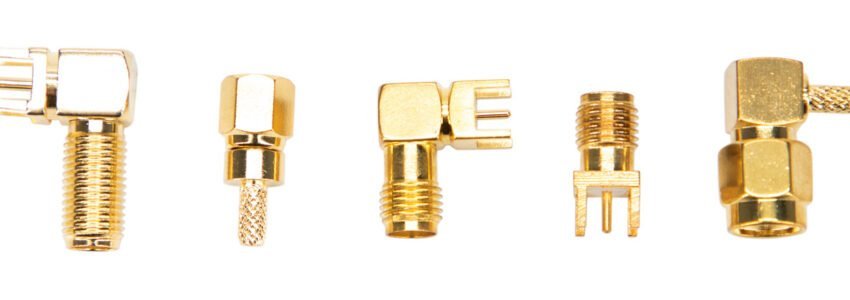

SMA connectors ：
On the other hand, SMB connectors generally operate effectively up to about 4 GHz. While this range is sufficient for many applications, it may not meet the needs of more demanding RF environments.Durability is another critical factor. Engineers build SMA connectors strong to handle tough conditions. This makes them good for outdoor and industrial use.

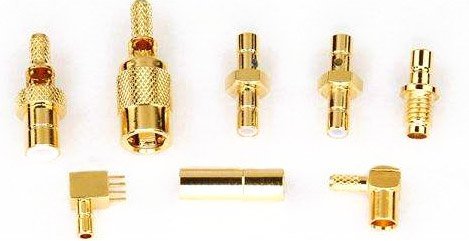

SMB connectors ：
For engineers and procurement teams evaluating “smb connector male female”,”smb male connector” note that a threaded coupling mechanism delivers a robust mechanical connection that resists loosening and helps prevent accidental disconnections from vibration or movement. This makes threaded designs attractive where retention and environmental resilience are priorities.
The smb cable connector offers rapid connect and disconnect with a compact footprint optimized for small form factor devices. Its snap on design streamlines assembly and is ideal for applications where installation speed and space savings are critical. In high vibration or extreme environment scenarios the snap on mechanism may be less reliable, so reinforced variants are available to provide the stability and lifecycle performance required for demanding deployments.
Installation efficiency is a key factor when scaling production. SMB cable connector and SMB RF connector are favored for quick push-on coupling installation, which reduces labor time and assembly cost in mass production. These connectors excel in applications requiring frequent mating cycles while maintaining solid RF performance. ZOMWAVE’s SMB cable connector and SMB RF connector solutions feature excellent vibration resistance and consistent impedance matching, effectively solving signal integrity challenges in compact spaces. Our engineered approach helps customers balance speed, space and durability requirements with custom configurations and volume production capacity, all manufactured to international quality standards for reliable performance across telecommunications and industrial applications.
Analyzing Key Differences: Design and Performance
1. Mechanical Design and Durability
SMB female connector delivers quick-lock snap-on coupling for rapid installations where frequent disconnection cycles are required. While SMA connectors offer superior vibration resistance via threaded coupling for harsh industrial or aerospace environments, our SMB female variant prioritizes operational efficiency without compromising reliable 50Ω termination. Engineered for applications valuing speed over extreme mechanical stability.
2. Frequency and Power Handling
SMA supports frequencies up to 18 GHz, ideal for high-precision scenarios like 5G base stations or radar systems. SMB, rated for 4 GHz, suits cost-sensitive projects such as automotive sensors or IoT devices. SMA’s brass construction also handles higher power levels (500W peak) versus SMB’s 250W capacity.
3. SMB Form Factors For Tight RF Routing
| Form Factor | Best Use | Main Benefit | Tradeoff |
|---|---|---|---|
| smb right angle connector | Tight enclosures and cable exits | Saves routing space | Less convenient in some panel layouts |
| smb plug connector | Cable-side terminations | Faster assembly | Needs the matching jack side |
| smb bulkhead connectors | Panel mount interfaces | Cleaner chassis mounting | Uses more panel space |
Application Scenarios: Matching Connectors to Needs
Choose SMA connectors if:
- Operating above 4 GHz (e.g., satellite communications)
- Harsh environments demand vibration resistance
- Long-term reliability is non-negotiable
Opt for SMB jack connectors when:
- Space constraints prioritize compact designs
- Rapid assembly reduces labor costs
- Budget limitations exist for medium-frequency projects

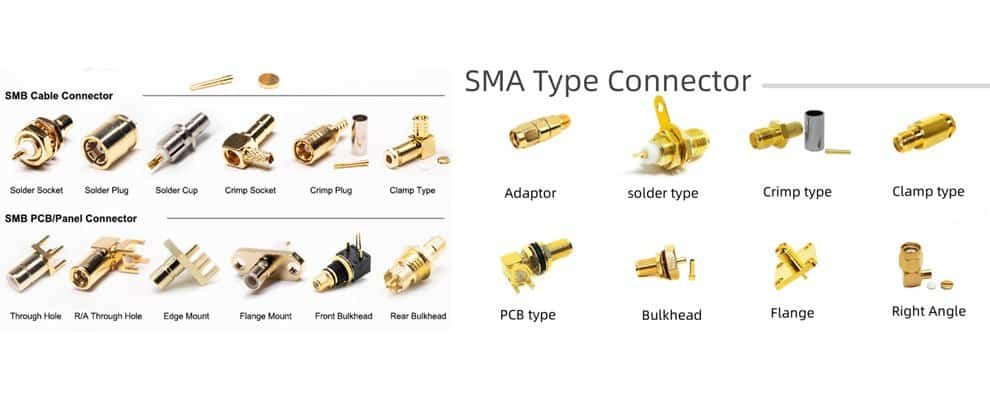

Key Differences: SMA vs. SMB Connector
| Aspect | SMA Connector | SMB Connector | Practical Difference |
|---|---|---|---|
| Full Name | SubMiniature version A | SubMiniature version B | Both are miniature coaxial RF connectors, but they belong to different interface families. |
| Typical Size | Smaller and more compact | Slightly larger than SMA | SMA is usually chosen when space is tight. |
| Coupling Style | Threaded coupling | Snap-on / push-on coupling | SMA offers a tighter mechanical lock; SMB is faster to connect and disconnect. |
| Frequency Performance | Generally supports higher frequencies | Usually used at lower-to-mid RF frequencies | SMA is preferred for precision RF and microwave applications. |
| Mechanical Security | Very secure due to threaded design | Less secure under heavy vibration unless properly latched | SMA is better where stable long-term mating is important. |
| Installation Speed | Slower to attach because it must be threaded | Faster to install because it is push-fit | SMB is convenient for quick assembly and repeated testing. |
| Durability in Repeated Use | Good, but threads can wear over time if over-torqued | Good for frequent connection cycles | SMB often feels more convenient in test environments; SMA is better for robust fixed installations. |
| Common Use Cases | Antennas, RF modules, wireless equipment, lab instruments | Test equipment, compact devices, telecom modules | SMA is more common in high-frequency and precision setups; SMB is common where quick mating matters. |
| Impedance Options | Commonly 50 ohm, sometimes 75 ohm variants | Commonly 50 ohm, some 75 ohm variants | Both can be matched to system impedance, but 50 ohm is the most common choice. |
| Signal Integrity | Excellent for RF signal transmission | Good, but usually not the first choice for very high-frequency precision work | SMA is typically the safer option when signal quality is critical. |
| Mating Feel | Firm, deliberate, tool-free threading by hand | Quick and easy snap-in connection | SMA feels more “locked in”; SMB feels more “plug and play.” |
| Best Strength | Low loss, high-frequency reliability | Fast assembly, compact convenience | The best connector depends on whether performance or speed matters more. |
| Main Limitation | Slower to connect and can be over-tightened | Less mechanically secure in harsh environments | SMA is less convenient; SMB is less rugged in demanding RF assemblies. |
SMB vs SMA: Practical Frequency and Selection Guide
| Selection Factor | SMB | SMA | Practical Takeaway |
|---|---|---|---|
| Typical frequency range | about 4 GHz | up to 18 GHz | Choose SMA when frequency headroom matters |
| Coupling style | Snap-on / push-on | Threaded | Choose SMB for speed, SMA for retention |
| Installation speed | Faster | Slower | Choose SMB for high-volume assembly |
| Vibration resistance | Moderate | Stronger mechanical lock | Choose SMA for harsher environments |
| Power handling | 250W | 500W | Choose SMA for higher power margin |
