Introduction
In RF connectivity, selecting the right adapter ensures seamless performance and compatibility. An MMCX to SMA adapter, also known as an MMCX SMA adapter, is a vital component for linking micro-miniature coaxial (MMCX) and sub-miniature version A (SMA) connectors. This article compares various MMCX to SMA adapters, focusing on their specifications and costs, to assist B2B users in making informed purchasing decisions.
Main Body
Understanding MMCX and SMA Connectors
To appreciate MMCX to SMA adapters, it’s essential to understand the connectors they bridge.

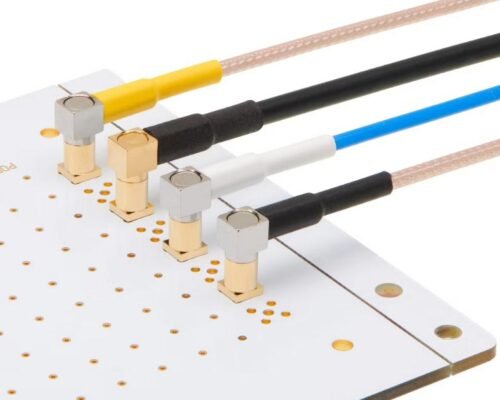

- The MMCX connector, including variants like MMCX connector female and MMCX male connector, is a compact coaxial RF solution designed for space-constrained applications. These mmcx connectors feature a reliable lock-snap mechanism supporting 360-degree rotation, commonly used in GPS modules, Wi-Fi cards, and IoT devices. ZOMWAVE mmcx connectors are engineered for stable performance up to 6 GHz, offering precise impedance matching and low VSWR to minimize signal loss. Their robust construction ensures excellent performance in high-vibration environments, solving critical challenges related to space limitations and connection reliability while reducing assembly time and long-term maintenance costs.
- SMA Connector: The SMA male connector or SMA plug is a robust, threaded connector used in RF systems up to 18 GHz. Variants like SMA female to female adapter highlight its versatility in diverse setups.

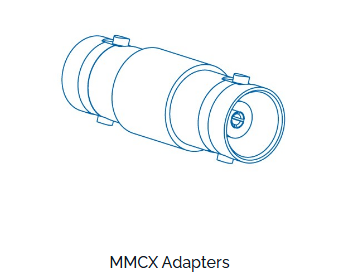

Types of MMCX to SMA Adapters
Several MMCX to SMA connector options cater to different needs:
- Straight Adapters: Simple MMCX male to SMA female adapter for direct connections.
- Right-Angle Adapters: Ideal for tight spaces, such as an MMCX jack to SMA female adapter.
- Bulkhead Adapters: Mountable options like adapter female MMCX SMA for enclosures.
- Pigtail Adapters: Flexible cables, e.g., RP SMA to MMCX adapter, reduce connector stress.
Key Specifications to Consider
When evaluating an SMA to MMCX adapter, focus on these specs:
- Frequency Range: Most coax connector adapters support up to 6 GHz, though some, like high-end SMA to MMCX adapters, reach 18 GHz.
- VSWR: A lower Voltage Standing Wave Ratio (e.g., <1.5) ensures better signal quality.
- Insertion Loss: Look for minimal loss in MMCX female to SMA male adapters.
- Durability: Rated for hundreds of mating cycles, depending on build quality.
- Material: Gold-plated brass or stainless steel enhances performance.
Cost Factors
Prices for MMCX to SMA adapters vary based on:
- Type: A basic SMA male adapter costs less than a pigtail MMCX to SMA connector.
- Specs: Higher frequency or premium materials increase costs.
- Brand: Reputable suppliers may charge more for reliability.
- Volume: Bulk orders often lower per-unit prices.
Typical costs range from $4 for a simple MMCX male to SMA female adapter to $20 for specialized models.
Comparing MMCX to SMA Adapter Options
Here’s a comparison of hypothetical adapters:
- Adapter X: Straight MMCX SMA adapter, 6 GHz, VSWR <1.3, brass body. Cost: $4.
- Adapter Y: Right-angle MMCX to SMA connector, 6 GHz, VSWR <1.5, stainless steel. Cost: $7.
- Adapter Z: Pigtail MMCX jack to SMA female adapter, 6 GHz, low-loss cable. Cost: $13.
- Adapter W: Bulkhead MMCX female to SMA male adapter, 18 GHz, premium build. Cost: $18.
Case Study: Optimizing a Wireless IoT Device
Consider a B2B scenario involving a wireless IoT sensor. The sensor uses an MMCX connector female for its antenna, while the gateway requires an SMA male connector. Space is limited, and the system operates at 5.8 GHz.
A right-angle MMCX to SMA adapter with a 6 GHz range and low VSWR (<1.4) was selected. Costing $7, it outperformed a $4 straight adapter in signal stability due to its flexibility and reduced connector strain. This choice saved the client from redesigning the sensor housing, showcasing how the right MMCX SMA adapter balances specs and cost.
Choosing the Right Adapter
To pick the best SMA to MMCX adapter:
- Application: Match the adapter to your setup (e.g., RP SMA to MMCX adapter for reverse polarity needs).
- Frequency: Ensure compatibility with your RF range.
- Budget: Weigh cost against performance needs.
Where to Source Adapters
- Online Retailers: Broad selection of coax connector adapters.
- RF Suppliers: Detailed specs from trusted vendors.
- Manufacturers: Bulk deals on MMCX to SMA adapters.
Conclusion
ZOMWAVE SMA mmcx adapter provides engineering and procurement teams with robust options to evaluate frequency performance, power handling, and mechanical durability. Our selection includes various mmcx to sma cable configurations, rp sma to mmcx adapter, and female mmcx sma models to meet diverse project requirements. These adapters ensure precise 50-ohm impedance matching, low VSWR, and minimal insertion loss for reliable signal transmission. Featuring gold-plated brass bodies and beryllium copper contacts, they deliver extended mating cycles, stable connectivity, and consistent performance. Available right-angle, pigtail, and bulkhead designs facilitate flexible installation and reduce cable strain. This approach simplifies inventory, cuts assembly time, and decreases field failures. ZOMWAVE supports with detailed specifications, cost analysis, rapid samples, and OEM customization to accelerate development and ensure supply chain efficiency.
