Introduction
SMA connector adapter sets are vital for seamless coaxial cable connections in RF applications. These sets, including options like SMA male female adapters and SMA RF connectors, ensure compatibility across various setups. Whether you’re enhancing an SMA connector antenna or linking an SMA plug to SMA jack, the right adapter set boosts performance. This article compares top SMA connector adapter sets, offering insights for informed decisions.
What Are SMA Connector Adapter Sets?
SMA (SubMiniature version A) connectors are small, high-frequency RF connectors used in industries like telecommunications and aerospace. SMA connector adapter sets include variations such as SMA male adapters, SMA jacks, and SMA to SMA bulkhead connectors. These sets bridge connector type SMA differences, enabling connections like SMA plug to SMA plug or SMA jack to plug. Their precision and durability make them ideal for coax applications up to 18 GHz.
Why Use SMA Adapter Sets?
Versatility: Adapts SMA connectors to diverse coaxial setups.
Reliability: Ensures minimal signal loss in RF systems.
Compatibility: Links SMA RF connectors with other types seamlessly.
Key Features to Evaluate
Choosing the right SMA connector adapter set requires focusing on these specifications:
Frequency Range: Look for sets supporting DC to 18 GHz for broad applicability.
Impedance: Standard 50-ohm impedance is critical for coax compatibility.
Durability: Opt for materials like brass or stainless steel for long-term use.
VSWR: Aim for a VSWR below 1.5 to minimize signal reflection.
Adapter Variety: Sets should include SMA male female adapters, SMA plugs, and bulkhead options.
Top SMA Connector Adapter Sets Reviewed
Here’s a look at leading options for B2B users:
1. Amphenol SMA Connector Adapter Set
Frequency: DC to 18 GHz
VSWR: 1.15
Material: Gold-plated brass
Adapters: SMA male adapter, SMA jack, SMA to SMA bulkhead
Use Case: A telecom firm upgraded its RF testing lab with this set, connecting SMA connector antennas effortlessly.
2. TE Connectivity SMA Adapter Kit
Frequency: DC to 12.4 GHz
VSWR: 1.25
Material: Nickel-plated brass
Adapters: SMA plug to SMA jack, SMA male female adapter
Use Case: An electronics manufacturer used this for prototyping, linking SMA RF connectors with ease.
3. Molex SMA RF Adapter Set
Frequency: DC to 18 GHz
VSWR: 1.20
Material: Stainless steel
Adapters: SMA plug to SMA plug, SMA jack to plug
Use Case: A defense contractor relied on this set’s durability for field-deployed coax systems.

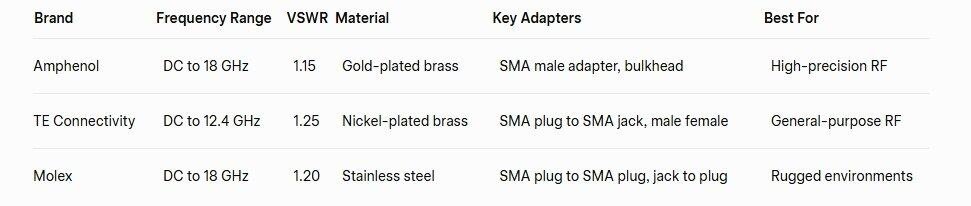

Comparison Table
How to Choose the Right SMA Connector Adapter Set
Define Your Needs: High-frequency projects need sets like Amphenol’s, while general use suits TE Connectivity.
Check Compatibility: Ensure the set includes connector type SMA options your coax requires.
Evaluate Durability: For harsh conditions, prioritize Molex’s stainless steel build.
Test in Context: A case study showed a lab saving 20% time by using an SMA to SMA bulkhead adapter for quick swaps.
Common Mistakes to Avoid
Ignoring VSWR: High VSWR can degrade signal quality.
Overlooking Adapters: Missing an SMA male female adapter can halt your setup.
Neglecting Material: Cheap materials fail faster in demanding RF environments.
Conclusion
SMA connector adapter sets are indispensable for RF applications, from SMA connector antennas to SMA RF connectors. Amphenol excels in precision, TE Connectivity offers versatility, and Molex ensures durability. Assess your frequency needs, adapter types, and environment to pick the best set. Ready to optimize your coax connections? Contact us for tailored solutions and inquiries.
