SMA Female Field Replaceable, 2 hole Flange, Accepts 0.51mm Diameter Pin, 6GHZ

Click to enlarge

SMA Female Field Replaceable, 2 hole Flange, Accepts 0.51mm Diameter Pin, 6GHZ

$3.33

5 Days Ship Out. Negotiated Prcie. ZOMWAVESMA Female Field Replaceable Connector, 2 hole Flange, Accepts 0.51mm Diameter Pin as an interface type of thru hole and a 50 Ohm impedance. SMA female connector uses shield/contact solder as an attachment method. Our female SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 6GHz. ZOMWAVE SMA female pcb connector has a PTFE dielectric type and a VSWR of 1.25. ZOMWAVE SMA Female Field Replaceable Connector, 2 hole Flange, Accepts 0.51mm Diameter Pin has a brass body with gold plating. Our SMA connector uses beryllium copper contact. This SMA female pcb RF connector is RoHS and REACH compliant. Our SMA female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. compatible only with the 2.4mm interface. Zomwave supplies SMA Female Straight Thru Hole PCB Connector.

Quantity	Price	Discount
1-9	$3.33	0%
10-49	$3.20	4%
50-99	$3.06	8%
100+	$2.80	16%

200+ Call US

Get a lower discount price

SKU: P/N:MAJS-FLTT-PTLK-95

Key specifications

Configuration
Connector Series	SMA
Connector Gender	Female
Connector Angle	Straight
Connector Mount Method	4 Hole Flange
Attachment Method	Solder
Interface Type	Stub Terminal
Material
Centre Contact	phosphorus-copper, gold plated
Body	Brass, gold plated
Insulators	PTFE
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	6GHZ
VSWR	≤1.25:1 (DC 0~6GHz)
Insertion Loss	0.05 xSqt.(f_Ghz)
Voltage Rating	150 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

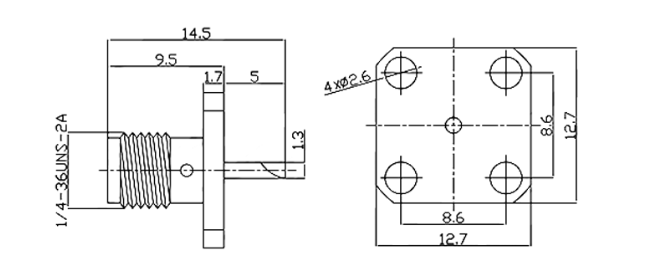

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
