When setting up an RF system, choosing the correct connector is vital for performance and reliability. If you’re asking, “Which TNC male fits RG174 Sky Window coax?” this article is for you. The TNC male for RG174 Sky Window type is a critical component for ensuring a secure and efficient connection in your coaxial setup. Here, we’ll explore the issue, analyze compatibility factors, and provide a clear solution to help you select the best TNC male connector for your RG174 Sky Window coaxial cable.
What Are TNC Male Connectors and RG174 Sky Window Coax?
To start, let’s break down the basics:
- TNC Male Connectors: These are threaded RF connectors used in applications like antennas, Wi-Fi, and GPS systems. The “male” part refers to the pin and threaded barrel that mates with a female connector. They’re valued for their durability and high-frequency performance.
- RG174 Sky Window Coax: RG174 is a thin, flexible coaxial cable with a 2.5mm diameter, ideal for compact setups. The “Sky Window” likely indicates a specialized version, possibly with a unique jacket or branding, often used in RF communications.
Matching the right TNC male for RG174 Sky Window type ensures signal integrity and avoids connectivity issues.
Why Compatibility Matters
Using the wrong connector can lead to signal loss, poor performance, or even equipment damage. Let’s analyze the key factors to consider when pairing a TNC male connector with RG174 Sky Window coax:
Cable Specifications
RG174 has a small diameter (2.5mm) and typically a 50-ohm impedance. The TNC male must fit this size and match the impedance for optimal results.
Connector Types
TNC male connectors come in variations like:
- Crimp: Fastened by crimping the cable’s shield.
- Solder: Attached by soldering the center conductor.
- Right-Angle: Bent at 90 degrees for tight spaces.
Each type affects how it pairs with RG174 Sky Window coax.
Frequency and Build
TNC connectors support up to 11 GHz, suitable for most RG174 applications. High-quality materials (e.g., brass or nickel-plated) enhance durability.
The goal is to find a TNC male connector for RG174 Sky Window that aligns with these specs.
Exploring TNC Male Options for RG174 Sky Window Coax
TNC Male Crimp Connector
- Features: Nickel-plated brass body, gold-plated pin, designed for RG174.
- Fit: Matches the 2.5mm diameter and 50-ohm impedance of RG174 Sky Window coax.
- Pros: Quick to install with a crimping tool, reliable for RF setups.
- Use Case: Ideal for antenna or GPS systems needing a TNC male for RG174 Sky Window type.

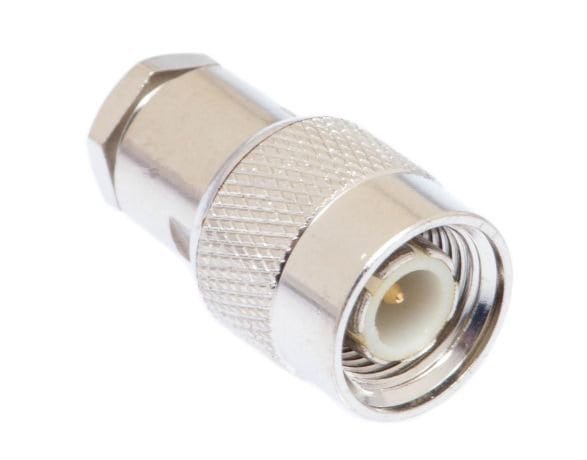

TNC Male Solder Connector
- Features: Solderable center pin, crimpable shield, RG174-compatible.
- Fit: Ensures a strong electrical and mechanical bond with RG174 Sky Window cable.
- Pros: Offers excellent signal integrity for high-frequency needs.
- Use Case: Perfect for custom RF projects requiring precision.
TNC Male Right-Angle Connector
- Features: 90-degree design, available in crimp or solder styles for RG174.
- Fit: Adapts to the RG174 Sky Window coax in confined spaces.
- Pros: Saves space while maintaining performance.
- Use Case: Great for tight installations like mobile devices or enclosures.
These options cater to different needs, making them top choices for a TNC male connector compatible with RG174 Sky Window.
How to Choose and Install
Selection Tips
- Application: Choose crimp for speed, solder for strength, or right-angle for space constraints.
- Quality: Opt for reputable brands with RG174 compatibility.
- Specs: Confirm 50-ohm impedance and frequency support.
Installation Steps
- Prep the Cable: Strip the RG174 Sky Window coax to expose the conductor, dielectric, and shield.
- Attach the Connector: Crimp or solder per the connector’s instructions, using proper tools.
- Test: Check continuity and signal strength post-installation.
Proper setup ensures your TNC male for RG174 Sky Window type performs flawlessly.
Conclusion
Finding the right TNC male connector for RG174 Sky Window coax need not be complicated. By focusing on cable specs, connector types, installation practice and tool compatibility, you can select a TNC male for RG174 Sky Window type that fits size, impedance and frequency needs. Whether crimp, solder or right angle, each tnc connector types option speeds assembly, improves shielding and strain relief, lowers return loss, simplifies testing and reduces field maintenance and project rollout risk for commercial RF systems. It supports IP sealing, batch QA and faster procurements.
