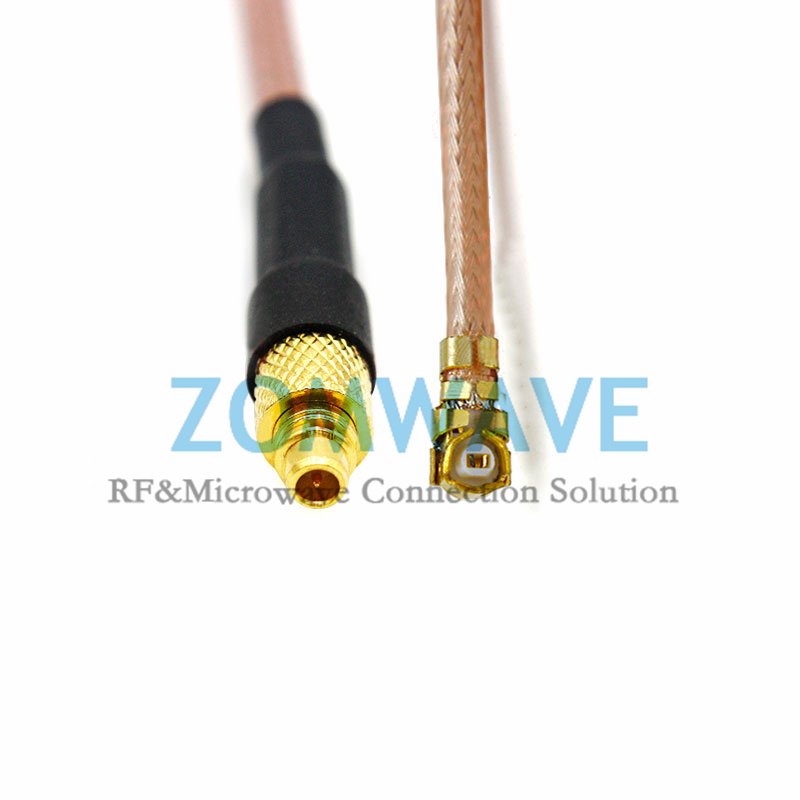

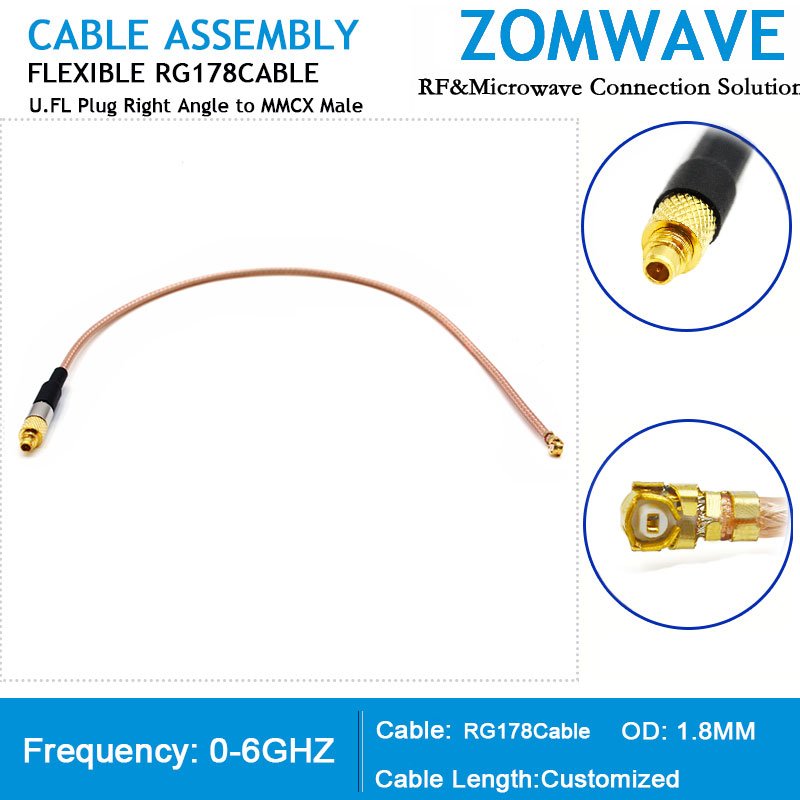

U.FL Plug Right Angle to MMCX Male, RG178 Cable, 6GHz
U.FL Plug Right Angle to MMCX Male, RG178 Cable, 6GHz
Click to enlarge
U.FL Plug Right Angle to MMCX Male, RG178 Cable, 6GHz
U.FL Plug Right Angle to MMCX Male, RG178 Cable, 6GHz

U.FL Plug Right Angle to MMCX Male, RG178 Cable, 6GHz

$4.42 – $5.31

ZOMWAVE offers high-quality, flexible coaxial cable assemblies with no minimum order quantity and a fast 5-day shipping time. Our U.FL Plug Right Angle to MMCX Male, RG178 Cable assembly is made with RG178 coax, a 50 Ohm cable featuring a PTFE dielectric. Constructed with a 0.072-inch FEP jacket, the assembly is designed to ensure durability and reliability. ZOMWAVE’s RG178 coaxial cables are part of over 40,000 RF, microwave, and millimeter wave components, making them suitable for a wide range of industries including automobiles, broadband, Industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, and 5G wireless applications.This cable assembly features a silver-plated copper-clad steel center conductor and a low-loss PTFE dielectric. With a tin-overcoated copper shield braiding, it minimizes signal leakage and ensures high-quality signal transmission. The connectors feature brass, nickel-plated coupling nuts and gold-plated connector bodies, offering a reliable connection for your systems. The Flexible RG178 Cables come in a variety of lengths to meet your needs. Additionally, custom MMCX cable assemblies can be manufactured upon request, with prompt shipping within 5 days.

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1U.FL
Connector Gender 1Plug
Connector Angle 1Right Angle
Connector Mount Method1None
Body Materials and Plating 1Copper Alloy, Gold Plated
Connector Series 2MMCX
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Brass, Nickel Plated
Cable Type RG178
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.50:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 30 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)1.83±0.05
Min. Bending Radius(mm)10
Shielding Effect(dB)>80
Weight(kg/km)8 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.10.58
0.41.05
0.91.58
11.68
1.82.24
2.42.59
32.91
53.76
64.13
