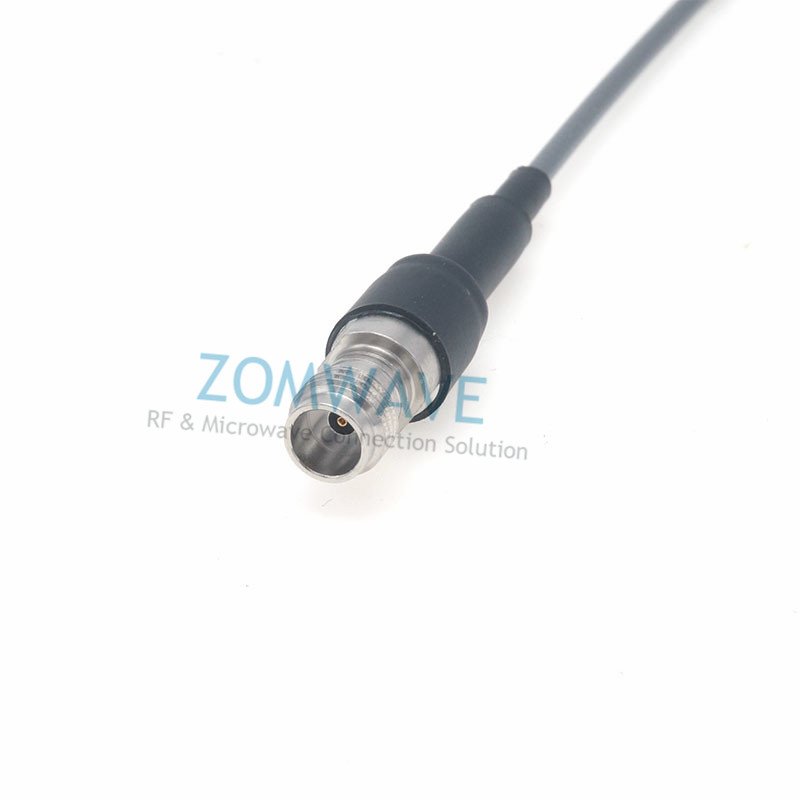

1.85mm Female to 1.85mm Female Flexible ZCXN 3506 Cable,67GHz
1.85mm Female to 1.85mm Female Flexible ZCXN 3506 Cable,67GHz
Click to enlarge
1.85mm Female to 1.85mm Female Flexible ZCXN 3506 Cable,67GHz

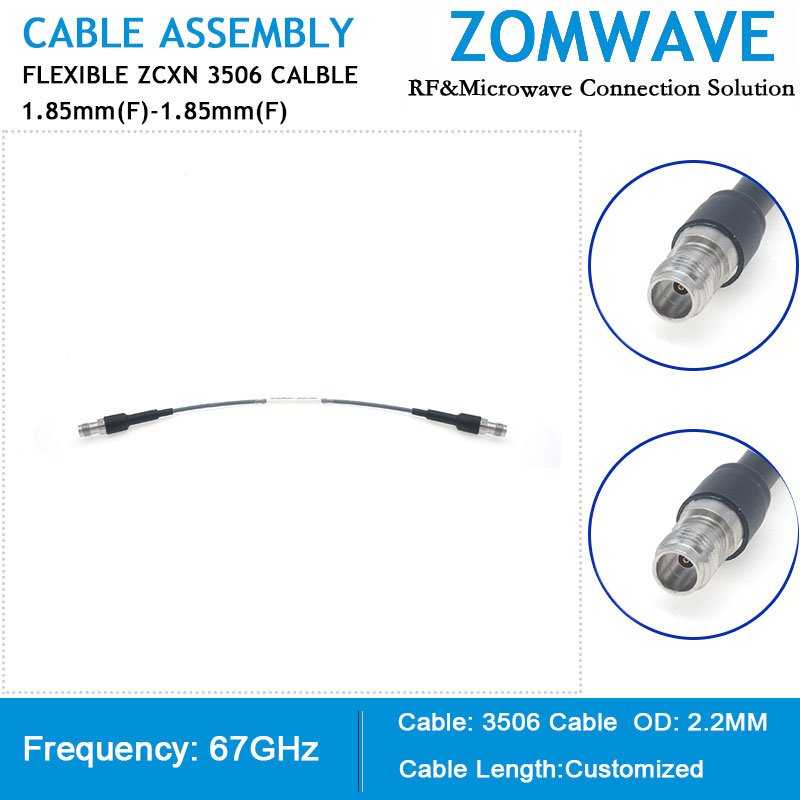

1.85mm Female to 1.85mm Female Flexible ZCXN 3506 Cable,67GHz

1.85mm Female to 1.85mm Female Flexible ZCXN 3506 Cable,67GHz

$144.13 – $220.33

RF coaxial cables 1.85mm male to 1.85mm male ZCXN 3506 cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are used for high-quality applications, such as laboratory radio frequency testing and measurement. They are sturdy and durable. They are designed for aerospace, radar, microwave, test system, etc. 1.85mm male to 1.85mm male cable assembly is constructed with ZCXN 3506, which is a flexible type of coaxial cable with high phase and amplitude stability. The flexible 1.85 mm cable assembly is manufactured with 1.85 mm Stainless Steel connectors, with 50 ohm impedance and triple shielding coaxial cable. ZOMWAVE is the place to buy high-quality 1.85mm male to 1.85mm male cable assemblies, which can be shipped quickly worldwide. Variations of 1.85 mm cable assemblies can also be manufactured and will be shipped within 5 days.



Quantity Price Discount
1-9 $144.13 0%
10-49 $138.36 4%
50-99 $132.60 8%
100+ $121.07 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 11.85mm
Connector Gender 1Female
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Stainless Steel, Passivated
Connector Series 2185mm
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Stainless Steel, Passivated
Cable TypeZCXN3506
Electric Specifications
Impedance50 ohm
Frequency Range(From DC)67GHz
VSWR≤1.40:1 (DC 0~67GHz)
Insertion LossDepends on cable length
Mechanical Phase<±10°@67GHz
Amplitude Stability<±0.15dB@67GHz
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +80°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketFEP
Jacket Diameter(mm)2.20±0.10
Min. Bending Radius(mm)11
Shielding Effect(dB)>90
Weight(kg/km)20 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.44
10.63
20.90
31.11
51.45
61.60
102.10
182.88
203.05
26.53.56
404.48
505.09
606.02

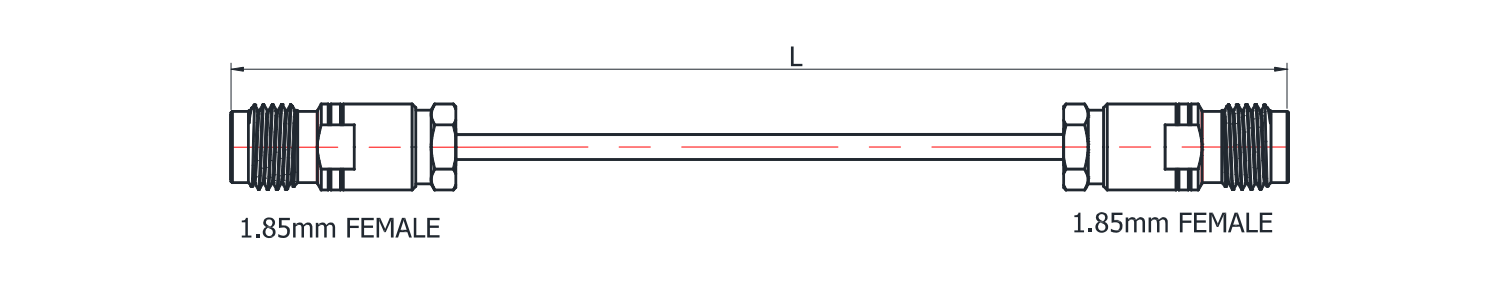

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
