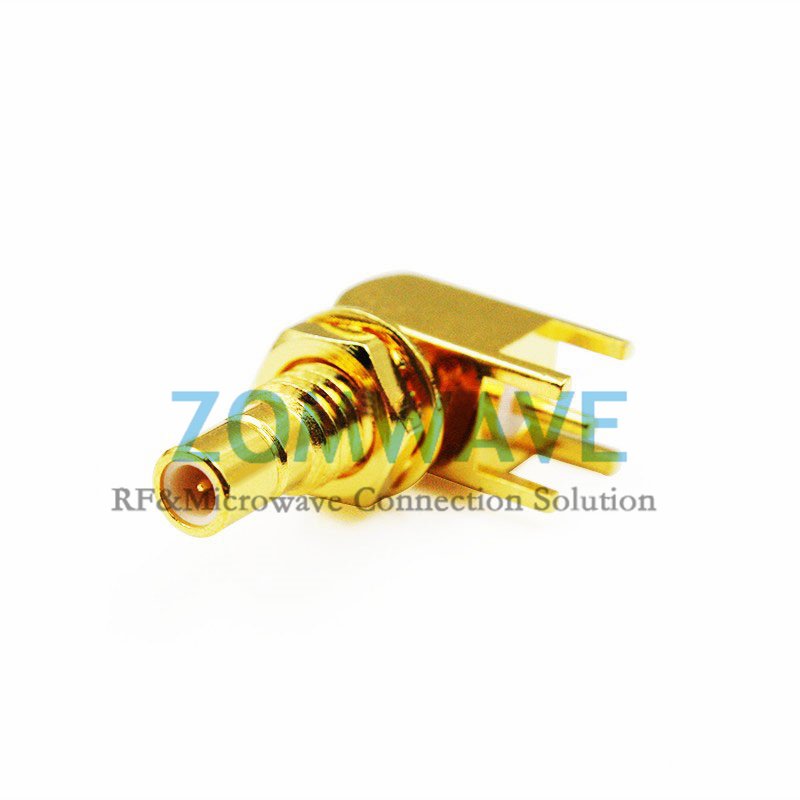

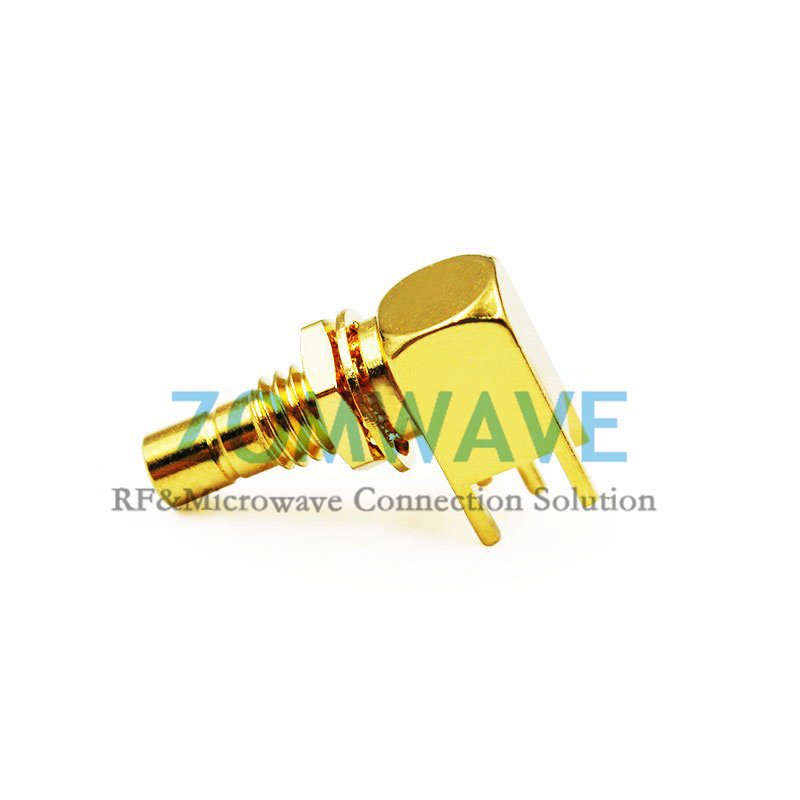

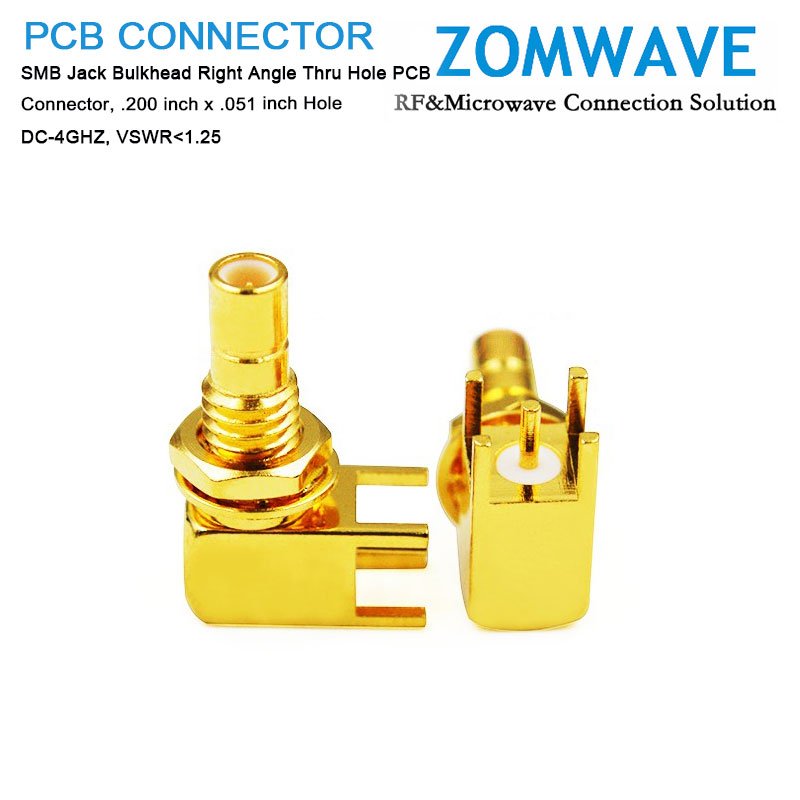

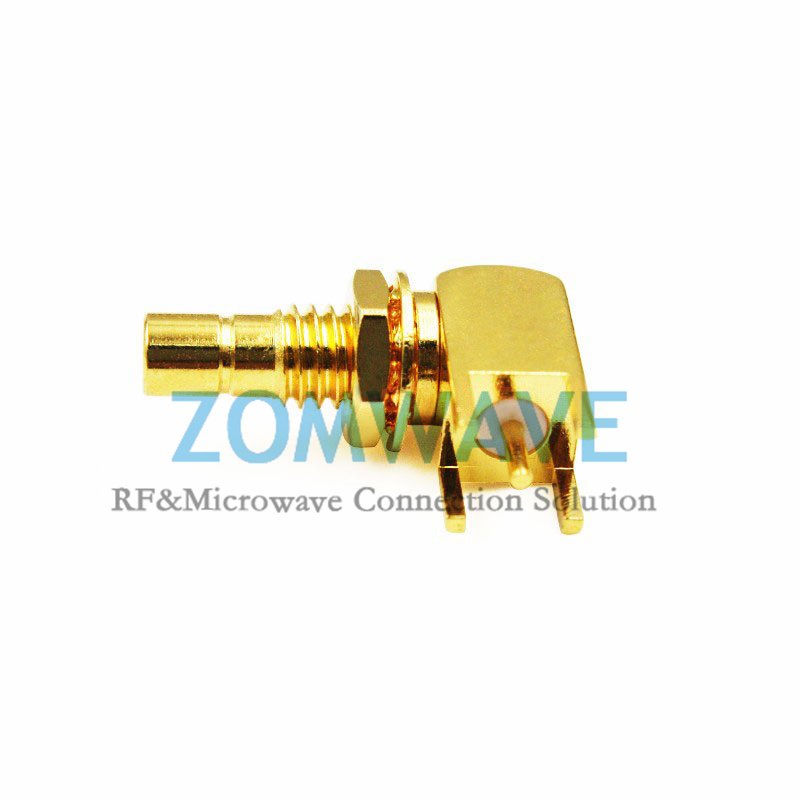

SMB Jack Bulkhead RA Thru Hole PCB Connector, .200 inch x .051 inch Hole,4GHZ
SMB Jack Bulkhead RA Thru Hole PCB Connector, .200 inch x .051 inch Hole,4GHZ
SMB Jack Bulkhead RA Thru Hole PCB Connector, .200 inch x .051 inch Hole,4GHZ
SMB Jack Bulkhead RA Thru Hole PCB Connector, .200 inch x .051 inch Hole,4GHZ

SMB Jack Bulkhead RA Thru Hole PCB Connector, .200 inch x .051 inch Hole,4GHZ

$3.33

5 Days Ship Out. Negotiated Prcie. ZOMWAVE SMB Jack Bulkhead Right Angle Thru Hole PCB Connector, .200 inch x .051 inch Hole connector has an interface type of thru hole and a 50 Ohm impedance. SMB Jack connector uses shield/contact solder as an attachment method. Our male SMB pcb connector provides a minimum frequency of DC and a maximum frequency of 4 GHz. ZOMWAVE SMB Jack pcb connector has a PTFE dielectric type and a VSWR of 1.25. ZOMWAVE SMB Jack Bulkhead Right Angle Thru Hole PCB Connector, .200 inch x .051 inch Hole connector has a brass body with gold plating. Our SMB connector uses beryllium copper contact. This SMB male pcb RF connector is RoHS and REACH compliant. Our SMB Jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment

Quantity Price Discount
1-9 $3.33 0%
10-49 $3.20 4%
50-99 $3.06 8%
100+ $2.80 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MBJR-NMSS-PTHT-98
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series SMB
Connector Gender Jack
Connector AngleRight Angle
Connector Mount MethodBulkhead
Attachment MethodSolder
Interface TypeThru Hole
Material
Centre ContactBrass, gold plated
BodyBrass, gold plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)4GHZ
VSWR≤1.25:1 (DC 0~4GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

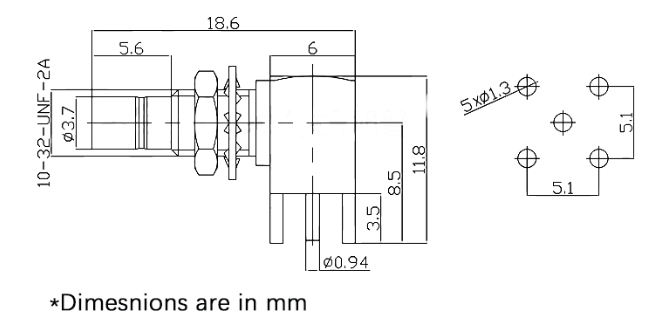

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
