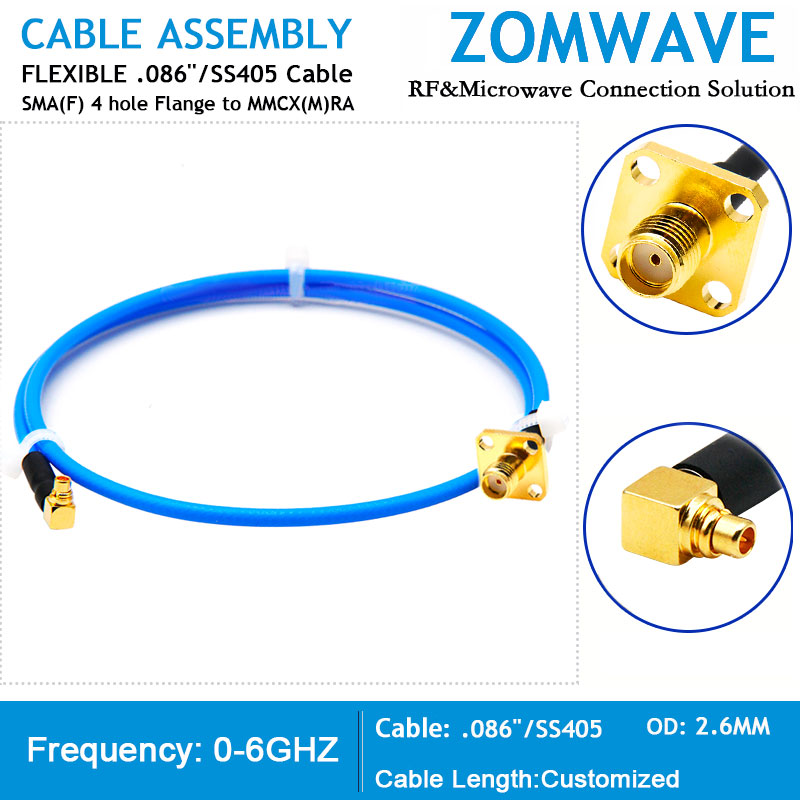

SMA Female 4 hole Flange to MMCX Male Right Angle,Flexible .086''_SS405, 18GHZ
SMA Female 4 hole Flange to MMCX Male Right Angle,Flexible .086''_SS405, 18GHZ
Click to enlarge

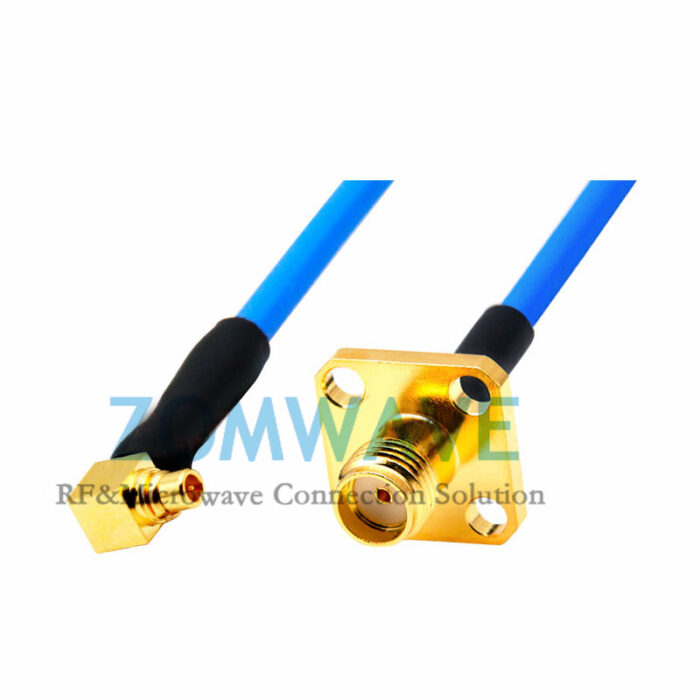

SMA Female 4 hole Flange to MMCX Male Right Angle,Flexible .086''_SS405, 18GHZ
SMA Female 4 hole Flange to MMCX Male Right Angle,Flexible .086''_SS405, 18GHZ

SMA Female 4 hole Flange to MMCX Male Right Angle,Flexible .086”_SS405, 18GHZ

Price range: $12.35 through $22.41

High-performance mmcx to sma connector cable assemblies featuring an SMA female four-hole flange to MMCX male right-angle interface, built on flexible 0.086 inch SS405 coaxial cable. This reliable sma to mmcx cable solution utilizes solid copper center conductor, PTFE insulation, and silver-plated dual shielding for superior insertion loss, exceptional shielding effectiveness and enhanced flexibility. Designed for automotive, broadband, Industry 4.0, instrumentation, medical, military, and 5G wireless applications, these mmcx sma cable assemblies solve critical space constraints in compact designs while maintaining signal integrity in high-vibration environments and minimizing passive intermodulation distortion. ZOMWAVE delivers premium SMA to MMCX assemblies with rapid worldwide shipment, including custom variations of mmcx sma connector assemblies that address specific phase matching requirements and impedance stability needs while offering extended frequency operation up to 18GHz for advanced RF systems. All custom configurations maintain the same rigorous performance standards and ship within five business days to support accelerated project timelines and reduce total cost of ownership through improved durability and ease of integration.

Quantity Price Discount
1-9 $12.35 0%
10-49 $11.86 4%
50-99 $11.36 8%
100+ $10.37 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1SMA
Connector Gender 1Female
Connector Angle 1Straight
Connector Mount Method14-hole Flange
Body Materials and Plating 1Brass, Gold Plated
Connector Series 2MMCX
Connector Gender 2Male
Connector Angle 2Right Angle
Connector Mount Method 2None
Body Materials and Plating 2Brass, Gold Plated
Cable TypeFlexible .086''/ SS405
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.25:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)2.60±0.05
Min. Bending Radius(mm)10
Shielding Effect(dB)>90
Weight(kg/km)18 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.44
10.66
20.97
31.23
51.64
61.82
82.14
102.43
153.06
183.39

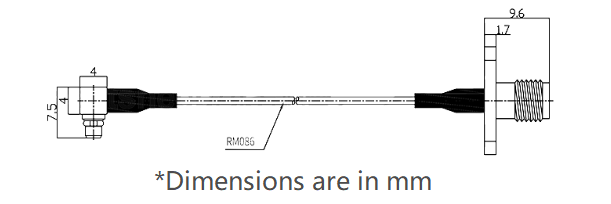

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
