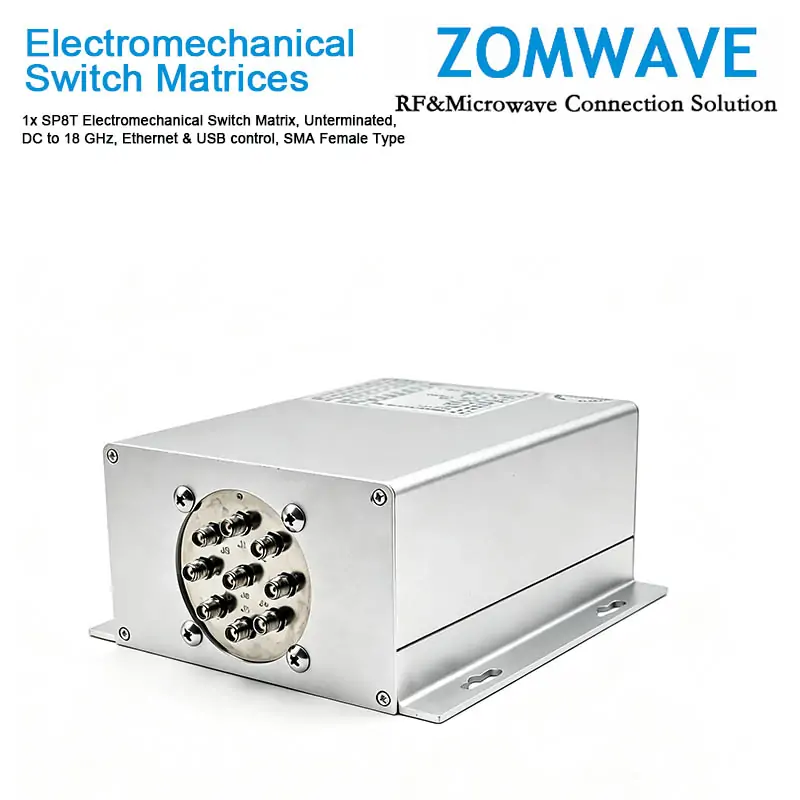

1x SP8T Electromechanical Switch Box, Unterminated,DC to 18 GHz, Ethernet & USB control, SMA Female Type

$1,445.00

The SBS-1P08T-MA18G-UE-01 is a switch box consisting of Single Pole Eight Throw (1x SP8T) electromechanical relays, designed for a wide frequency range from DC to 18 GHz. It handles up to 80 W of average power and operates on a break-before-make basis. Rated for 2.5 million switching cycles, this switch features a latching actuator that maintains its position without a constant voltage supply. It delivers exceptional RF performance, with a typical insertion loss of 0.5 dB and isolation greater than 60 dB.

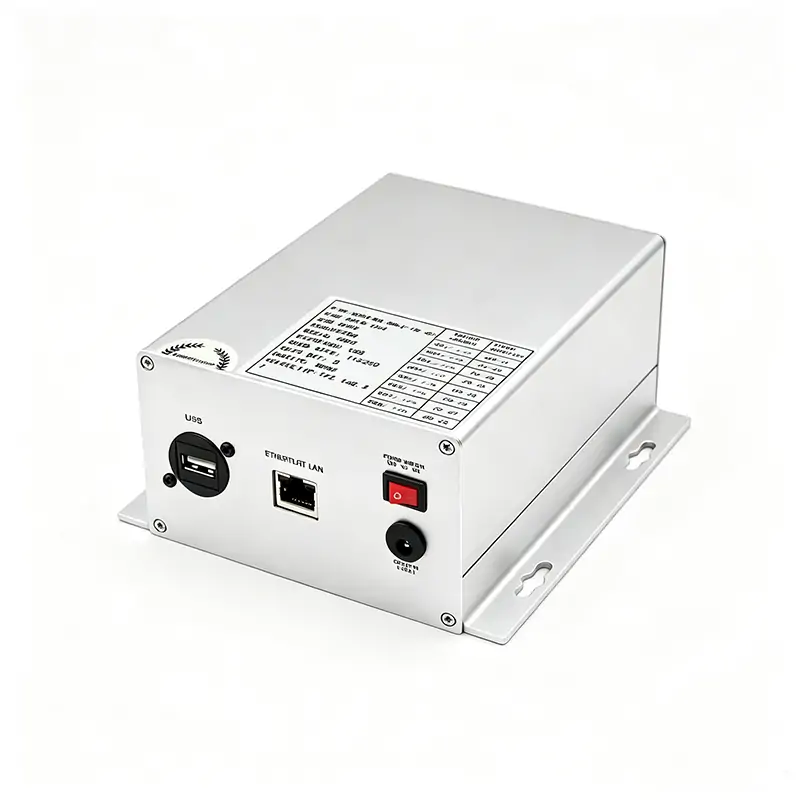

The switch requires an DC 12V power input and operates within a temperature range of -25°C to +65°C. The switch matrix is constructed in a compact, rugged metal case with all SMA (f) RF connectors on the front panel.

Quantity Price Discount
1-9 $1,445.00 0%
10-49 $1,387.20 4%
50-99 $1,329.40 8%
100+ $1,242.70 14%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:SBS-1P08T-MA18G-UE-01

Key Specifications

Configuration
Switch Design1x SP8T
Input Ports1
Output Ports8
Switch TypeUnterminated
Actuator TypeLatching
Command ControlUSB & Ethernet
Connector Series SMA
Connector GenderFemale
Operating Voltage12VDC
Electric Specifications
Frequency Range(From DC)18GHz
VSWR≤1.50:1
Insertion Loss<0.5dB
Isolation>60dB
Input Power, CW 80 Watts @25°C
Mechanical Characteristics
Mating Cycles≥ 2,000,000 cycles
Switching Time<15ms
Environmental Characteristics (RoHS Complliant)
Temperature Rating-25°C ~ +65°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.



Catalog Products

                   PNFrequency(GHz)ConfigurationImpedance
(ohm)
ConnectorsControlRemark
LowHighInput PortsOutput Ports
 SML-2P12T-MK40G-UE-01DC40212502.92mmUSB & Ethernet2x SP6T
SML-1P08T-MA06G-UE-01DC61850SMAUSB & Ethernet1x SP8T
SML-1P08T-MK26G-UE-01DC26.518502.92mmUSB & Ethernet1x SP8T
SML-2P16T-MK26G-UE-01DC26.5216502.92mmUSB & Ethernet2x SP8T
SML-2P16T-MK40G-UE-01DC40216502.92mmUSB & Ethernet2x SP8T
SML-3P12T-MK40G-UE-01DC40312502.92mmUSB & Ethernet3x SP4T
SMS-4P16T-MK18G-UE-01DC1841650SMAUSB & Ethernet4x SP4T
 SML-2P12T-P250G-UE-01DC50212502.4mmUSB & Ethernet2x SP6T
 SML-2P12T-P254G-UE-01DC54212502.4mmUSB & Ethernet2x SP6T
 SML-2P12T-VC67G-UE-01DC67212501.85mmUSB & Ethernet2x SP6T
SML-3P12T-P250G-UE-01DC50312502.4mmUSB & Ethernet3x SP4T
SML-3P12T-P254G-UE-01DC54312502.4mmUSB & Ethernet3x SP4T
SMS-4P16T-P250G-UE-01DC50416502.4mmUSB & Ethernet4x SP4T
SMS-4P16T-P254G-UE-01DC54416502.4mmUSB & Ethernet4x SP4T
SMS-4P16T-VC67G-UE-01DC67416501.85mmUSB & Ethernet4x SP4T
SML-2P06T-MK26G-UE-01DC26.526502.92mmUSB & Ethernet2x SP3T
SML-2P06T-MK40G-UE-01DC4026502.92mmUSB & Ethernet2x SP3T
SML-2P06T-P250G--UE-01DC5026502.4mmUSB & Ethernet2x SP3T
SML-2P06T-P254G-UE-01DC5426502.4mmUSB & Ethernet2x SP3T
SML-2P06T-VC67G-UE-01DC6726501.85mmUSB & Ethernet2x SP3T
SML-2P08T-MA06G-UE-01DC62850SMAUSB & Ethernet2x SP4T
SML-2P08T-MA18G-UE-01DC182850SMAUSB & Ethernet2x SP4T
SML-2P08T-MA20G-UE-01DC202850SMAUSB & Ethernet2x SP4T
SML-2P08T-MK26G-UE-01DC26.528502.92mmUSB & Ethernet2x SP4T
SML-2P08T-MK40G-UE-01DC4028502.92mmUSB & Ethernet2x SP4T
SML-2P08T-P250G-UE-01DC5028502.4mmUSB & Ethernet2x SP4T
SML-2P08T-P256G-UE-01DC5628502.4mmUSB & Ethernet2x SP4T
SML-2P08T-VC67G-UE-01DC6728501.85mmUSB & Ethernet2x SP4T
SML-2P10T-MA06G-UE-01DC621050SMAUSB & Ethernet2x SP5T
SML-2P10T-MA18G-UE-01DC1821050SMAUSB & Ethernet2x SP5T
SML-2P10T-MA20G-UE-01DC2021050SMAUSB & Ethernet2x SP5T
SML-2P10T-MK26G-UE-01DC26.5210502.92mmUSB & Ethernet2x SP5T
SML-2P10T-MK40G-UE-01DC40210502.92mmUSB & Ethernet2x SP5T
SML-2P10T-P250G-UE-01DC50210502.4mmUSB & Ethernet2x SP5T
SML-2P10T-P256G-UE-01DC56210502.4mmUSB & Ethernet2x SP5T
SML-2P10T-VC67G-UE-01DC67210501.85mmUSB & Ethernet2x SP5T
SML-3P12T-VC67G-UE-01DC67312501.85mmUSB & Ethernet3x SP4T
SML-4P32T-MK26G-UE-01DC26.5432502.92mmUSB & Ethernet4x SP8T

For additional customization requirements or configuration assistance, please contact us via email:[email protected]
