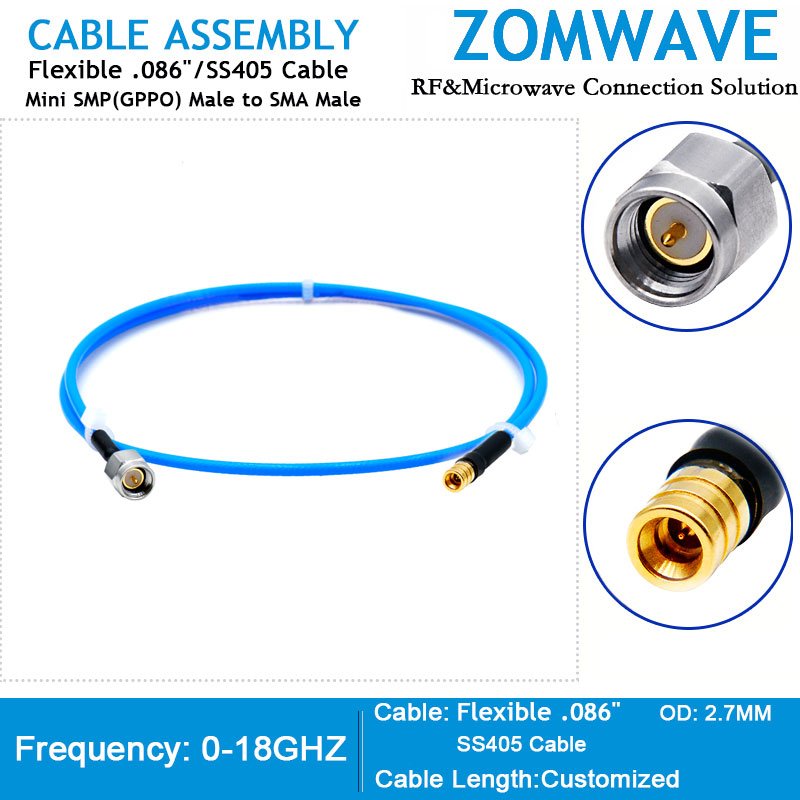

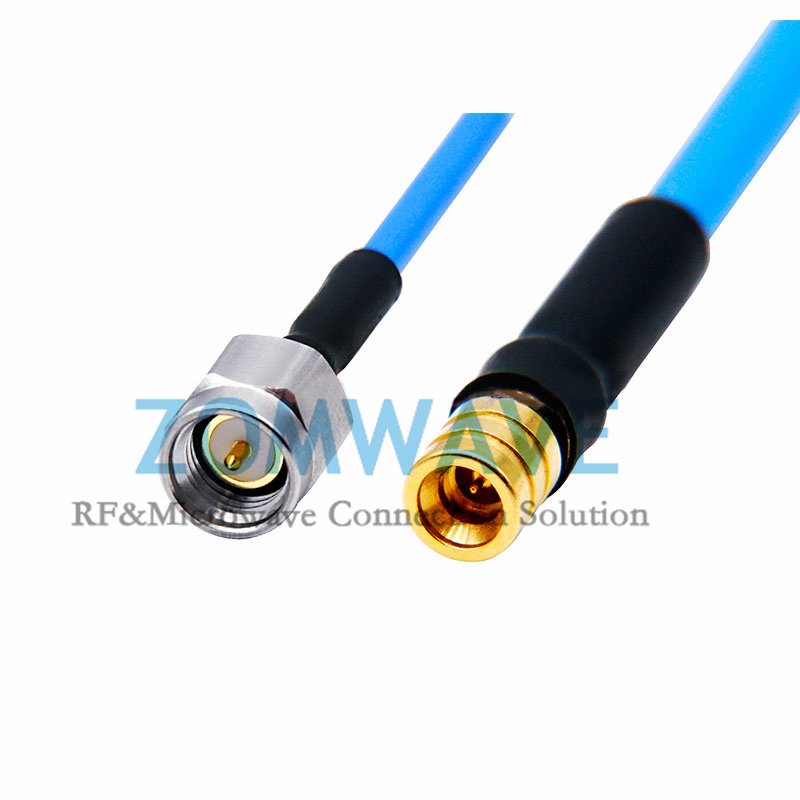

Mini SMP(GPPO) Male to SMA Male, Flexible .086”_SS405 Cable, 18GHz

Price range: $24.21 through $31.83

No MOQ, 5-day shipping out, 100% fully tested to ensure high quality. Mini SMP(GPPO) Male to SMA Male, Flexible .086”/SS405 Cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimetre wave interconnect solutions. As a key option for mini smp to SMA cable needs, this assembly combines a gold-plated beryllium copper Mini SMP(GPPO) connector with a nickel-plated brass SMA connector on a flexible SS405 coaxial cable featuring a solid silver-plated copper centre conductor, PTFE dielectric, and dual-layer silver-plated copper shielding. This structure delivers excellent insertion loss, >90 dB shielding effectiveness, and a tight 10 mm minimum bend radius for reliable routing in dense system layouts. Rated up to 18 GHz with VSWR ≤1.30:1, the assembly meets MIL-STD environmental standards for vibration, thermal shock, and humidity, helping engineers reduce signal interference, simplify installation in confined spaces, and maintain test repeatability across more than 500 mating cycles. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, and 5G wireless applications. Variations of mini smp (gppo）cable assemblies can also be manufactured and will be shipped within 5 days.
Quantity Price Discount
1-9 $24.21 0%
10-49 $23.24 4%
50-99 $22.27 8%
100+ $20.34 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1Mini SMP（GPPO)
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1BeCu, Gold Plated
Connector Series 2SMA
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Brass, Nickel Plated
Cable TypeFlexible .086''/ SS405
Electric Specifications
Impedance50ohm
Frequency Range(From DC)18GHz
VSWR≤1.30:1 (DC 0~18GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)2.60±0.05
Min. Bending Radius(mm)10
Shielding Effect(dB)>90
Weight(kg/km)18 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.44
10.66
20.97
31.23
51.64
61.82
82.14
102.43
153.06
183.39
