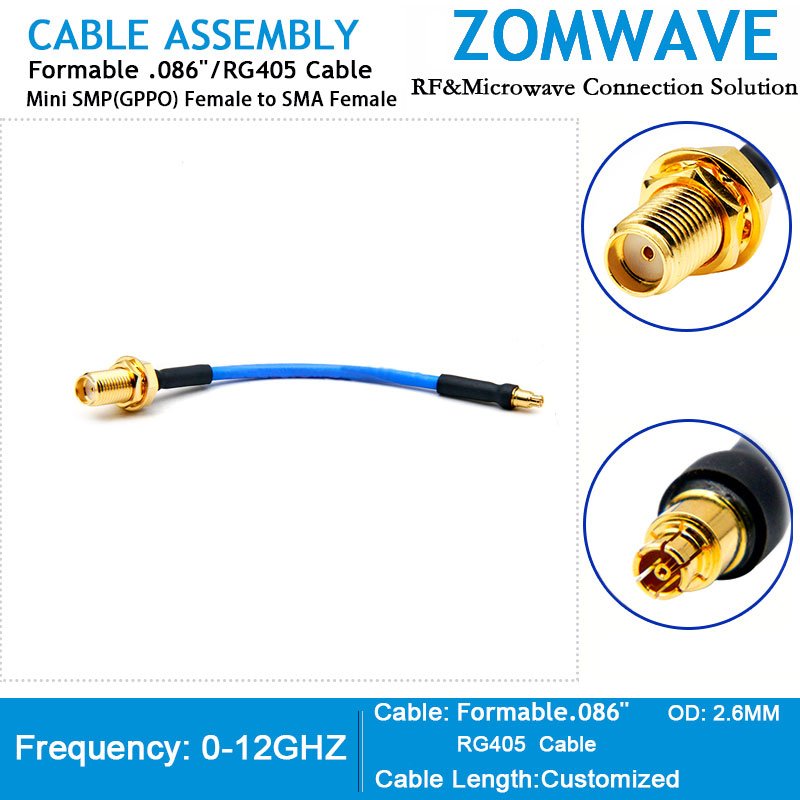

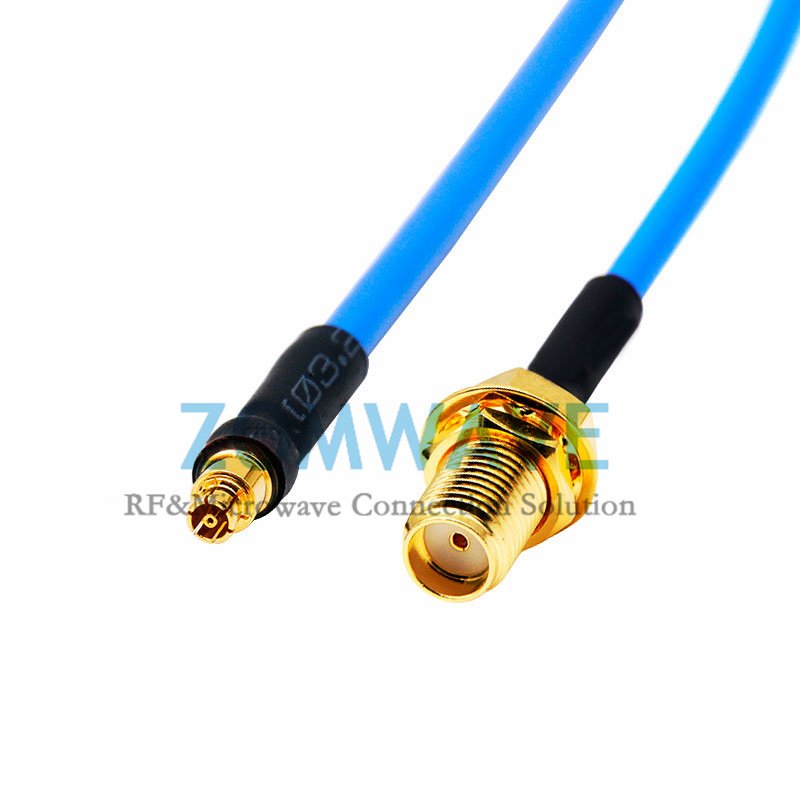

Mini SMP(GPPO) Female to SMA Female, Formable .086''_RG405 Cable, 12GHz
Mini SMP(GPPO) Female to SMA Female, Formable .086''_RG405 Cable, 12GHz
Click to enlarge
Mini SMP(GPPO) Female to SMA Female, Formable .086''_RG405 Cable, 12GHz
Mini SMP(GPPO) Female to SMA Female, Formable .086''_RG405 Cable, 12GHz

Mini SMP(GPPO) Female to SMA Female, Formable .086”_RG405 Cable, 12GHz

Price range: $19.21 through $26.83

No MOQ, 5 days Shipping out, 100% fully tested to ensure high quality. Mini SMP(GPPO) Female to SMA Female, Formable .086”/RG405 Cable, assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The Mini SMP(GPPO) Female to SMA Female cable assembly is composed of Formable 086”/ RG405. The Formable 086”/RG405 Cable are perfect for interconnection of coaxial components or sub-systems connection. The cable construction includes a silver-plated copper-clad steel center conductor, low loss PTFE, and tin overcoated copper shield braiding, which minimizes signal leakage. Connectors have brass, nickel plated coupling nut over a gold plated connector body that make the connection more reliable. The Formable 086”/RG405 Cable Cable are available in variety of length to meet your requirements. Variations of smp cable assemblies can also be manufactured and will be shipped within 5 days.

Quantity Price Discount
1-9 $19.21 0%
10-49 $18.44 4%
50-99 $17.67 8%
100+ $16.14 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1Mini SMP(GPPO)
Connector Gender 1Female
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1BeCu, Gold Plated
Connector Series 2SMA
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2BeCu, Gold Plated
Cable TypeFormable .086''/ RG405
Electric Specifications
Impedance50ohm
Frequency Range(From DC)12GHz
VSWR≤1.30:1 (DC 0~12GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketFEP
Jacket Diameter(mm)2.60±0.05
Min. Bending Radius(mm)4
Shielding Effect(dB)>100
Weight(kg/km)20 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.45
10.62
20.97
31.32
51.50
61.79
82.10
102.25
153.01
183.30

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
