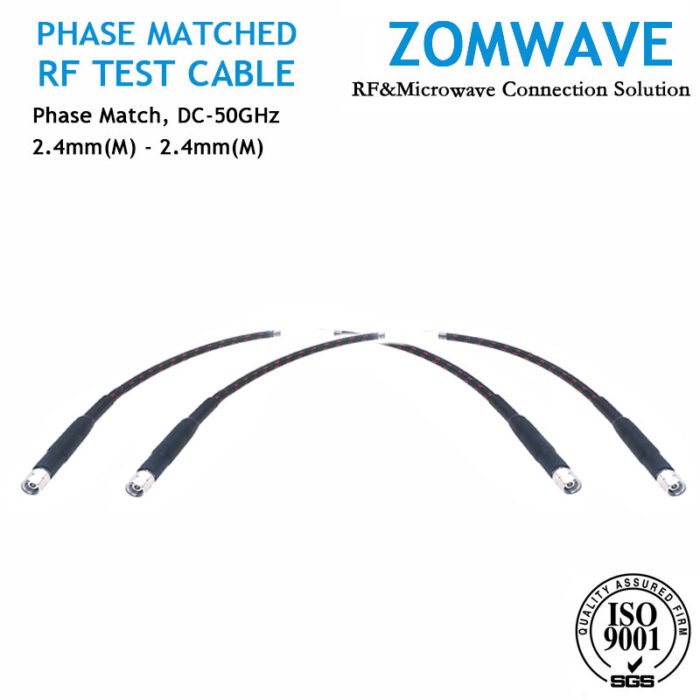

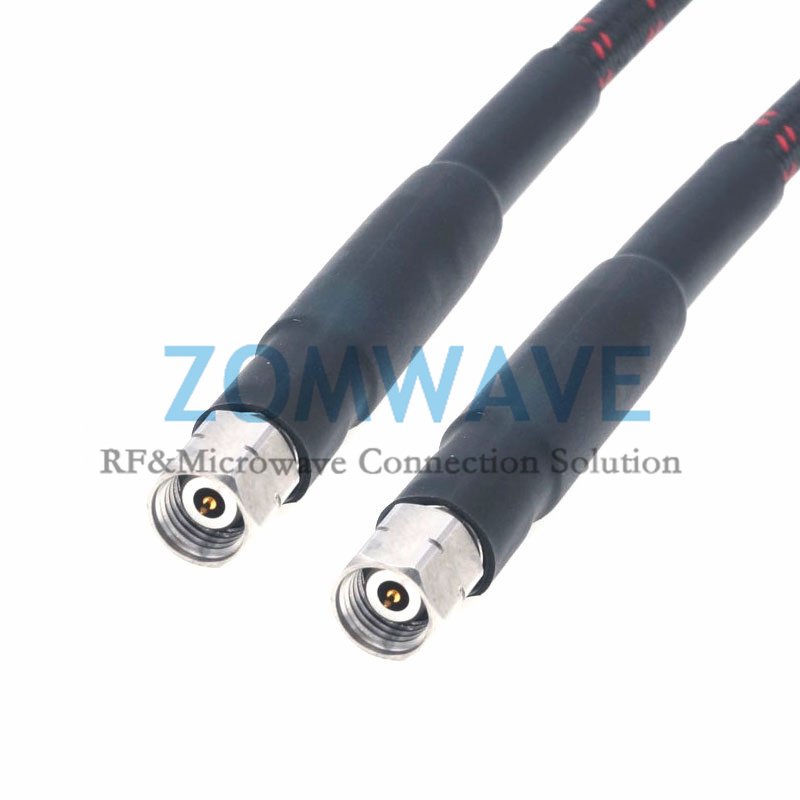

ZOMWAVE Phase Matched Microwave Test Cables are designed for test applications that request accurate, repeatable measurements. ZOMWAVE Phase Matched Microwave Test Cables provide excellent mechanical durability and electrical performance for frequency up to 110GHz. These Microwave Test Cables feature a rugged construction that deliver a 10 Million flex cycle life, with high phase and amplitude stability. Phase Matched Cable in sets of two, with a delay less than ±2ps. ZOMWAVE 2.4mm Male to 2.4mm Male Phase Matched Armor Test Cable, Low Loss Phase-Stable are using a Stainless Steel with passivated connectors that are durable for the test applicaton. ZOMWAVE 2.4mm Male to 2.4mm Male Phase Matched Armor Test Cable, Low Loss Phase-Stable are available in 24, 36, 48 and 60 inch. No only the lengths but also the phase or time delay matching can be customized per customer’s requirement.

Quantity Price Discount
1-9 $201.20 0%
10-49 $193.15 4%
50-99 $185.10 8%
100+ $169.01 16%

   200+                                     Call US

   Get a lower discount price

24in
36in
48in
60in
Clear
SKU: P/N:P2PSP2PS-K33P-24.00IN(1pc)
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 12.4mm
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Stainless Steel, Passivated
Connector Series 22.4mm
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Stainless Steel, Passivated
Cable TypePhaseAmo
Electric Specifications
Impedance50 ohm
Frequency Range(From DC)50GHz
VSWR≤1.30:1 (DC 0~50GHz)
Insertion Loss1dB/ft @50GHz
Mechanical Phase<±5°@50GHz
Amplitude Stability<±0.05dB@50GHz
Delay Match (2pcs in one pair)<±2ps
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-55°C ~ +105°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
Armor JacketStainless Steel with PTFE Wire
Armor Diameter(mm)6.00±0.15
Min. Bending Radius(mm)30
Shielding Effect(dB)>100
Weight(kg/km)125 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.31
10.44
20.62
30.76
50.99
61.09
101.41
181.92
202.03
26.52.35
402.92
503.28
