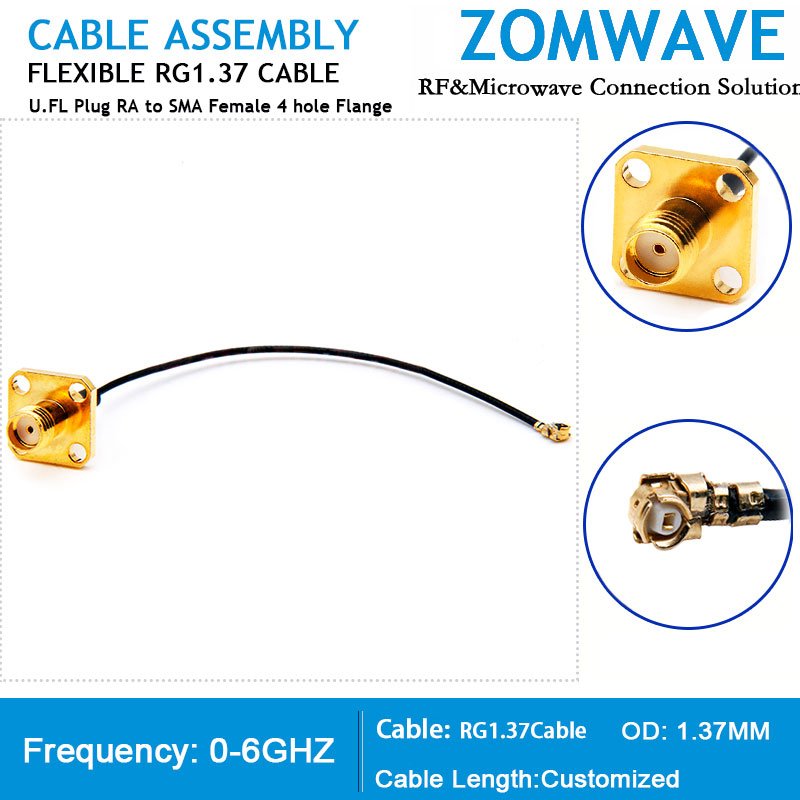

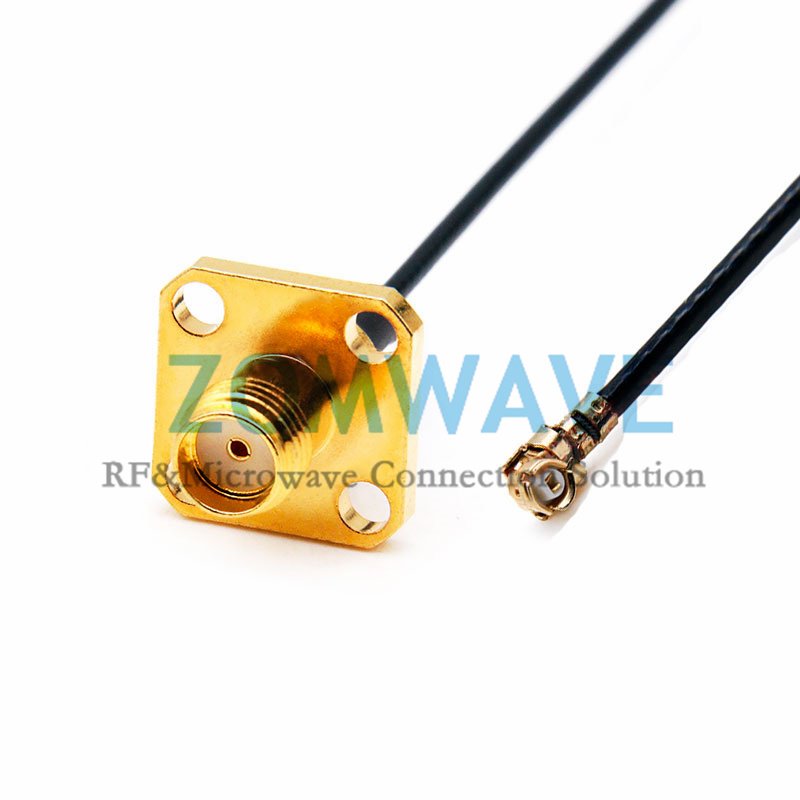

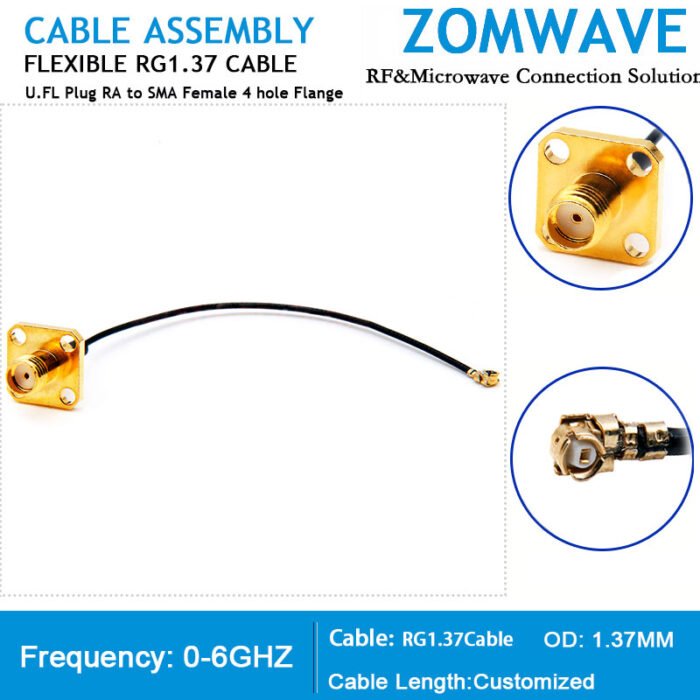

U.FL Plug Right Angle to SMA Female 4 hole Flange, RG1.37 Cable, 6GHz

$3.54 – $4.42

No MOQ, 5 days Shipping out, 100% fully tested to ensure high quality. U.FL Plug Right Angle to SMA Female 4 hole Flange, RG1.37 Cable. ZOMWAVE RG178 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG178 coax is constructed with a 0.072 jacket made of FEP, assemblies are part of over 40,000 RF, microwave and millimeter wave components. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The U.FL Plug Right Angle to SMA Female 4 hole Flange, RG1.37 Cable assembly is composed of Flexible RG178 Cable. RG178 coax has a shield count of 1. The Flexible RG178 Cable. are perfect for interconnection of coaxial components or sub-systems connection. The cable construction includes a silver-plated copper-clad steel center conductor, low loss PTFE, and tin overcoated copper shield braiding, which minimizes signal leakage. Connectors have brass, nickel plated coupling nut over a gold plated connector body that make the connection more reliable. The Flexible RG178 Cables are available in variety of length to meet your requirements. Variations of IPEX(UFL) cable assemblies can also be manufactured and will be shipped within 5 days.

Quantity Price Discount
1-9 $3.54 0%
10-49 $3.40 4%
50-99 $3.26 8%
100+ $2.97 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1U.FL
Connector Gender 1Plug
Connector Angle 1Right Angle
Connector Mount Method1None
Body Materials and Plating 1Copper Alloy, Gold Plated
Connector Series 2SMA
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 2 4 hole Flange
Body Materials and Plating 2Brass, Gold Plated
Cable Type RG1.37
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.50:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 30 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPEP
JacketFEP
Jacket Diameter(mm)1.37±0.05
Min. Bending Radius(mm)5
Shielding Effect(dB)>70
Weight(kg/km)3 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
11.70
22.50
33.00
43.50
54.00
64.50

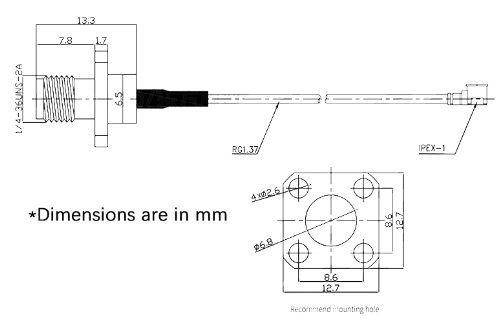

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
