TNC Female to BNC Female Adapter, 4GHz
TNC Female to BNC Female Adapter4GHZ
Click to enlarge

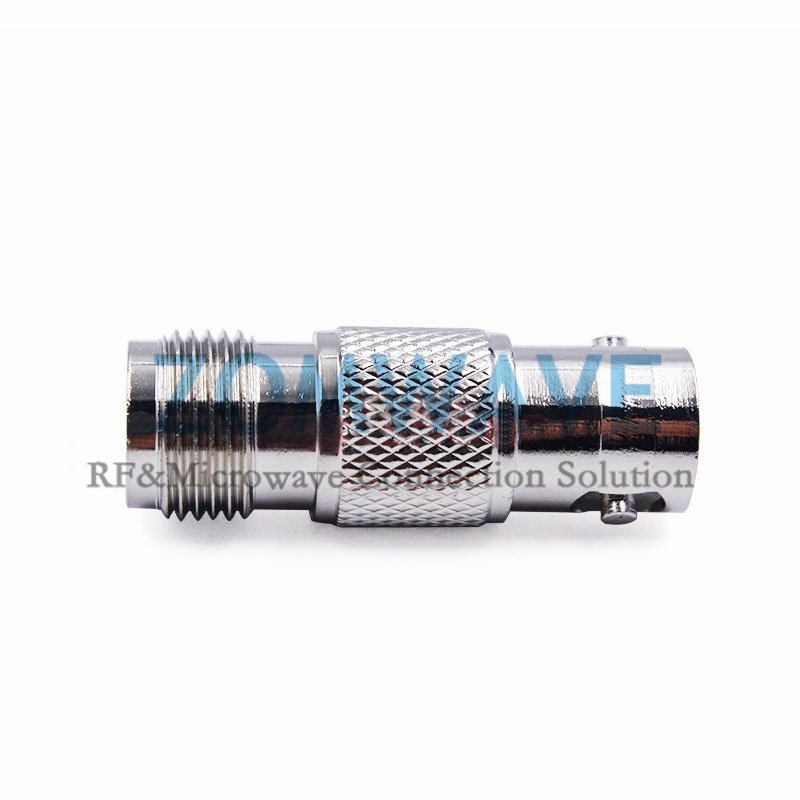

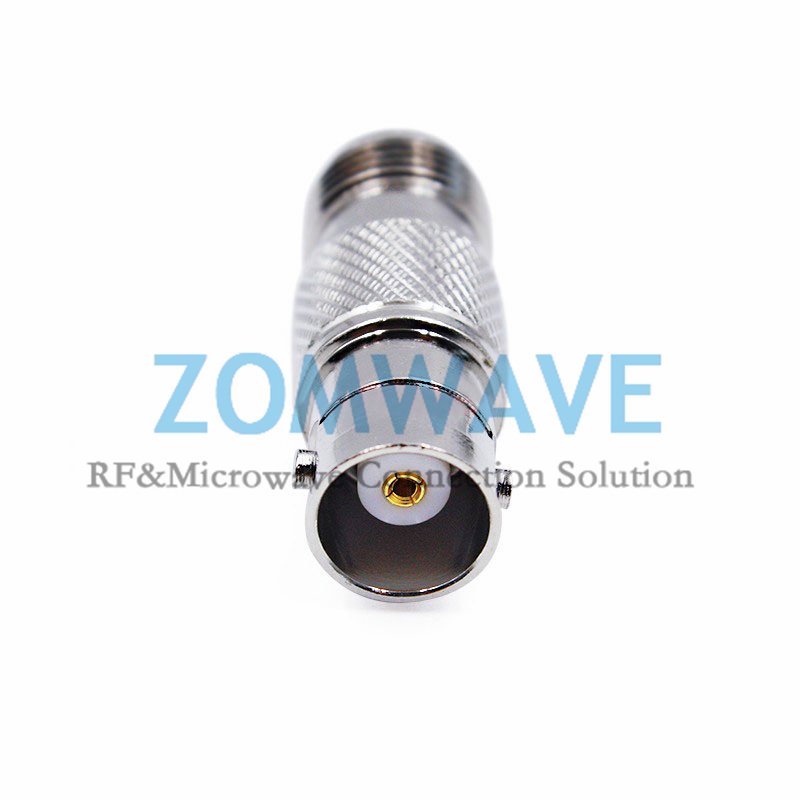

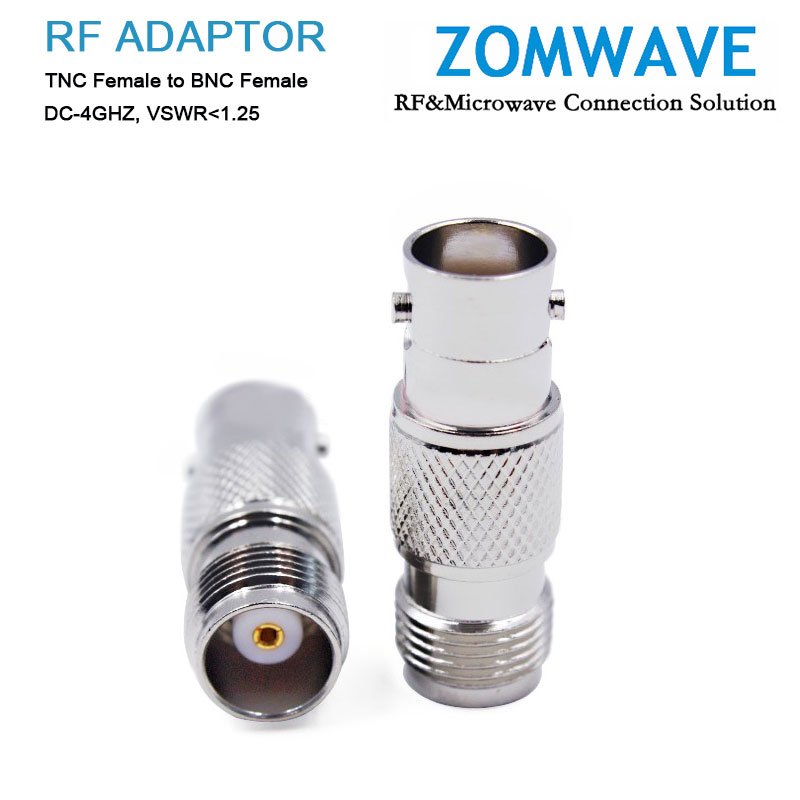

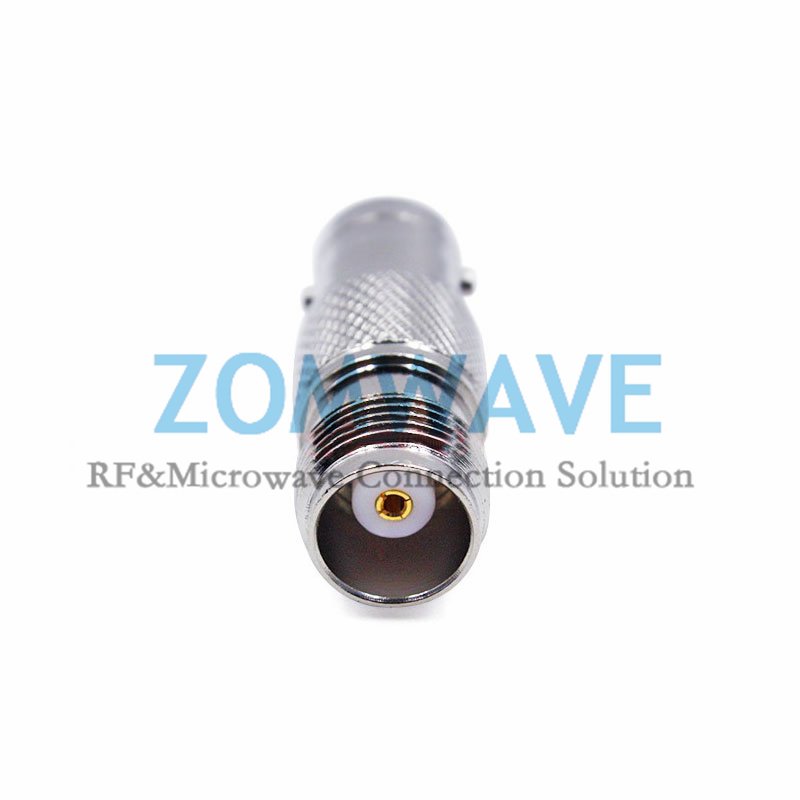

TNC Female to BNC Female Adapter, 4GHz
TNC Female to BNC Female Adapter4GHZ

TNC Female to BNC Female Adapter, 4GHz

$5.00

Bnc adapter female to female, bnc female to tnc female adapter ZOMWAVE presents a high performance TNC Female to BNC Female Adapter designed for robust and reliable interconnection of coaxial components and subsystems across demanding industrial production and integration environments. This 50 ohm straight body adapter is precision engineered to deliver excellent VSWR performance up to 4 GHz ensuring minimal signal loss and reflection. It serves as a cost effective solution for test instrumentation telecommunications security systems and data acquisition while fitting standard racks and harnesses for easy installation and repeatable mating cycles. Durable brass construction with plated finish offers corrosion resistance and consistent electrical characteristics for high volume production runs. Complementing other interconnect solutions such as female BNC to female BNC adapter configurations this adapter also provides full traceability custom labeling options reduced maintenance downtime and ISO certified manufacturing with fast lead times to support critical project schedules.



Quantity Price Discount
1-9 $5.00 0%
10-49 $4.80 4%
50-99 $4.60 8%
100+ $4.20 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:BNJ-TNJ-SNM-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Adapter Series 1TNC
Adapter Gender 1Female
Adapter Mount Method1None
Body Materials and Plating 1Brass Nickle Plated
Adapter Series 2BNC
Adapter Gender 2Female
Adapter Mount Method 2None
Body Materials and Plating 2Brass Nickle Plated
Adapter Angle Straight
Electric Specifications
Impedance50ohm
Frequency Range(From DC)4GHz
VSWR≤1.25:1 (DC 0~4GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

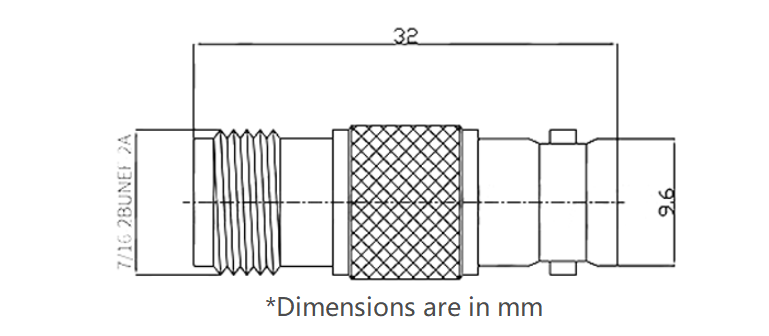

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
