SSMA Female Straight Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18GHz

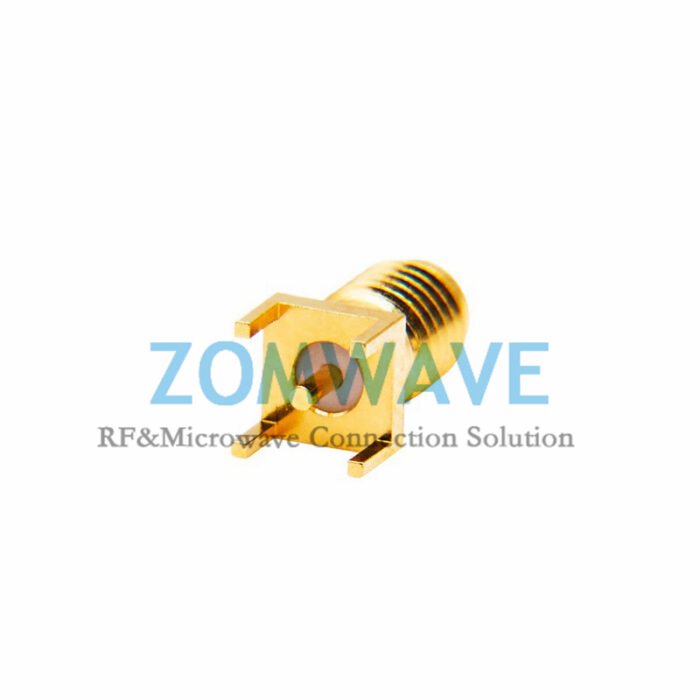

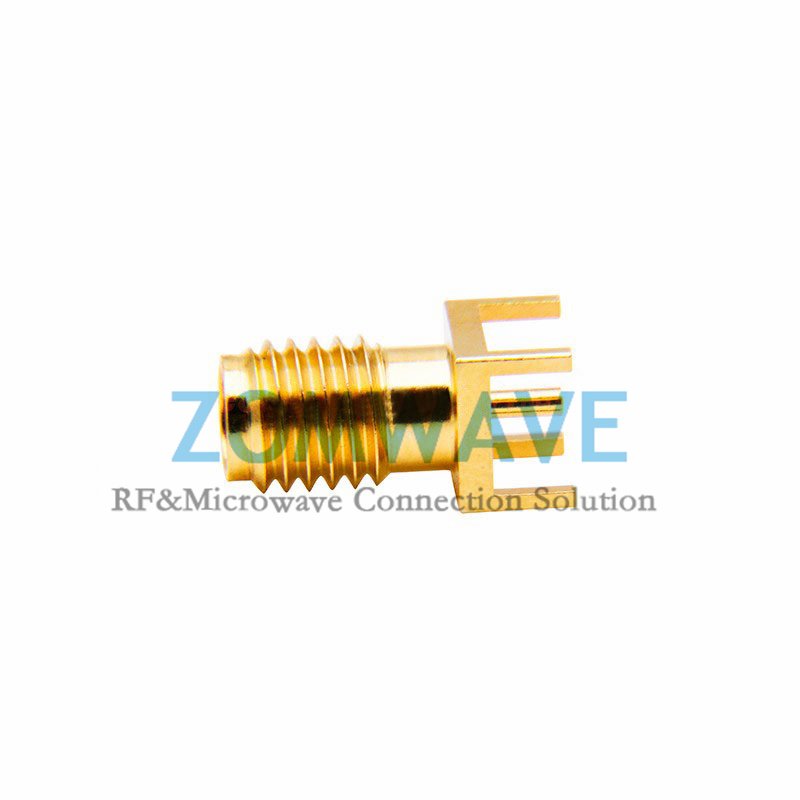

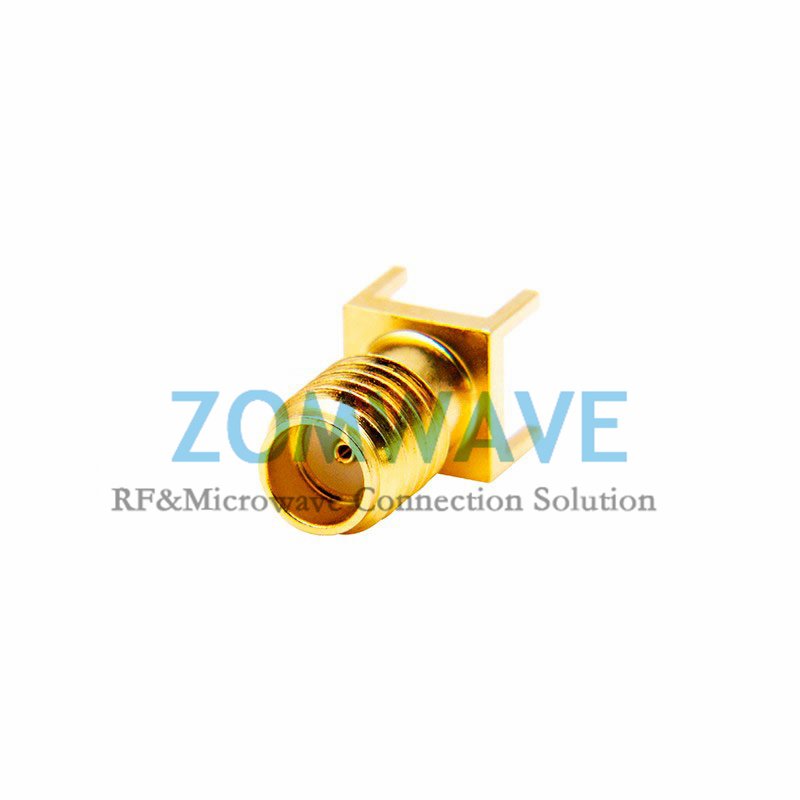

Click to enlarge

SSMA Female Straight Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18GHz

$4.00

ZOMWAVE supplies high-performance SSMA female connector designs including SSMA RF connector models engineered for robust and reliable connections in demanding applications. These 50 Ohm impedance SSMA female straight thru-hole PCB connectors feature a brass body with gold plating and beryllium copper contacts to ensure minimal signal loss and stable performance from DC to 18 GHz. With a VSWR of 1.3 and PTFE dielectric, this SSMA female jack connector for flexible cable provides excellent phase stability and mechanical durability, supporting secure thru-hole mounting via shield and contact solder attachment for .173 inch x .035 inch mounting holes. Ideal for aerospace, telecom, 5G infrastructure, and test instrumentation, these RoHS and REACH compliant components are part of an extensive inventory of over 40,000 RF items ready for global shipment within 5 days. ZOMWAVE helps streamline procurement, accelerate prototyping, and scale production by offering volume pricing, custom testing, and engineering support for seamless integration with cable assemblies and existing infrastructure, ensuring reduced time-to-market and enhanced system reliability for OEMs and contract manufacturers.

Quantity	Price	Discount
1-9	$4.00	0%
10-49	$3.84	4%
50-99	$3.68	8%
100+	$3.36	16%

200+ Call US

Get a lower discount price

SKU: P/N:SAJS-NMSS-PTHT-99

Key specifications

Configuration
Connector Series	SSMA
Connector Gender	Female
Connector Angle	Straight
Connector Mount Method	None
Attachment Method	Solder
Interface Type	Thru Hole
Material
Centre Contact	Beryllium-copper, gold plated
Body	Brass, gold plated
Insulators	PTFE
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	18GHZ
VSWR	≤1.3:1 (DC 0~18GHz)
Insertion Loss	0.05 xSqt.(f_Ghz)
Voltage Rating	150 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

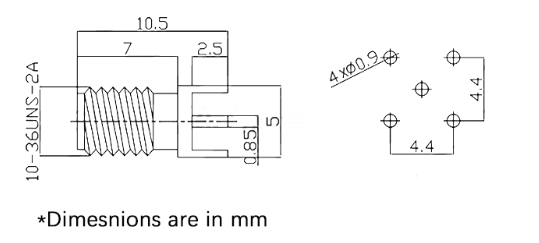

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
