SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G
SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G
SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G
SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G
Click to enlarge

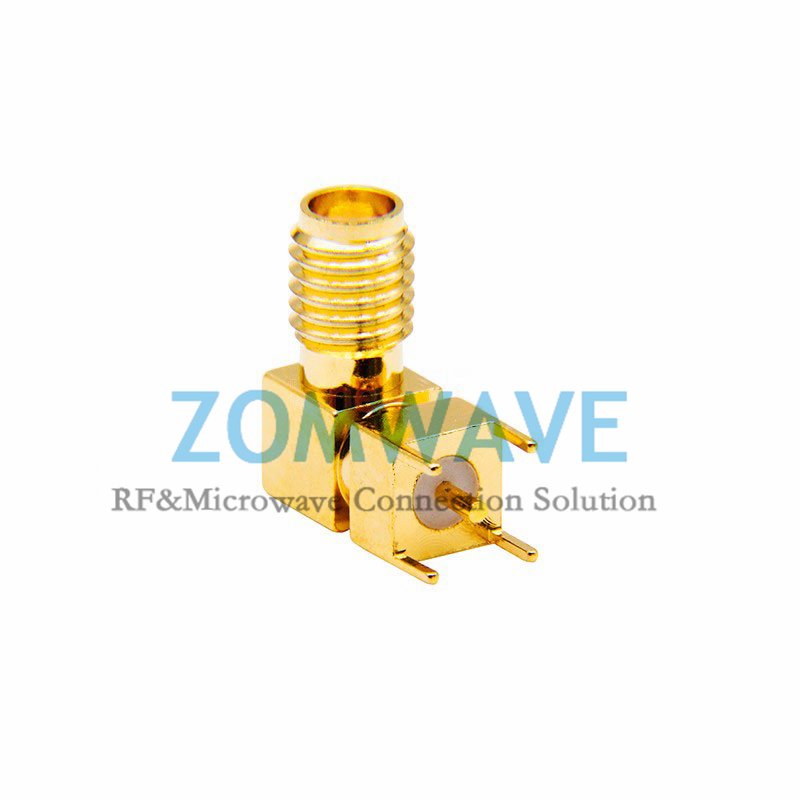

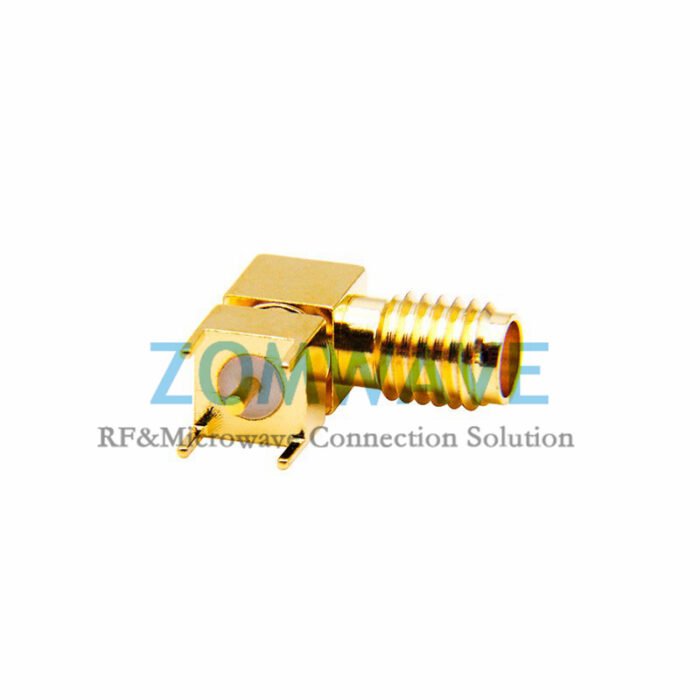

SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G
SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G
SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G
SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G

SSMA Female Right Angle Thru Hole PCB Connector, .173 inch x .035 inch Hole, 18G

$4.33

ZOMWAVE’s SSMA Female Right Angle Thru Hole PCB Connector delivers high-frequency performance and mechanical reliability for demanding RF applications. Designed with a precision right-angle interface, these SSMA connectors feature a 50 Ohm impedance and operate from DC to 18 GHz with a low VSWR of 1.3. The connector utilizes a thru-hole mounting style compatible with .173 inch x .035 inch PCB holes and employs shield/contact solder attachment for secure connections. Constructed with a gold-plated brass body and beryllium copper contact, this SSMA female connector ensures durability, excellent corrosion resistance, and stable signal integrity.Ideal for compact systems where space optimization is critical, such as comms equipment, test instrumentation, and aerospace electronics, these RoHS and REACH compliant SSMA connectors are part of ZOMWAVE’s broad portfolio of over 40,000 in-stock RF components. We offer 5-day shipment on standard items, negotiated pricing for volume orders, and full support for custom requirements including phase matching, RF testing, and documentation. Our team provides expert guidance to help simplify design-in, reduce sourcing complexity, and accelerate integration into production environments.

Quantity Price Discount
1-9 $4.33 0%
10-49 $4.16 4%
50-99 $3.98 8%
100+ $3.64 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:SAJR-NMSS-PTHT-99
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series SSMA
Connector Gender Female
Connector AngleRight Angle
Connector Mount MethodNone
Attachment MethodSolder
Interface TypeThru Hole
Material
Centre ContactBeryllium-copper, gold plated
BodyBrass, gold plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)18GHZ
VSWR≤1.3:1 (DC 0~18GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
