SPDT Electromechanical Relay Latching Switch, Terminated DC to 40 GHz, up to 10W, 24V, Positive Common, 2.92mm Female Type

$680.00

The SWLDT-MK40G24V-L3S4-011 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 26.5 GHz and can handle up to 10W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.80 dB insertion loss and isolation greater than 55 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports 2.92mm Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.



Quantity Price Discount
1-9 $680.00 0%
10-49 $652.80 4%
50-99 $625.60 8%
100+ $584.80 14%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:SWLDT-MK40G24V-L3S4-01
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Switch DesignSPDT
Switch TypeTerminated
Actuator TypeLatching
Control ModePositive Common
Actuator Voltage24V
Control InterfaceSolder Pin
Connector Series 2.92mm
Connector GenderFemale
Electric Specifications
Impedance50ohm
Frequency Range(From DC)40GHz
VSWR≤1.80:1
Insertion Loss<0.80dB
Isolation>55dB
Input Power, CW 10 Watts @25°C
Mechanical Characteristics
Mating Cycles≥ 1,000,000 cycles
Switching Time<15ms
Environmental Characteristics （RoHS Complliant)
Temperature Rating-25°C ~ +65°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.



FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

You Might Also Like

SPDT Electromechanical Relay Latching Switch, Unterminated DC to 6 GHz, up to 120W,12V,TTL(H), SMA Female Type
Compare

SPDT Electromechanical Relay Latching Switch, Unterminated DC to 6 GHz, up to 120W,12V,TTL(H), SMA Female Type

SKU: P/N:SWSDT-MA06G12V-L3S4-01
$171.67
The SWSDT-MA06G12V-L3S4-01 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 6 GHz and can handle up to 120W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.3 dB insertion loss and isolation greater than 85 dB. This switch requires +12Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.

Add to wishlist
Add to cart
Quick view
Compare

SPDT Electromechanical Relay Latching Switch, Terminated DC to 18 GHz, up to 80W, 24V, TTL(H) , SMA Female Type

SKU: P/N:SWLDT-MA18G24V-L3S4-01
$433.33
The SWLDT-MA18G24V-L3S4-01 is a Single Pole Double Throw (SPDT) electromechanical relay switch that operates across a wide frequency range of DC to 18 GHz and can handle up to 80W of average power in a break before make condition. The design is rated for 1 million lifecycles and features a Latching Actuator where the selected position remains active with constant voltage, all positions are open when voltage is removed. Impressive typical performance includes 0.5 dB insertion loss and isolation greater than 65 dB. This switch requires +24Vdc bias voltage and operates over a temperature range of -25°C to +65°C. The rugged and compact package assembly supports SMA Type female connectors and Solder Pin(4 pin)for DC control. And for highly reliable operation, the model is guaranteed to meet MIL-STD-202 environmental test conditions for shock and random vibration.

Add to wishlist
Add to cart
Quick view
Compare

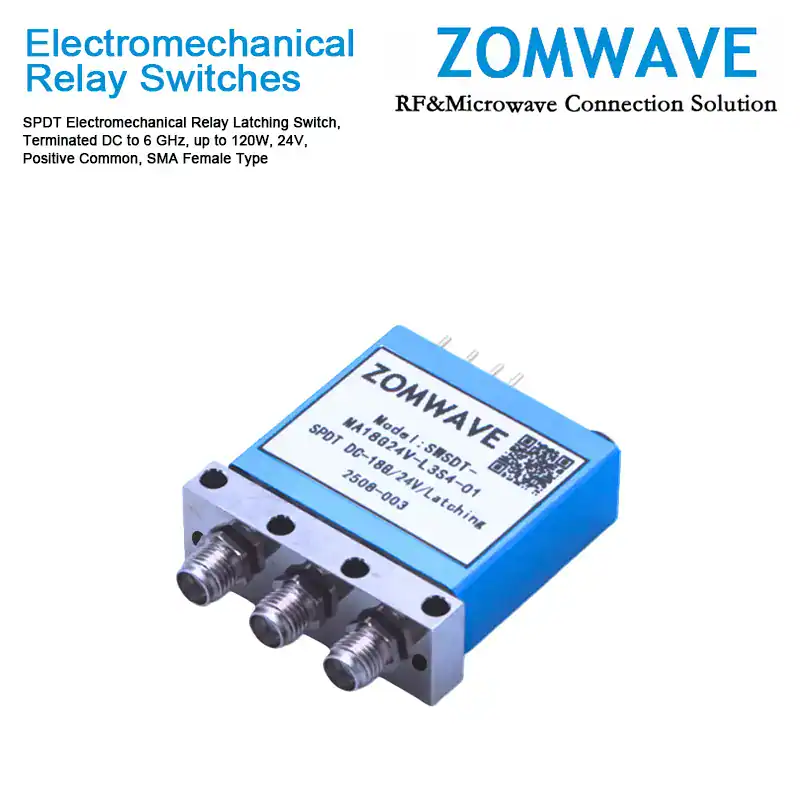

SPDT Electromechanical Relay Latching Switch, Terminated DC to 6 GHz, up to 120W, 24V,Positive Common, SMA Female Type
