SMP(GPO) Male Stainless Steel Thread-In Terminal Connector (Full Detent), 18G

Click to enlarge

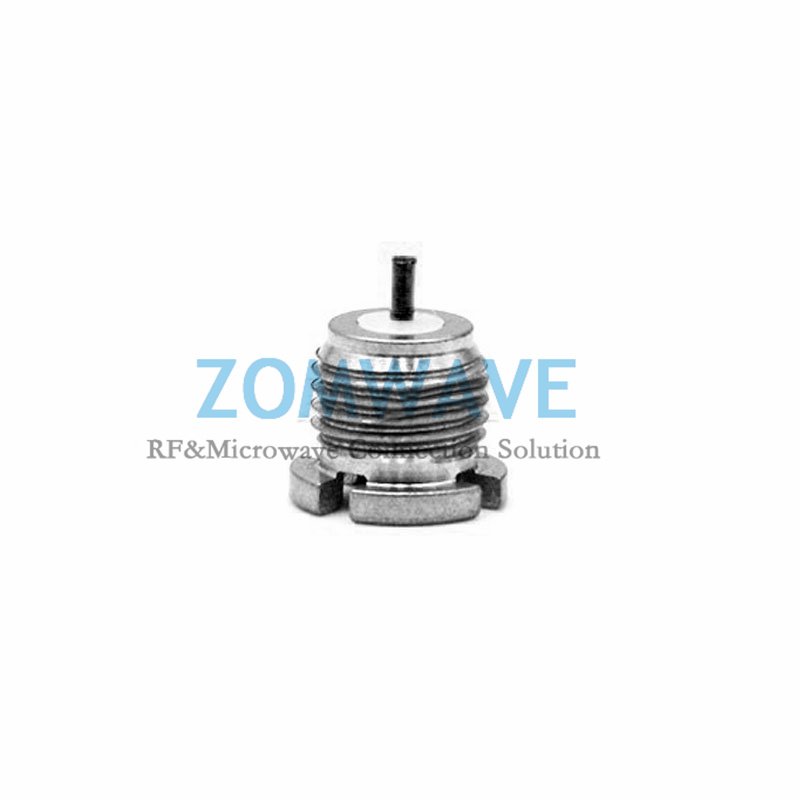

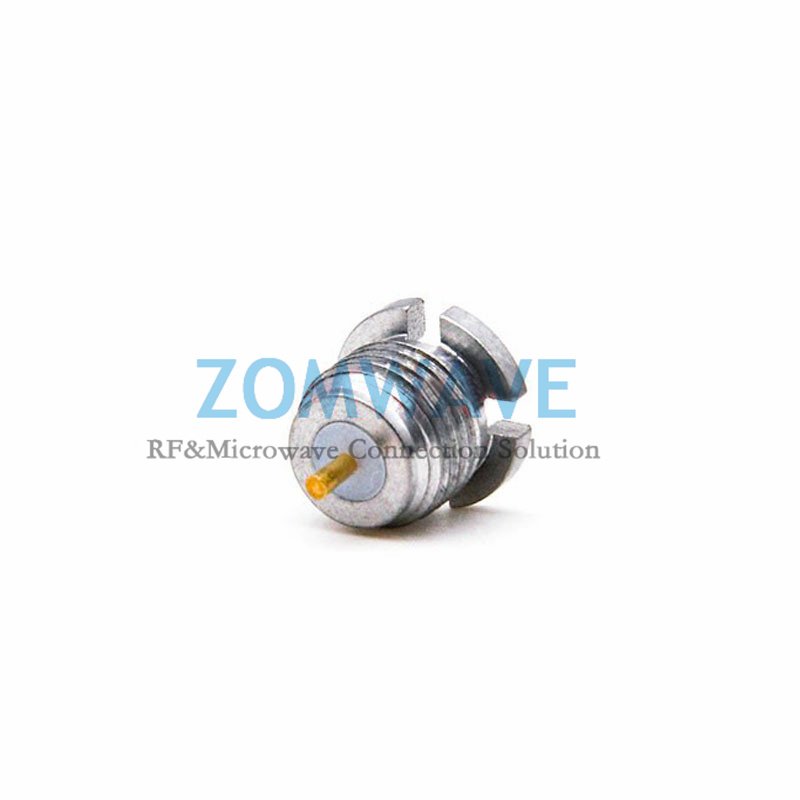

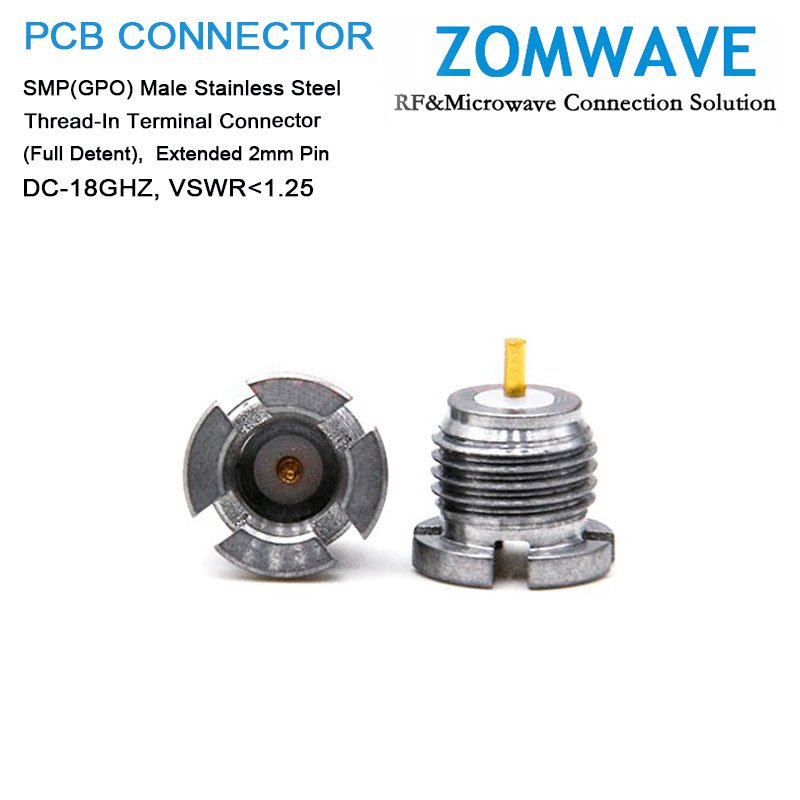

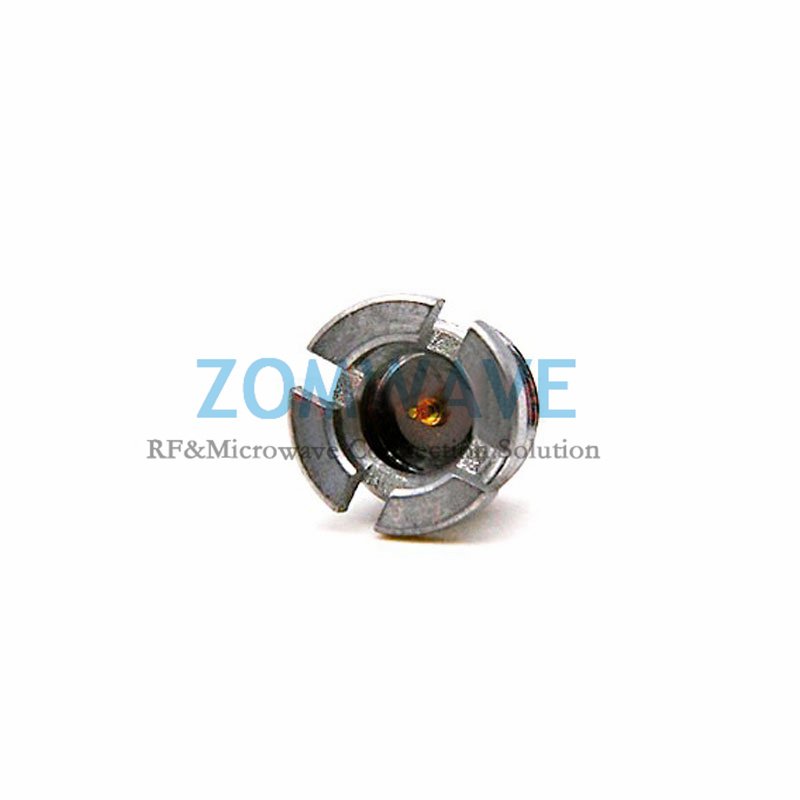

SMP(GPO) Male Stainless Steel Thread-In Terminal Connector (Full Detent), 18G

$17.46

5 Days Ship Out. Negotiated Prcie. ZOMWAVE SMP(GPO) Male Stainless Steel Thread-In Terminal Connector (Full Detent), Extended 2mm Pin connector has an interface type of Thread-in terminal and a 50 Ohm impedance. smp male connector uses shield/contact solder as an attachment method. Our female smp pcb connector provides a minimum frequency of DC and a maximum frequency of 18GHz. ZOMWAVE smp male pcb connector has a PTFE dielectric type and a VSWR of 1.25. The ZOMWAVE SMP(GPO) Male Stainless Steel Thread-In Terminal Connector (Full Detent), Extended 2mm Pin connector has a brass body with gold plating. Our smp connector uses beryllium copper contact. This smp male pcb RF connector is RoHS and REACH compliant. Our smp male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. compatible only with the smp interface. Zomwave supplies SMP PCB End Launch Connector.

Quantity	Price	Discount
1-9	$17.46	0%
10-49	$16.76	4%
50-99	$16.06	8%
100+	$14.67	16%

200+ Call US

Get a lower discount price

SKU: P/N:MPPS-FLTS-PTMS-97

Key specifications

Configuration
Connector Series	SMP
Connector Gender	Male
Connector Angle	Straight
Connector Mount Method	Thread-in
Attachment Method	Solder
Interface Type	Stub Pin
Material
Centre Contact	Brass, gold plated
Body	Stainless Steel Passivated
Insulators	PTFE
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	18GHZ
VSWR	≤1.25:1 (DC 0~18GHz)
Insertion Loss	0.05 xSqt.(f_Ghz)
Voltage Rating	150 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

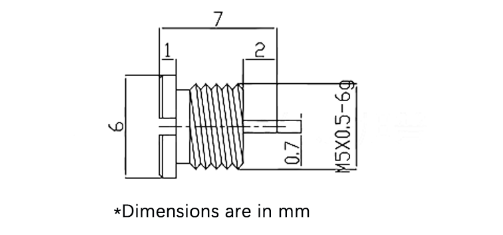

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
