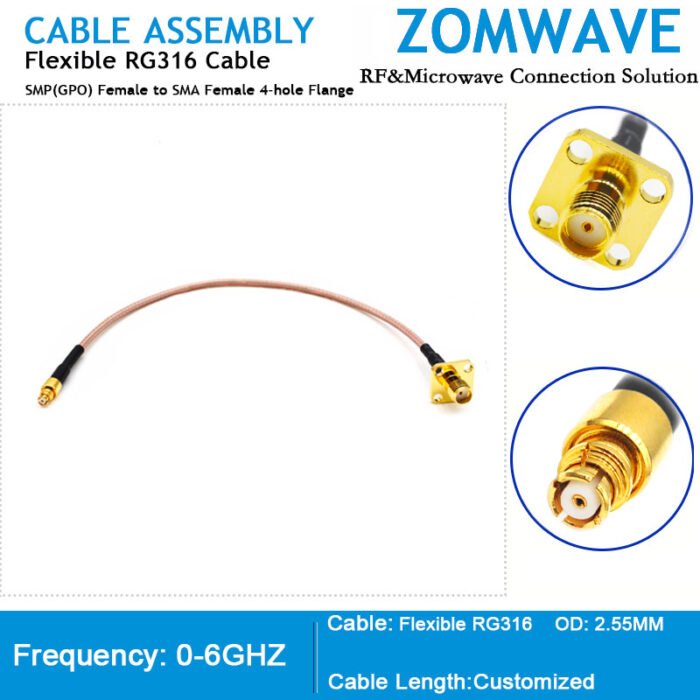

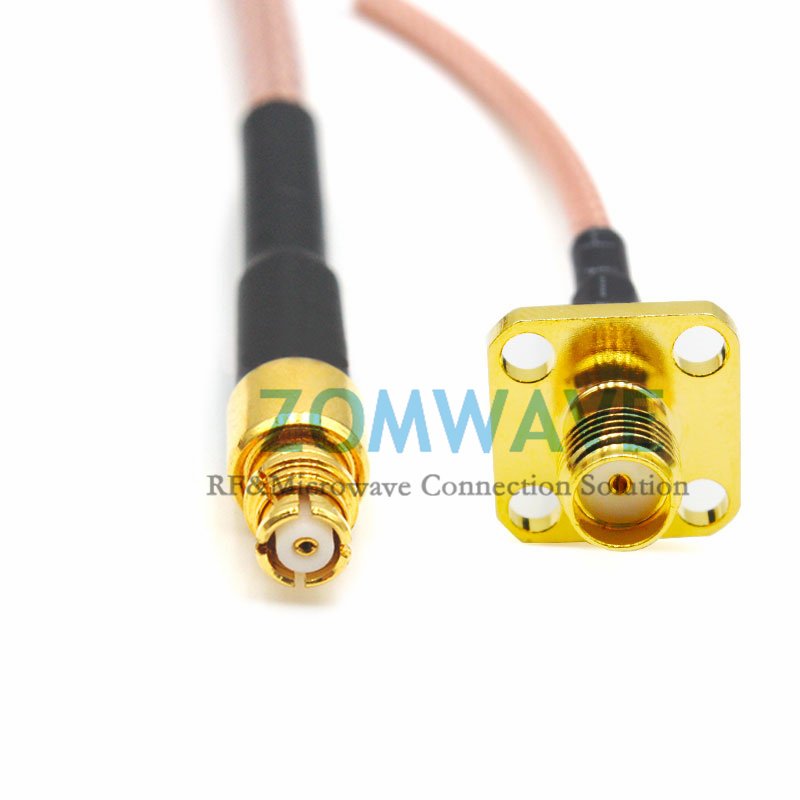

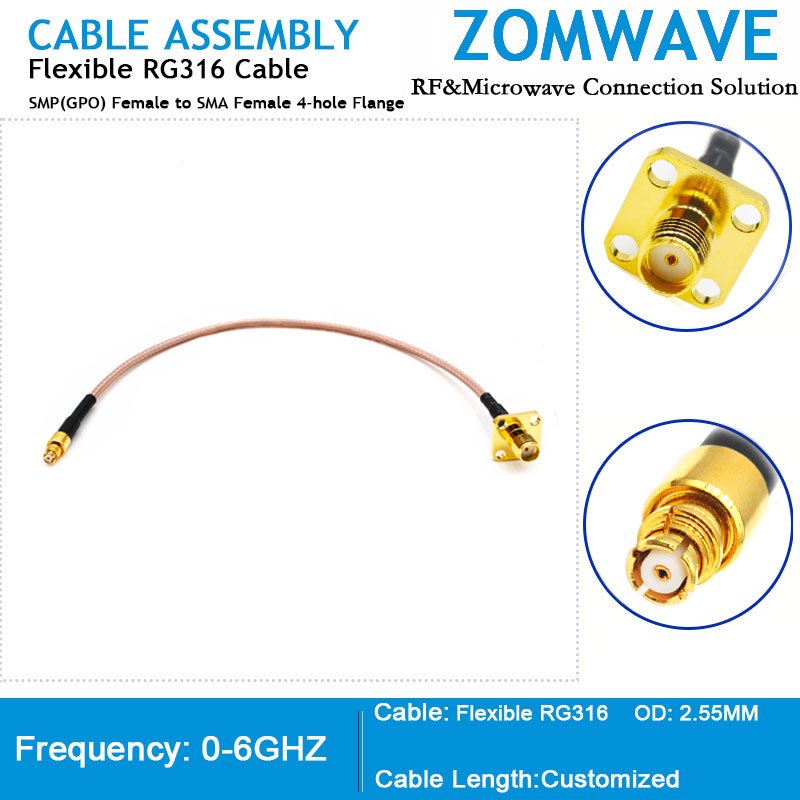

SMP(GPO) Female to SMA Female 4-hole Flange, RG316 Cable, 6GHz
SMP(GPO) Female to SMA Female 4-hole Flange, RG316 Cable, 6GHz
Click to enlarge
SMP(GPO) Female to SMA Female 4-hole Flange, RG316 Cable, 6GHz
SMP(GPO) Female to SMA Female 4-hole Flange, RG316 Cable, 6GHz

SMP(GPO) Female to SMA Female 4-hole Flange, RG316 Cable, 6GHz

Price range: $9.39 through $11.26

ZOMWAVE offers a dependable smp cable assembly oem smp to SMA cable solution built on flexible RG316 coax with PTFE dielectric and a 0.102 FEP jacket that ships with no MOQ, 5-day shipping out, and 100 percent full testing to ensure high quality. The SMP GPO female to SMA female 4 hole flange assembly features a silver-plated copper-clad steel center conductor, tin overcoated copper braid, and gold-plated connector bodies with nickel-plated coupling nuts for reliable mating, low leakage, and long-term contact integrity, while meeting MIL grade environmental and mechanical specs for vibration, shock, and moisture resilience. These cable assemblies deliver low insertion loss and repeatable VSWR to support critical applications from automotive and broadband to 5G quantum computing and medical instrumentation, and are available in multiple lengths and customizable variants to solve connector compatibility, EMI shielding, thermal expansion, and system integration issues while reducing installation time and total cost of ownership with RoHS, 500 cycles preventing failures. This high-performance SMA RF cable assembly further provides enhanced phase stability and shielding effectiveness over 80 dB to eliminate signal degradation under extreme conditions and extend equipment lifespan for smoother RF system deployment.
Quantity Price Discount
1-9 $9.39 0%
10-49 $9.01 4%
50-99 $8.64 8%
100+ $7.89 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1SMP
Connector Gender 1Female
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1BeCu, Gold Plated
Connector Series 2SMA
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 24-Hole Flange
Body Materials and Plating 2BeCu, Gold Plated
Cable TypeRG316
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.30:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)2.50±0.05
Min. Bending Radius(mm)15
Shielding Effect(dB)>80
Weight(kg/km)16 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.10.29
0.40.58
0.90.88
10.93
1.81.27
2.41.46
31.65
52.14
62.34

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
