SMA Male to TNC Female Bulkhead Waterproof, RG316 Cable, 6GHz
SMA Male to TNC Female Bulkhead Waterproof, RG316 Cable, 6GHz
Click to enlarge
SMA Male to TNC Female Bulkhead Waterproof, RG316 Cable, 6GHz
SMA Male to TNC Female Bulkhead Waterproof, RG316 Cable, 6GHz

SMA Male to TNC Female Bulkhead Waterproof, RG316 Cable, 6GHz

$5.31 – $7.37

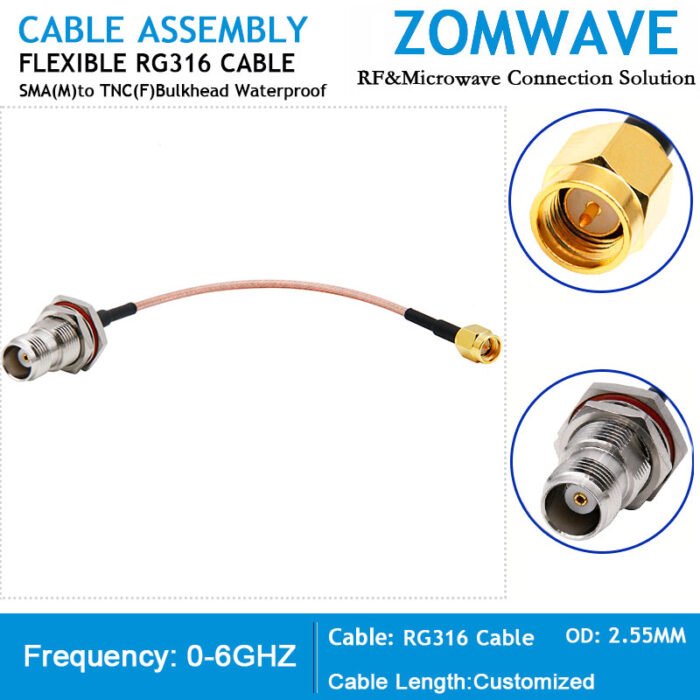

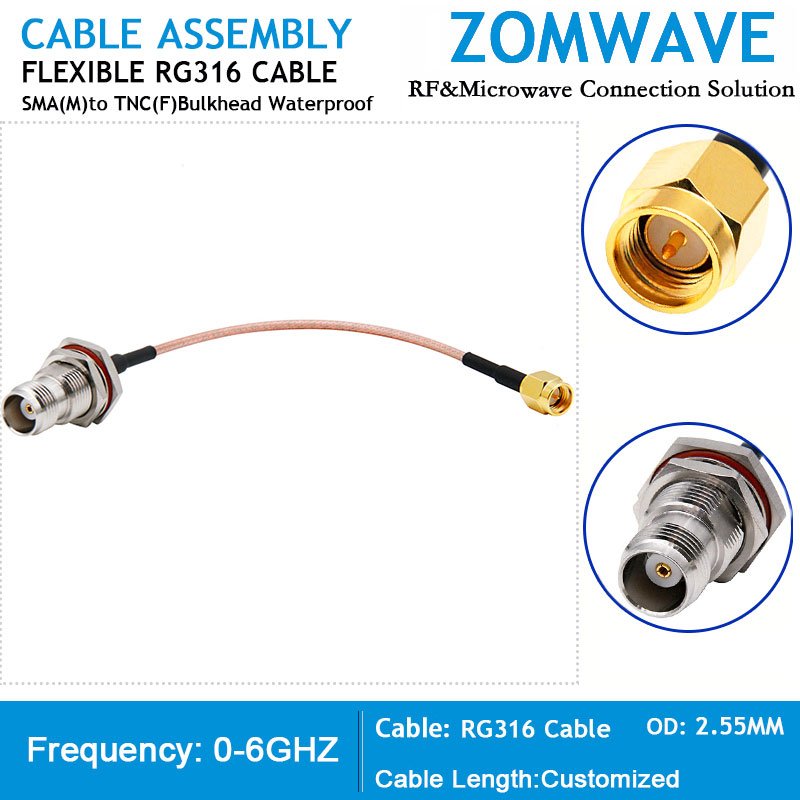

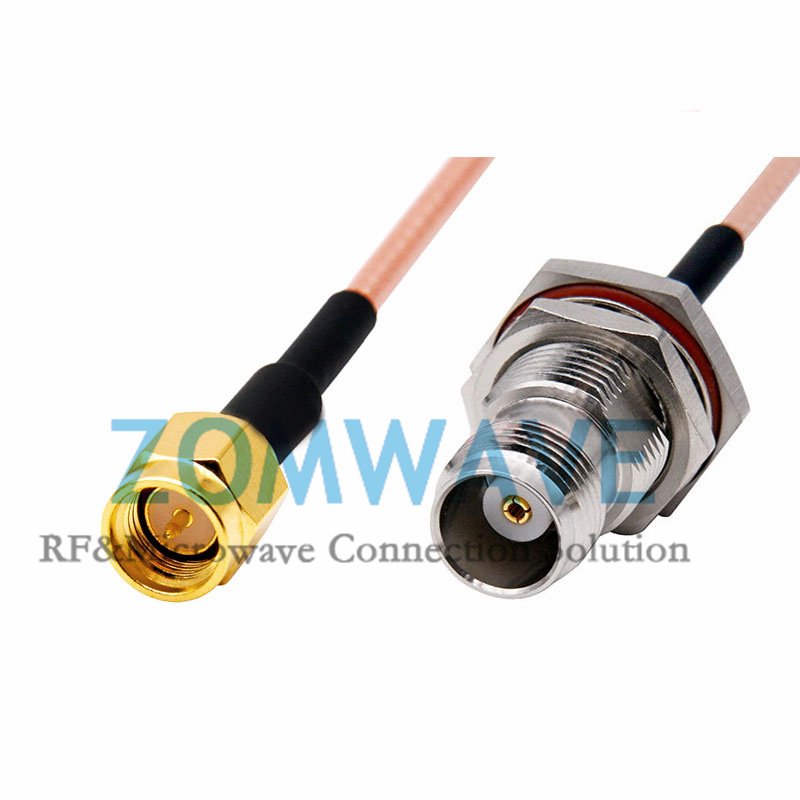

ZOMWAVE delivers premium coaxial cable assemblies, including specialized options like tnc male for rg174 sky window type, with no minimum order quantity and expedited 5-day shipping. Our flagship SMA Male to TNC Female Bulkhead Waterproof assembly features RG316 flexible coax cable, designed with a 50 Ohm impedance, PTFE dielectric, and a 0.102-inch FEP jacket. This construction ensures top performance across industries such as automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, and 5G wireless. Every assembly is 100% fully tested to guarantee high quality and reliability. The RG316 cable includes a silver-plated copper-clad steel center conductor and tin-overcoated copper shield braiding to minimize signal leakage, making it perfect for interconnecting coaxial components or subsystems. Connectors are crafted from brass with a nickel-plated coupling nut over a gold-plated connector body for dependable connections. Available in a variety of lengths, our SMA Male to TNC Female Bulkhead Waterproof, RG316 Cable assemblies, along with custom variations, are shipped within 5 days to meet your project needs.

Quantity Price Discount
1-9 $5.31 0%
10-49 $5.10 4%
50-99 $4.89 8%
100+ $4.46 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1SMA
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Brass, Gold Plated
Connector Series 2TNC
Connector Gender 2Female
Connector Angle 2Straight
Connector Mount Method 2Bulkhead Waterproof
Body Materials and Plating 2Brass, Nickel Plated
Cable TypeRG316
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.25:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)2.50±0.05
Min. Bending Radius(mm)15
Shielding Effect(dB)>80
Weight(kg/km)16 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.10.29
0.40.58
0.90.88
10.93
1.81.27
2.41.46
31.65
52.14
62.34
