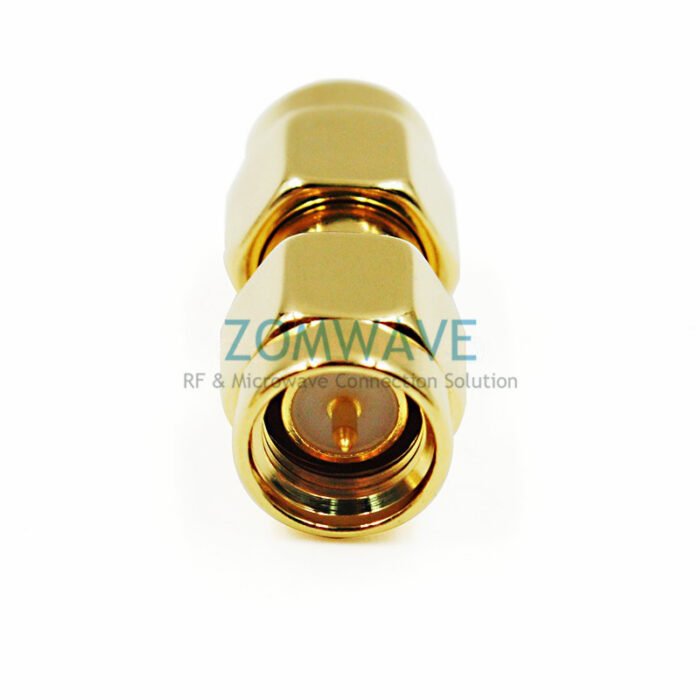

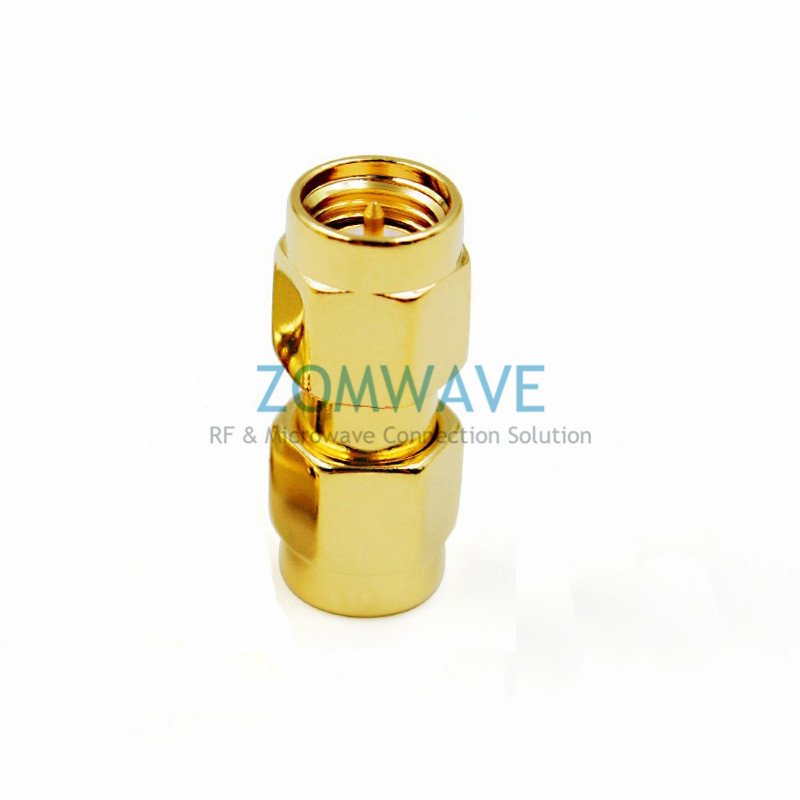

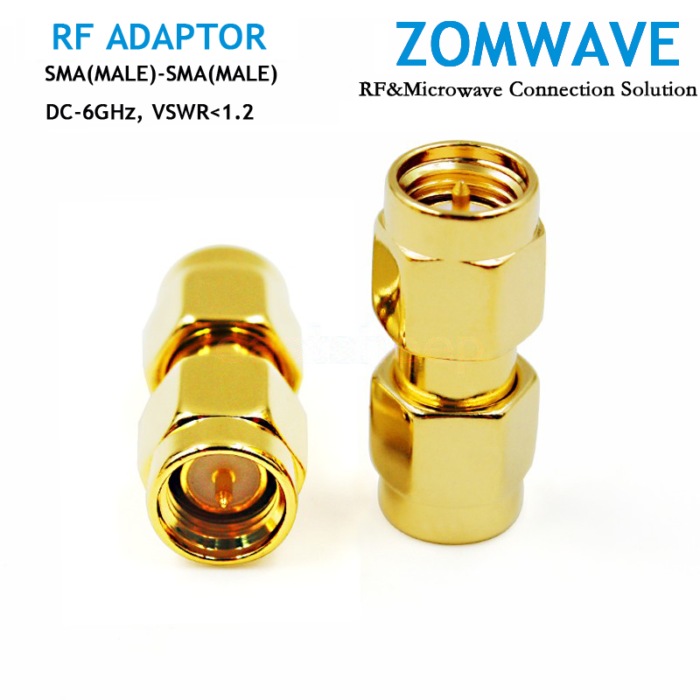

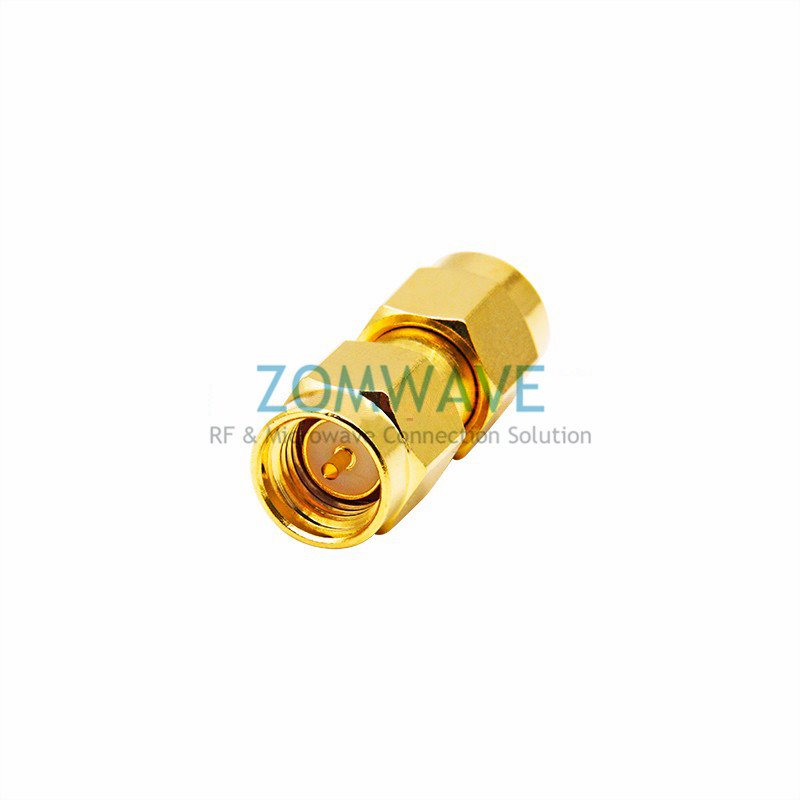

SMA Male to SMA Male Adapter, 6GHz
SMA Male to SMA Male Adapter, 6GHz
SMA Male to SMA Male Adapter, 6GHz
SMA Male to SMA Male Adapter, 6GHz
Click to enlarge
SMA Male to SMA Male Adapter, 6GHz
SMA Male to SMA Male Adapter, 6GHz
SMA Male to SMA Male Adapter, 6GHz
SMA Male to SMA Male Adapter, 6GHz

SMA Male to SMA Male Adapter, 6GHz

$3.33

Engineered for precision RF connectivity, the SMA male to SMA male adapter provides a reliable straight-through 50 Ω interconnection that preserves signal integrity across modules and subsystems. Constructed from robust brass with gold-over-nickel plating, this sma male to male adapter delivers superior corrosion resistance, long-term mechanical durability, and consistent mating performance in harsh industrial environments. Designed and manufactured by ZOMWAVE, this SMA male to coax adapter features low insertion loss and excellent VSWR up to 6 GHz, plus high power handling and low passive intermodulation for test equipment, communication systems, and monitoring networks. The precise engineering of this SMA male to SMA male adapter eliminates signal path discontinuities and ensures consistent impedance matching, reducing measurement variation and downtime during installation. Additional benefits include OEM customization options, streamlined inventory through broad connector compatibility, RoHS-compliant materials, and efficient global logistics that support volume procurement and rapid delivery. This cost-effective SMA male to SMA male adapter helps system integrators and professional users achieve repeatable high performance for 5G, IoT, and aerospace applications while meeting strict quality control and production requirements, and it also reduces connector wear and troubleshooting time through improved mechanical tolerances and repeatable torque performance.



Quantity Price Discount
1-9 $3.33 0%
10-49 $3.20 4%
50-99 $3.06 8%
100+ $2.80 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAP-MAP-SNM-04
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Male
Connector Body Material 1Brass with Gold Plated
Adatper Mount Method 1None
Connector Series 2SMA
Connector Gender 2Male
Connector Body Material 2Brass with Gold Plated
Adatper Mount Method 2None
Adatper AngleStraight
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)6GHz
VSWR≤1.2 (DC 0~6GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage1000V
Insulation Resistance≥5000Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

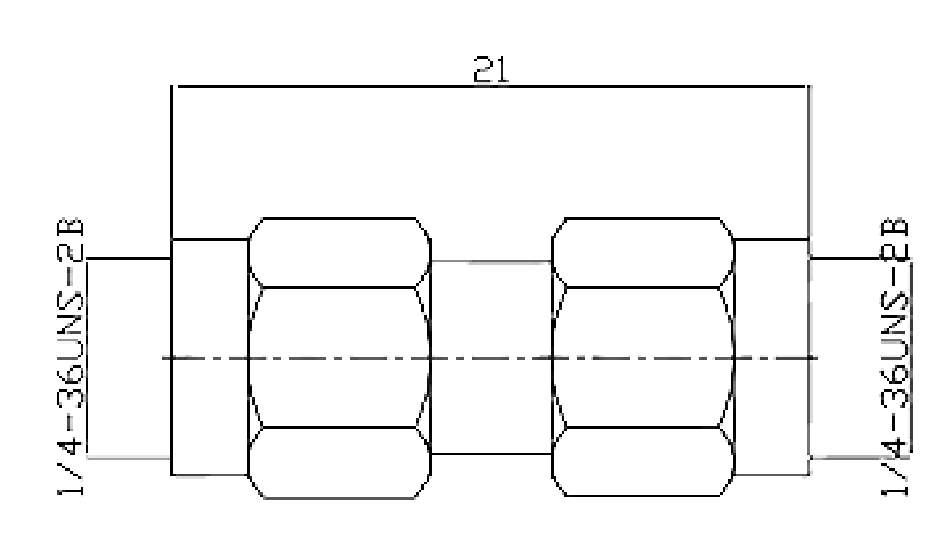

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
