SMA Male to MMCX Male Right Angle, Flexible .086''_SS405 Cable, 6GHz

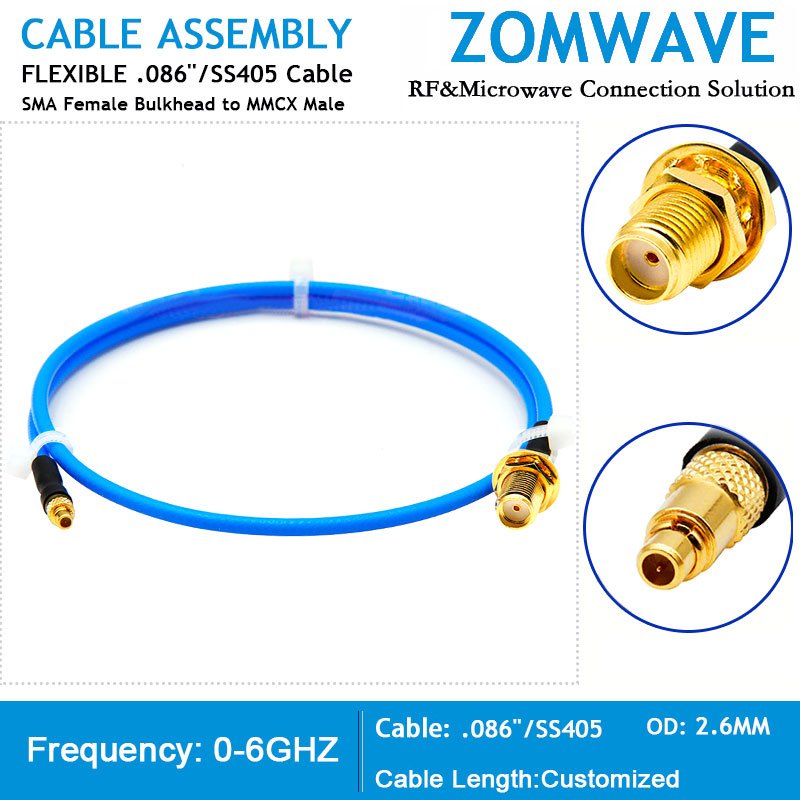

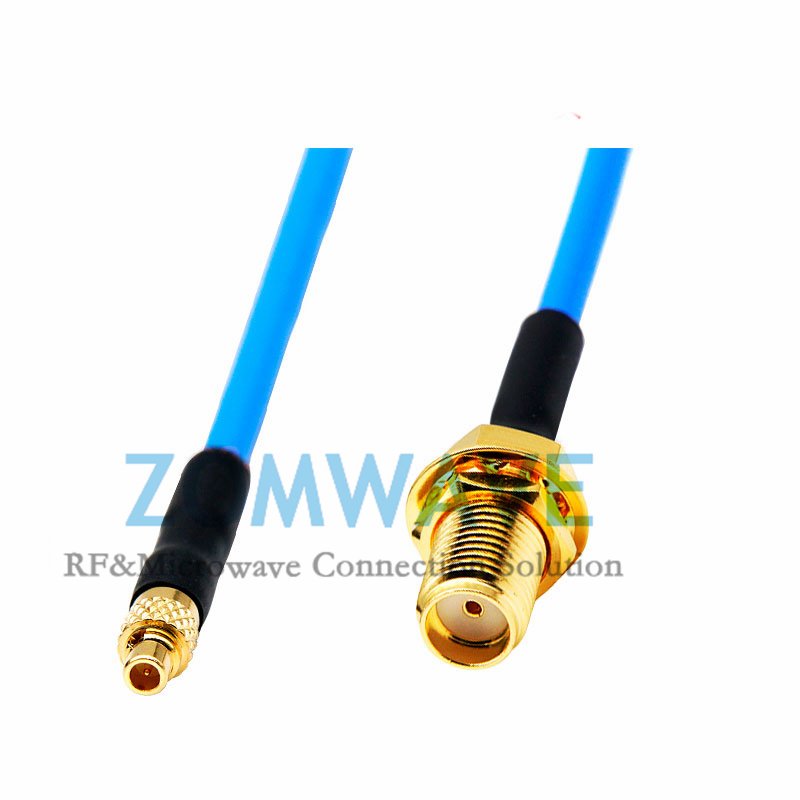

SMA Female Bulkhead to MMCX Male Flexible .086_ SS405 Cable,6GHz
Click to enlarge
SMA Male to MMCX Male Right Angle, Flexible .086''_SS405 Cable, 6GHz
SMA Female Bulkhead to MMCX Male Flexible .086_ SS405 Cable,6GHz

SMA Male to MMCX Male Right Angle, Flexible .086”_SS405 Cable, 6GHz

Price range: $11.69 through $21.74

ZOMWAVE provides RF coaxial cable assemblies including SMA Female Bulkhead to MMCX Male configurations and versatile mmcx sma cable solutions as part of our extensive coaxial cable selection for RF, microwave and millimeter wave interconnect applications. These reliable mmcx to sma cable assemblies are widely implemented across automotive, broadband, Industry 4.0, instrumentation, medical, military, quantum computing, smart agriculture and 5G wireless systems. The SMA Female Bulkhead to MMCX Male assembly utilizes Flexible .086 SS405 cable with solid center conductor, PTFE insulation, and combined silver-plated copper braided outer shield with spiral inner shield. This advanced dual-shield construction delivers excellent insertion loss performance, superior shielding effectiveness, and enhanced cable flexibility while solving critical space constraints in compact device designs. ZOMWAVE serves as a trusted source for high-quality mmcx sma cable assemblies with global shipping, offering custom variations including specialized mmcx to sma connector options that can be produced and shipped within 5 days to meet demanding project timelines and reduce installation complexity in high-density electronic systems.

Quantity Price Discount
1-9 $11.69 0%
10-49 $11.22 4%
50-99 $10.75 8%
100+ $9.82 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1SMA
Connector Gender 1Male
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Brass, Gold Plated
Connector Series 2MMCX
Connector Gender 2Male
Connector Angle 2Right Angle
Connector Mount Method 2None
Body Materials and Plating 2Brass, Gold Plated
Cable TypeFlexible .086''/ SS405
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.25:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)2.60±0.05
Min. Bending Radius(mm)10
Shielding Effect(dB)>90
Weight(kg/km)18 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.44
10.66
20.97
31.23
51.64
61.82
82.14
102.43
153.06
183.39

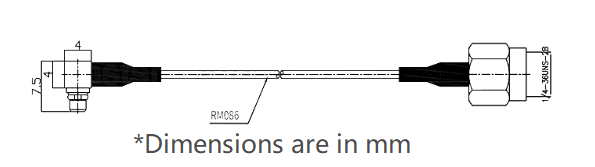

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
