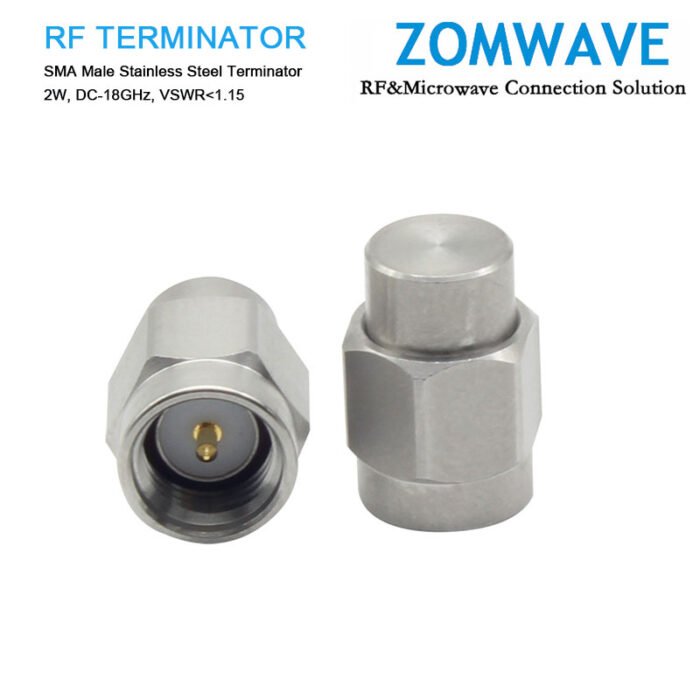

ZOMWAVE SMA Male Stainless Steel Terminator delivers a precise 50 ohm load for frequencies up to 18GHz and power handling up to 2W, engineered for rigorous RF testing and system applications. This sma 50 ohm load features a solid stainless steel body without a chain for extended mechanical life and stable performance under repeated use. As a high-quality sma 50 ohm terminator, it guarantees minimal signal reflection with an average maximum VSWR of 1.15:1, ensuring accurate measurements and system protection. These RoHS compliant terminators prevent impedance mismatch, enhance signal integrity, and help avoid measurement errors in communication and R&D environments. By offering reliable signal absorption, this sma rf termination safeguards sensitive instruments and supports uninterrupted operations. ZOMWAVE provides fast shipping within 5 days, combining cost efficiency with robust construction to minimize downtime and streamline your procurement process for professional RF solutions.
Key Specifications
| Configuration | |
| Adapter Series 1 | SMA |
| Adapter Gender 1 | Male |
| Adapter Angle 1 | Straight |
| Adapter Mount Method1 | None |
| Body Materials and Plating 1 | Stainless Steel Passivated |
| Electric Specifications | |
| Impedance | 50ohm |
| Frequency Range(From DC) | 18GHz |

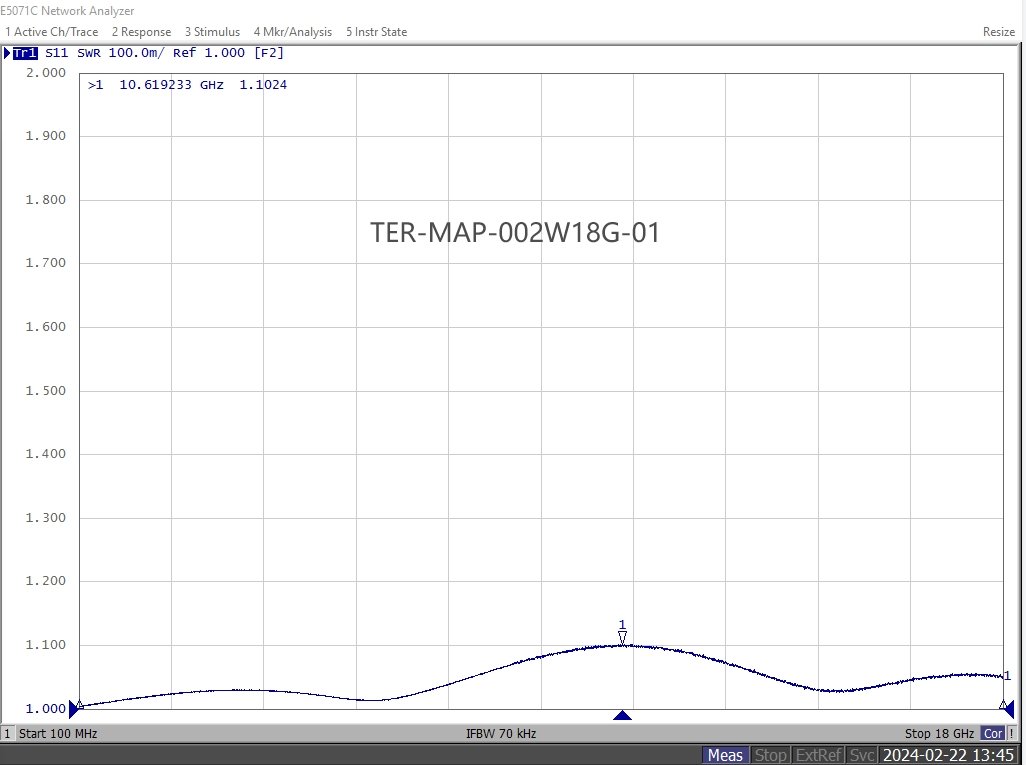

| VSWR | ≤1.15:1 (DC 0~18GHz) |
| Insertion Loss | ≤0.05xSqt(f_GHz) |
| Voltage Rating | 335 V(rms) |
| Dielectric Withstanding Voltage | 500 V |
| Maximum Power | 2W |
| Insulation Resistance | ≥500 Mohm |
| Mechanical Characteristics | |
| Mating Cycles | ≥ 500 cycles |
| Mating Torque | 5~7 in - lbs |
| Environmental Characteristics (RoHS Complliant) | |
| Operation Temperature Rating | -55°C ~ +100°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |

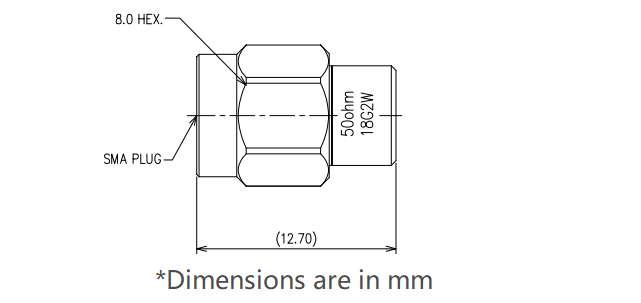

CAD Drawing
Dimensions in mm/ [inch], Tolerance +1%
