SMA Male Right Angle to BNC Male, RG316 Cable, 6GHz
SMA Male Right Angle to BNC Male, RG316 Cable, 6GHz
Click to enlarge
SMA Male Right Angle to BNC Male, RG316 Cable, 6GHz
SMA Male Right Angle to BNC Male, RG316 Cable, 6GHz

SMA Male Right Angle to BNC Male, RG316 Cable, 6GHz

Price range: $6.49 through $8.85

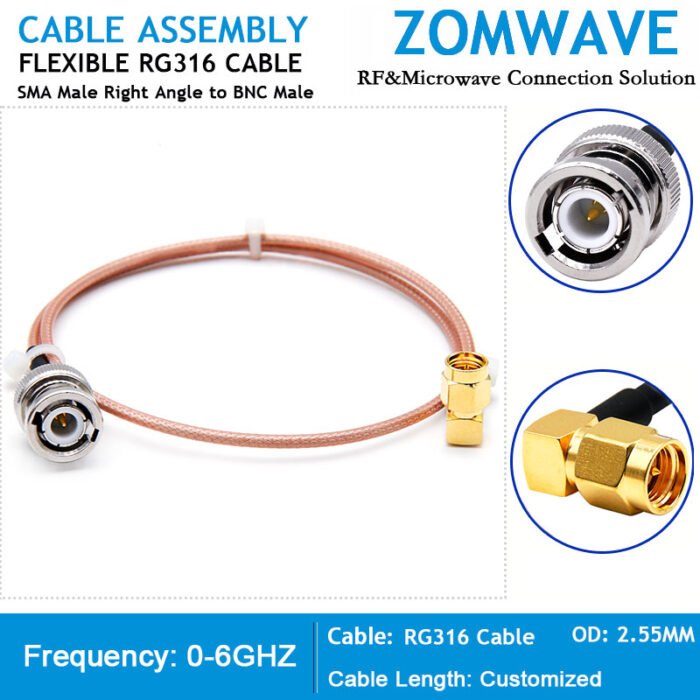

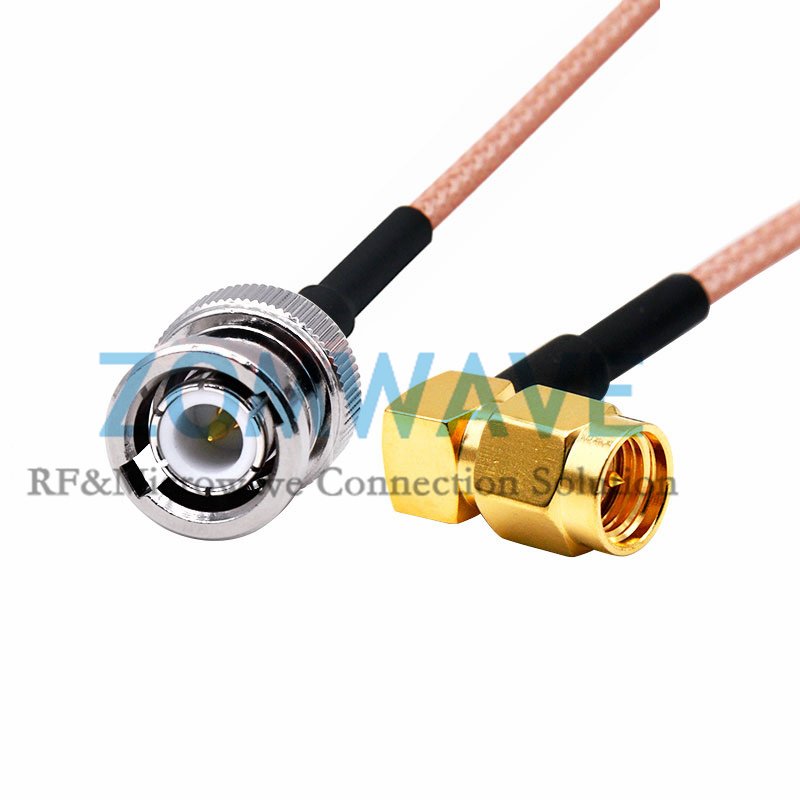

No MOQ, 5 days shipping out, 100% fully tested to ensure high quality. SMA Male Right Angle to BNC Male, RG316 Cable. ZOMWAVE RG316 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG316 coax is constructed with a 0.102 jacket made of FEP; assemblies are part of over 40,000 RF, microwave, and millimeter wave components. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The SMA Male Right Angle to BNC Male, RG316 Cable, SMA to BNC Cable, SMA Male to BNC Male Cable, RG316 SMA to BNC Cable Assembly is composed of Flexible RG316 Cable. The Flexible RG316 Cable is perfect for the interconnection of coaxial components or subsystem connections. The cable construction includes a silver-plated copper-clad steel center conductor, low-loss PTFE, and tin-overcoated copper shield braiding, which minimizes signal leakage. Connectors have a brass, nickel-plated coupling nut over a gold-plated connector body, which makes the connection more reliable. The Flexible RG316 Cables are available in a variety of lengths to meet your requirements. Variations of SMA to BNC cable assemblies can also be manufactured and will be shipped within 5 days with an extended -40 to +85 C operating range, MIL-STD-202 vibration, shock, thermal shock, moisture resistance, and over 80 dB shielding effectiveness.
Quantity Price Discount
1-9 $6.49 0%
10-49 $6.23 4%
50-99 $5.97 8%
100+ $5.45 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1SMA
Connector Gender 1Male
Connector Angle 1Right Angle
Connector Mount Method1None
Body Materials and Plating 1Brass, Gold Plated
Connector Series 2BNC
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Brass, Nickel Plated
Cable TypeRG316
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.35:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricPTFE
JacketFEP
Jacket Diameter(mm)2.50±0.05
Min. Bending Radius(mm)15
Shielding Effect(dB)>80
Weight(kg/km)16 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.10.29
0.40.58
0.90.88
10.93
1.81.27
2.41.46
31.65
52.14
62.34

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
