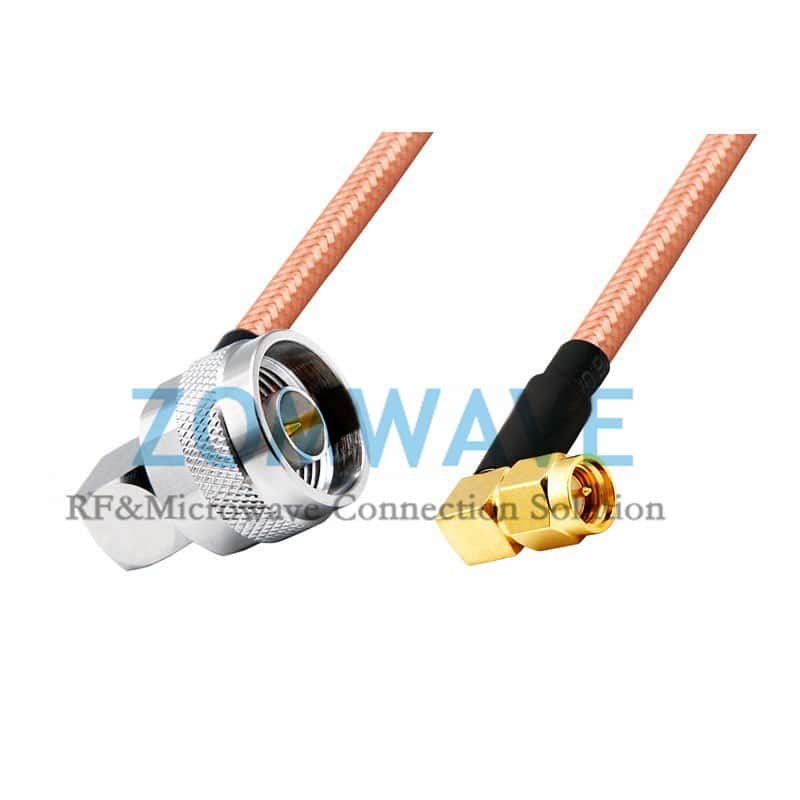

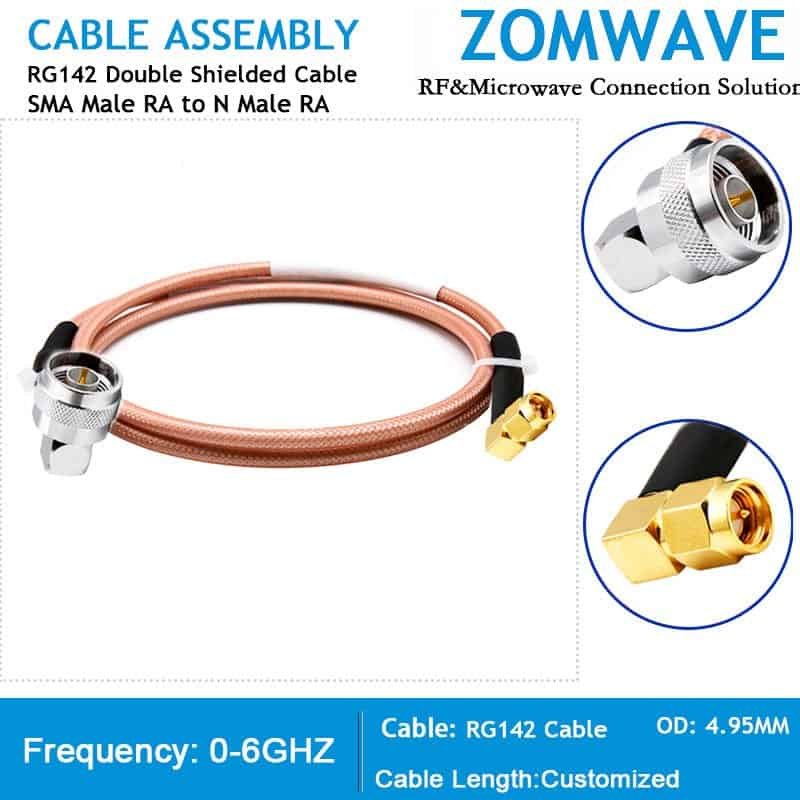

SMA Male Righ Angle to N Type Male Right Angle, RG142 Cable, 6GHz
SMA Male Righ Angle to N Type Male Right Angle, RG142 Cable, 6GHz
Click to enlarge
SMA Male Righ Angle to N Type Male Right Angle, RG142 Cable, 6GHz
SMA Male Righ Angle to N Type Male Right Angle, RG142 Cable, 6GHz

SMA Male Righ Angle to N Type Male Right Angle, RG142 Cable, 6GHz

Price range: $13.86 through $21.24

ZOMWAVE offers fast 5-day shipping on competitively priced SMA Male Right Angle to N Type Male RG142 Cable Assemblies, a key component of our extensive selection of RF, microwave, and millimeter-wave interconnect solutions. This specific assembly is constructed with high-performance RG142 Double Shielded Coaxial Cable, which features a solid center conductor and superior PTFE (polytetrafluoroethylene) rg142 insulation. This robust insulation, combined with a silver-plated copper braided outer shield and a silver-plated copper spiral inner shield, provides outstanding electrical properties. The multi-layer shielding structure ensures excellent insertion loss, superior shielding effectiveness, and improved cable flexibility for demanding applications.ZOMWAVE cable assemblies are engineered for reliability across a broad range of industries including automotive, broadband, Industry 4.0, instrumentation, medical, military, quantum computing, smart agriculture, and 5G wireless networks. We are your trusted source for high-quality SMA to N-Type cable assemblies, shipped quickly worldwide. Custom variations and lengths can be manufactured to meet specific performance requirements and are delivered with the same commitment to quality and rapid turnaround.

Quantity Price Discount
1-9 $13.86 0%
10-49 $13.31 4%
50-99 $12.75 8%
100+ $11.64 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1SMA
Connector Gender 1Male
Connector Angle 1Right Angle
Connector Mount Method1None
Body Materials and Plating 1Brass, Nickel Plated
Connector Series 2N Type
Connector Gender 2Male
Connector Angle 2Right Angle
Connector Mount Method 2None
Body Materials and Plating 2Brass, Nickel Plated
Cable Type RG142 Double Shielded
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.3:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center ConductorSilver plated copper
DielectricLow Density PTFE
JacketFEP (Brown)
Jacket Diameter(mm)4.95±0.15
Min. Bending Radius(mm)30
Shielding Effect(dB)>90
Weight(kg/km)66 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.32
10.46
1.80.63
2.40.72
30.82
51.07
61.18
