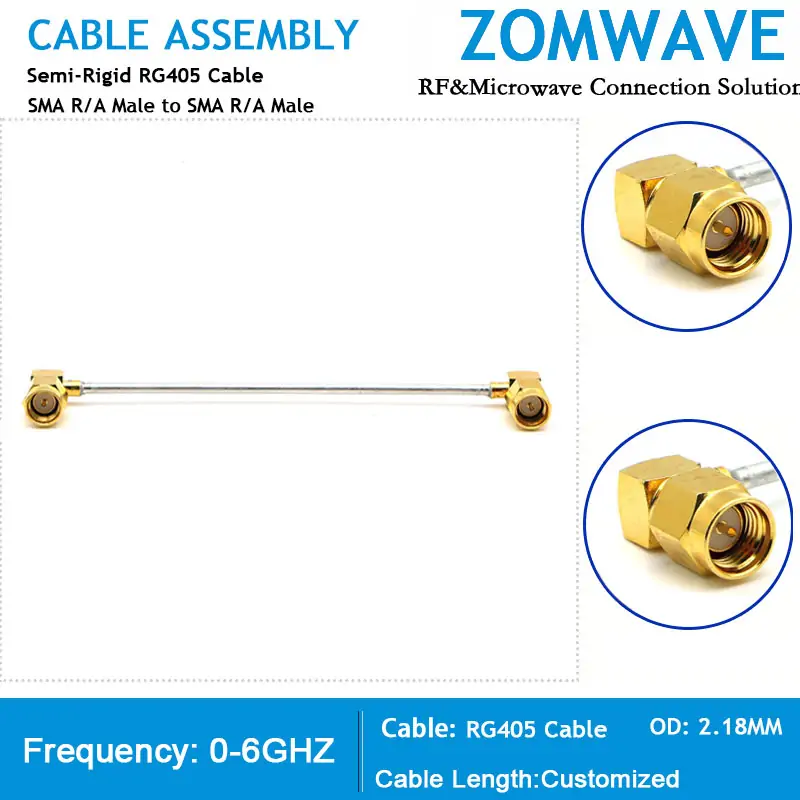

SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ
SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ
Click to enlarge
SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ
SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ

SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ

Price range: $12.19 through $16.21

Zomwave Semi-Rigid Cable Assembly delivers unrivaled signal integrity across an ultra-broad frequency range from DC up to 110 GHz, engineered for critical RF, microwave, and millimeter-wave applications. Built with a solid copper outer conductor and low-loss PTFE dielectric, it minimizes insertion loss and ensures stable phase performance. Ideal for aerospace & defense radar systems, 5G/6G telecom base stations, test & measurement instruments, medical diagnostic equipment, and automotive radar, our customizable assemblies support SMA, N-type, TNC, 2.92mm, 1.85mm connectors and comply with MIL-STD and RoHS standards, meeting your precise project requirements with trusted durability.

Quantity Price Discount
1-9 $12.19 0%
10-49 $11.70 4%
50-99 $11.21 8%
100+ $10.24 16%

   200+                                     Call US

   Get a lower discount price

12in
24in
36n
48in
Clear
SKU: N/A
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series 1SMA
Connector Gender 1Male
Connector Angle 1Right Angle
Connector Mount Method1None
Body Materials and Plating 1Brass Gold Plated
Connector Series 2SMA
Connector Gender 2Male
Connector Angle 2Right Angle
Connector Mount Method 2None
Body Materials and Plating 2Brass Gold Plated
Cable TypeSemi-Rigid RG405
Electric Specifications
Impedance50ohm
Frequency Range(From DC)6GHz
VSWR≤1.25:1 (DC 0~6GHz)
Insertion LossDepends on cable length
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque8 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +85°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Inner ConductorSilver plated copper
DielectricPTFE
Outer ConductorTin-Plated Copper Tube
Jacket Diameter(mm)2.18±0.05
Shielding Effect(dB)>110 (0~1G)
Weight(kg/km)/
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)Attenuation(dB/m)
0.50.44
10.66
20.97
31.23
51.54
61.72
82.00
102.23
183.09
203.29

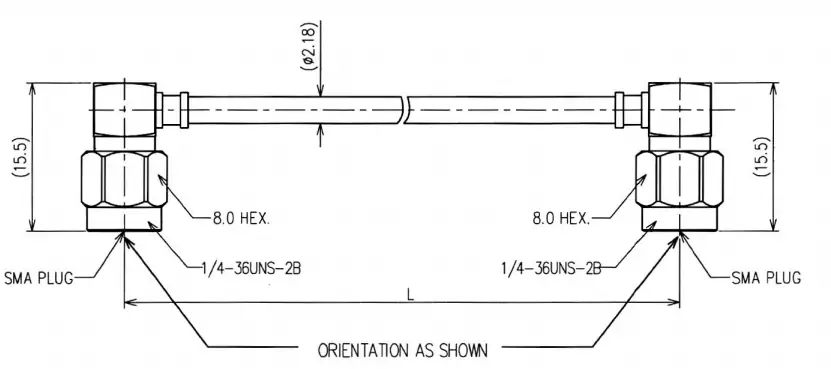

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
