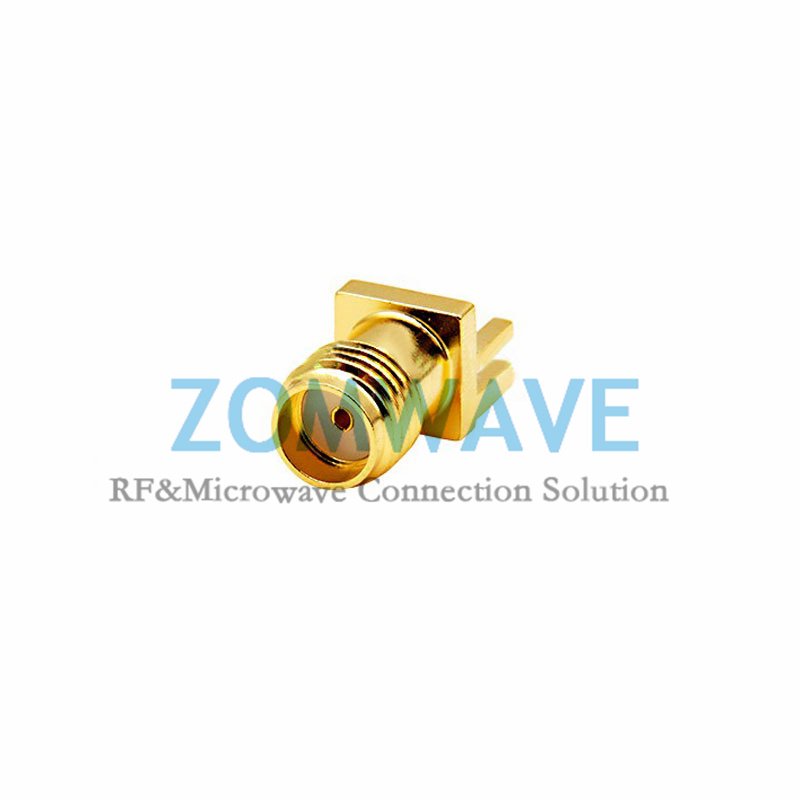

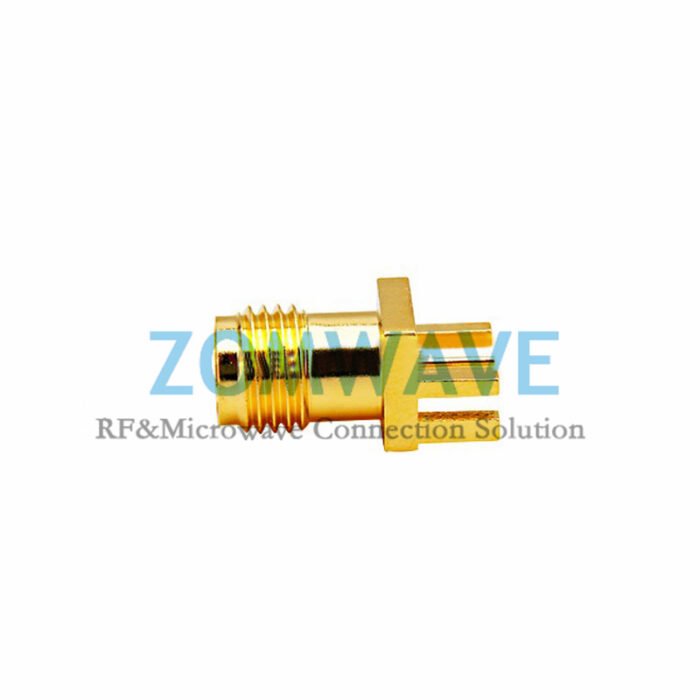

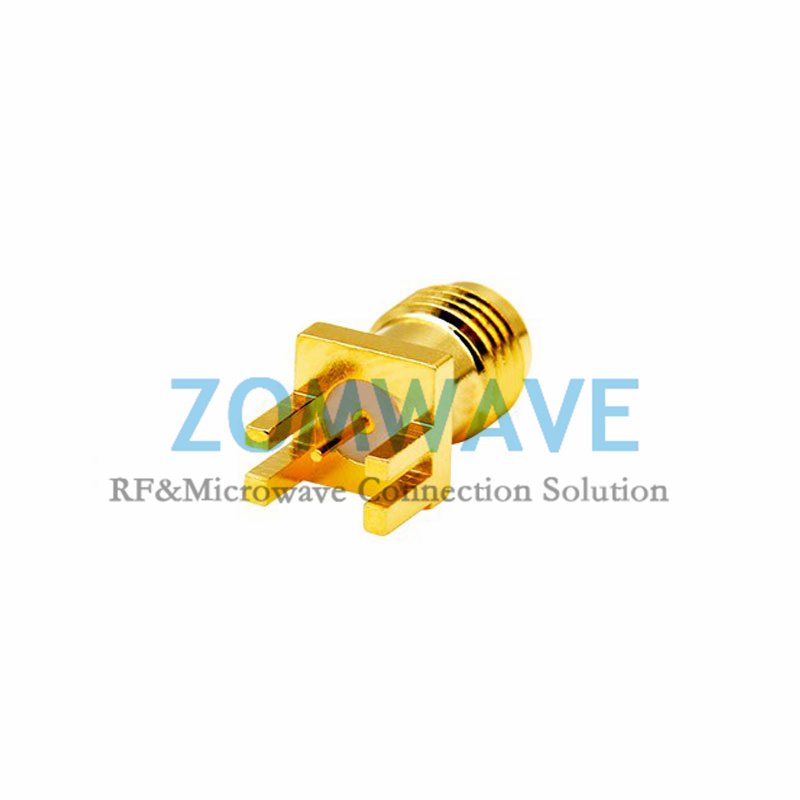

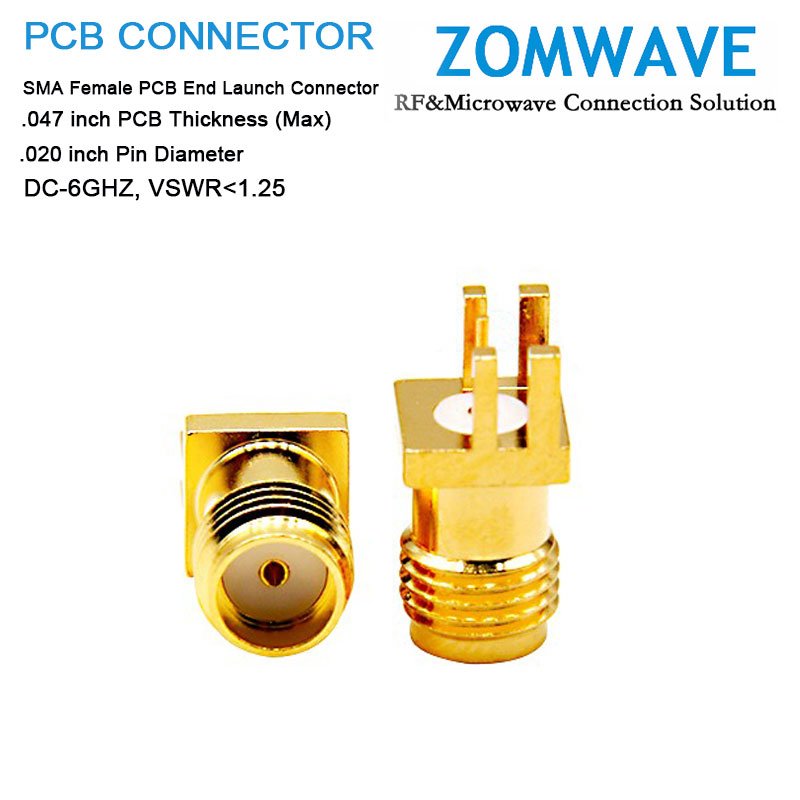

SMA (F)PCB End Launch, .047 inch PCB Thickness (Max), .020 inch Pin Diameter, 6G

$3.33

5 Days Ship Out. Negotiated Price. ZOMWAVE SMA Female PCB End Launch Connector .047 inch PCB Thickness Max .020 inch Pin Diameter features an End Launch interface and 50 Ohm impedance, using shield contact solder attachment for robust board retention. This SMA female PCB connector covers DC to 6 GHz with a PTFE dielectric and VSWR of 1.25, brass body with gold plating and beryllium copper contacts and meets RoHS and REACH requirements. Supplied from an extensive inventory for worldwide shipment and compatible with 2.4 mm interfaces, this SMA Female Straight Thru Hole PCB Connector is ideal for reliable board‑level RF connections where an end launch sma connector or PCB mount sma connector is required. Added advantages include PCB layout guidance, turnkey assembly kits, thermal modeling, solder joint reliability data, automated assembly compatibility and detailed test reports to speed integration, improve manufacturability, reduce field failures, shorten qualification cycles and lower total cost of ownership. For compact or right‑angle routing needs, consider the sma female angle PCB mount RF connector​ , which eases routing congestion, improves strain relief, supports pick‑and‑place footprints, and offers optional plating and serialized test data to accelerate acceptance and reduce rework.
Quantity Price Discount
1-9 $3.33 0%
10-49 $3.20 4%
50-99 $3.06 8%
100+ $2.80 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJS-NMSS-PEDM-99

Key specifications

Configuration
Connector Series SMA
Connector Gender Female
Connector AngleStraight
Connector Mount MethodNone
Attachment MethodSolder
Interface TypeEnd Launch
Material
Centre ContactBerylium-copper, gold plated
BodyBrass, gold plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)6GHZ
VSWR≤1.25:1 (DC 0~6GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

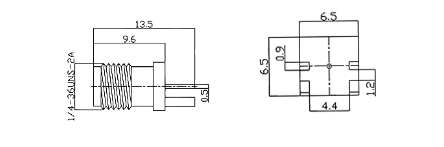

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
