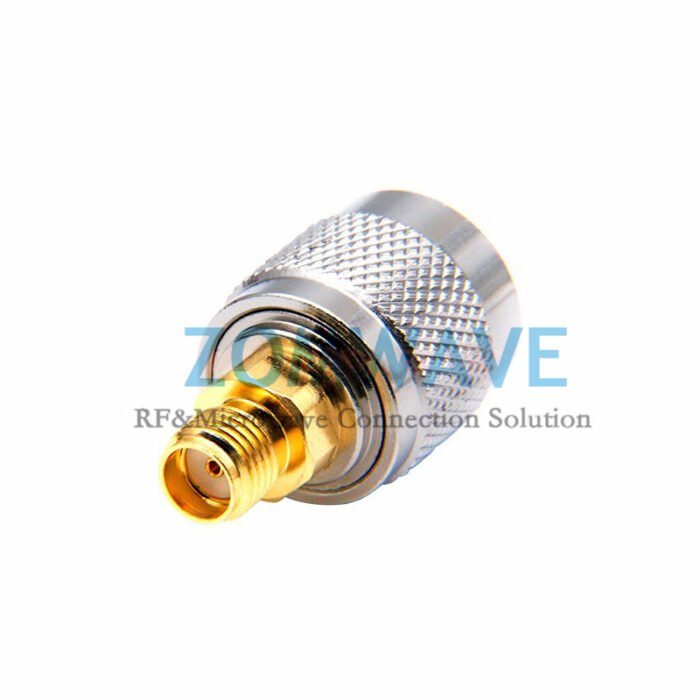

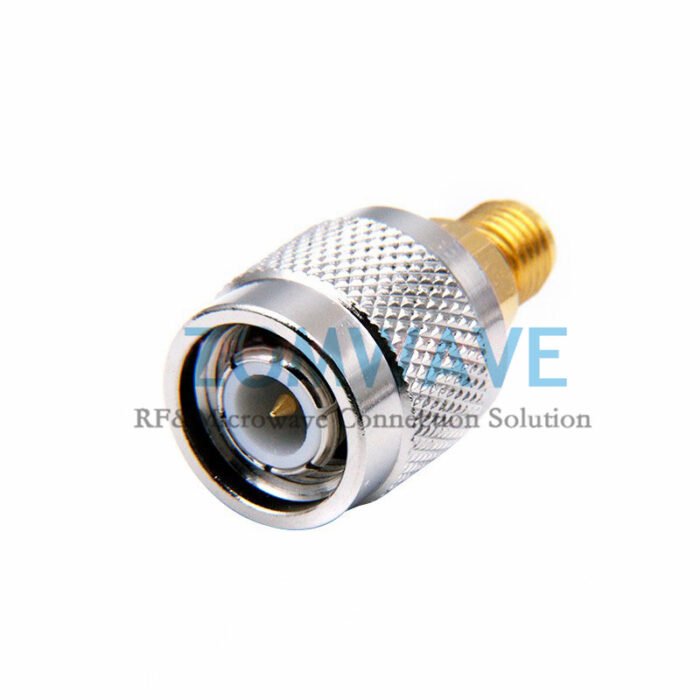

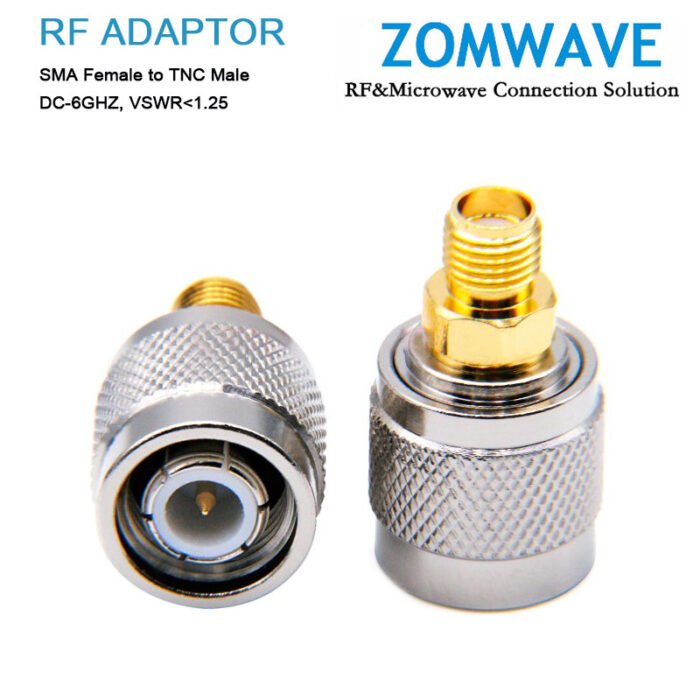

SMA Female to TNC Male Adapter, 6GHz
SMA Female to TNC Male Adapter,6GHZ
SMA Female to TNC Male Adapter,6GHZ
SMA Female to TNC Male Adapter,6GHZ
Click to enlarge
SMA Female to TNC Male Adapter, 6GHz
SMA Female to TNC Male Adapter,6GHZ
SMA Female to TNC Male Adapter,6GHZ
SMA Female to TNC Male Adapter,6GHZ

SMA Female to TNC Male Adapter, 6GHz

$3.67

The SMA Female to TNC Male Adapter is perfect for interconnection of coaxial components or sub-systems connection. This 50 ohm adapter has a straight body. Our SMA Female to TNC Male Adapter is brass nikel plated that is cost-effetive for use. ZOMWAVE SMA to TNC Adapter has excellent VSWR performance with frequency up to 6GHz



Quantity Price Discount
1-9 $3.67 0%
10-49 $3.52 4%
50-99 $3.38 8%
100+ $3.08 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJ-TNP-SNM-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Female
Connector Body Material 1Brass Gold Plated
Adatper Mount Method 1None
Connector Series 2TNC
Connector Gender 2 Male
Connector Body Material 2Brass,Nickel Plated
Adatper Mount Method 2None
Adatper AngleStraight
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)6GHz
VSWR≤1.25 (DC 0~6GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage1000V
Insulation Resistance≥5000Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

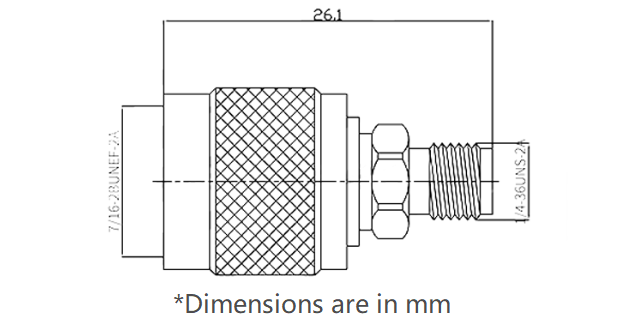

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
