The SMA to SMA coaxial adapter provides reliable interconnection for coaxial components and subsystem integration. This 50 ohm straight-body adapter maintains excellent electrical characteristics while offering superior mechanical stability. For applications requiring different configurations, the right angle sma adapter solves space constraint challenges in dense equipment layouts, while the sma female to sma female adaptor enables direct gender-matched connections without compromising signal integrity. Constructed with precision brass components featuring gold over nickel plating, ZOMWAVE adapters deliver optimal performance across frequencies up to 60GHz for straight configurations and 18GHz for right-angle versions. These robust interfaces effectively address impedance matching requirements, minimize signal reflection, and withstand repeated connection cycles in test instrumentation, telecommunications, and aerospace applications. Our adapters ensure consistent VSWR performance while providing cost-effective solutions for both prototyping and production environments where reliable RF connectivity is critical.

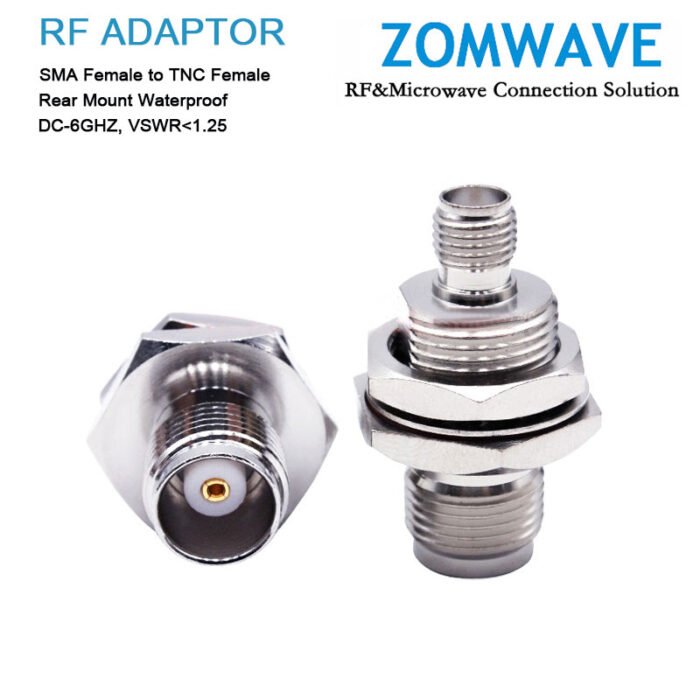

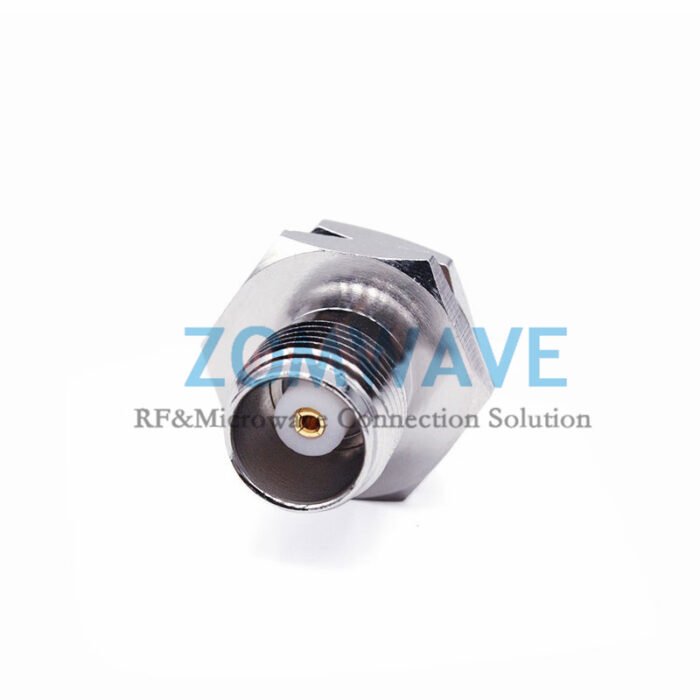

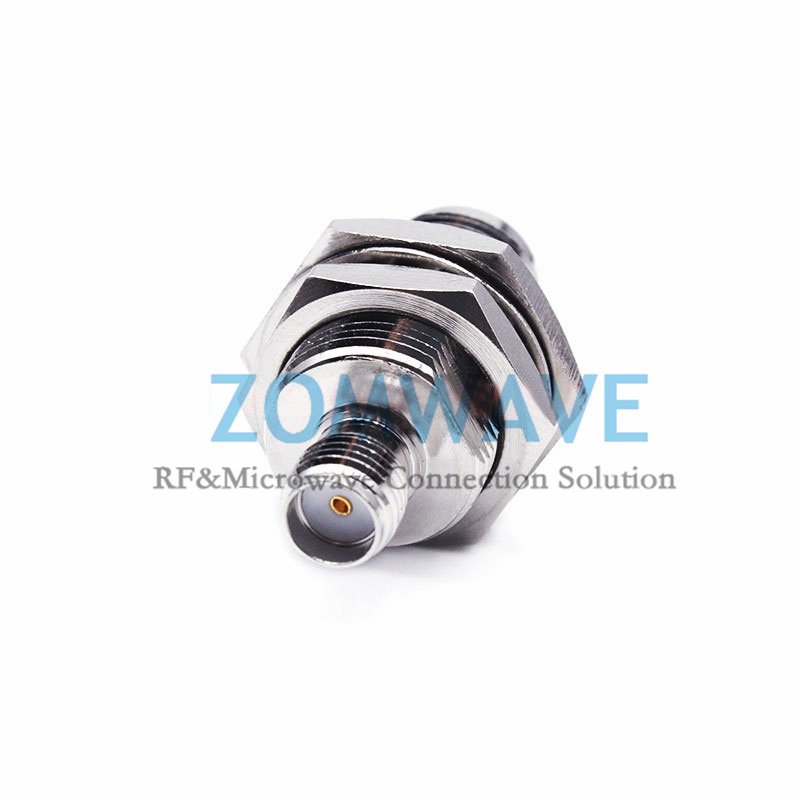

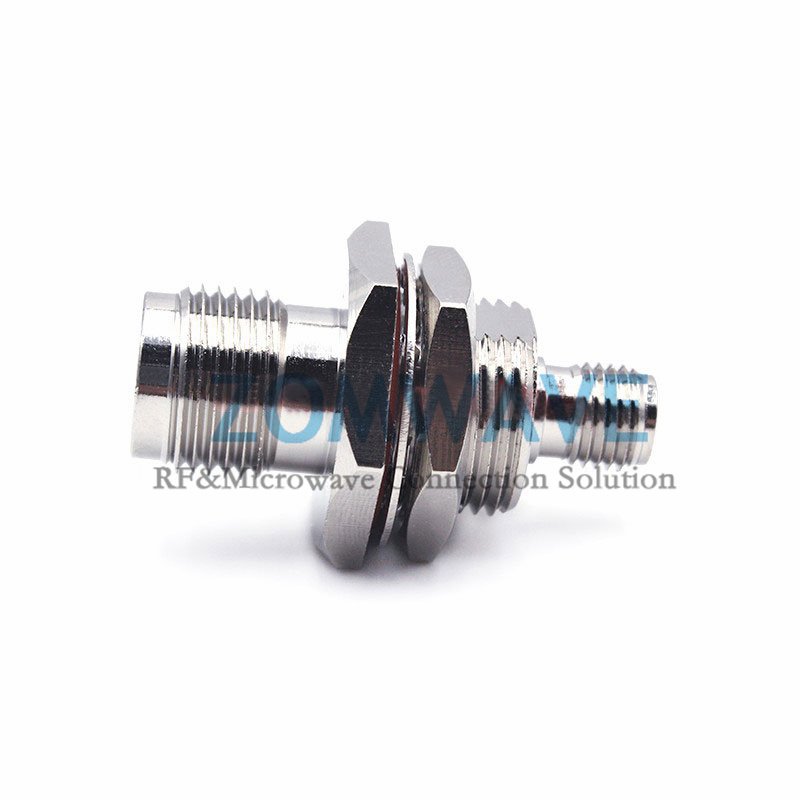

Key Specifications
| Configuration | |
| Connector Series 1 | SMA |
| Connector Gender 1 | Female |
| Connector Body Material 1 | Brass,Nickel Plated |
| Adatper Mount Method 1 | Rear Mount Waterproof |
| Connector Series 2 | TNC |
| Connector Gender 2 | Female |
| Connector Body Material 2 | Brass,Nickel Plated |
| Adatper Mount Method 2 | Rear Mount Waterproof |
| Adatper Angle | Straight |
| Electrical Specifications | |
| Impedance | 50 ohm |
| Frequency Range(From DC) | 6GHz |
| VSWR | ≤1.25 (DC 0~6GHz) |
| Insertion Loss | ≤0.05xSqt(f_GHz) |
| Voltage Rating | 335 V(rms) |
| Dielectric Withstanding Voltage | 1000V |
| Insulation Resistance | ≥5000Mohm |
| Mechanical Characteristics | |
| Mating Cycles | ≥ 500 cycles |
| Mating Torque | 5~7 in - lbs |
| Environmental Characteristics (RoHS Complliant) | |
| Temperature Rating | -45°C ~ +125°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |

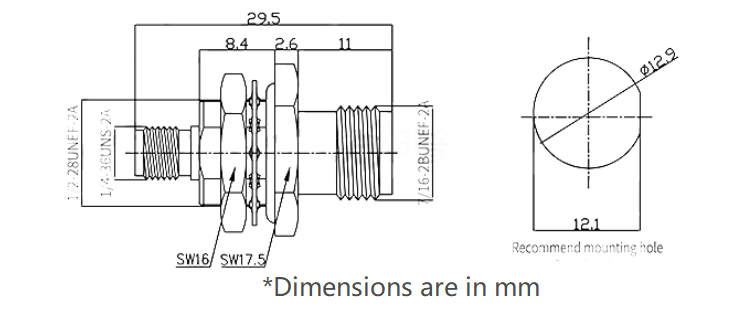

CAD Drawing
Dimensions in mm/ [inch], Tolerance +1%
