Quantity

Price

Discount

1-9

$11.67

10-49

$11.20

50-99

$10.74

100+

$9.80

16%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

ZOMWAVE's SMA to SMA coaxial adapters provide reliable interconnection for coaxial components and subsystem integration. These 50 ohm straight-body adapters maintain excellent electrical characteristics with superior mechanical stability. For varied configurations, the sma right angle adapter solves space constraints in dense layouts, while the sma female to female adapter enables direct gender-matched connections. Specific models, such as our stainless steel 26.5ghz sma adapter, are engineered for extended durability and consistent performance in demanding environments. Constructed with precision brass or stainless steel components featuring gold over nickel plating, these sma to sma adapters deliver optimal performance, supporting frequencies up to 60GHz for straight configurations and 26.5GHz for right-angle versions. They address impedance matching, minimize signal reflection with an ultra-low VSWR, and withstand repeated connection cycles. These robust interfaces are essential for test instrumentation, telecommunications, and aerospace applications, ensuring reliable RF connectivity by solving problems like signal path loss and connector wear in both prototyping and production settings.

SMA female to SMA male adapter is engineered for reliable interconnection of coaxial components and subsystem assemblies, delivering consistent 50 ohm impedance and low insertion loss for stable RF performance. Featuring a straight-body form factor for compact inline mounting and simplified panel or cable routing, our SMA to SMA coaxial adapter uses brass with gold and nickel plating to provide durable mechanical contact and cost-effective corrosion resistance for production plus quickfit and improved assembly speed. ZOMWAVE adapter offers excellent VSWR up to 6GHz, ideal for test, instrumentation, RF signal chains. For gender conversion and compatibility searches the product also serves as a sma male to sma female adapter without compromising performance.

Configuration
Connector Series 1	SMA
Connector Gender 1	Female
Connector Body Material 1	Brass, Gold Plated
Adatper Mount Method 1	None
Connector Series 2	SSMC
Connector Gender 2	Female
Connector Body Material 2	Brass, Gold Plated
Adatper Mount Method 2	None
Adatper Angle	Straight
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	6GHz
VSWR	≤1.25 (DC 0~6GHz)
Insertion Loss	≤0.05xSqt(f_GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	1000V
Insulation Resistance	≥5000Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

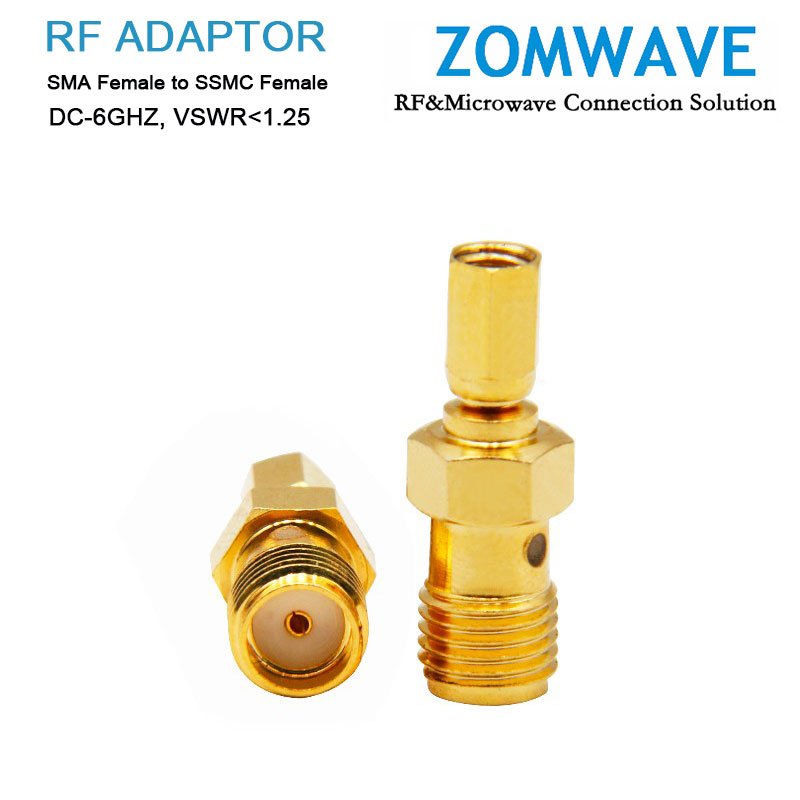

SMA Female to SSMC Female Adapter, 6GHz

Key Specifications

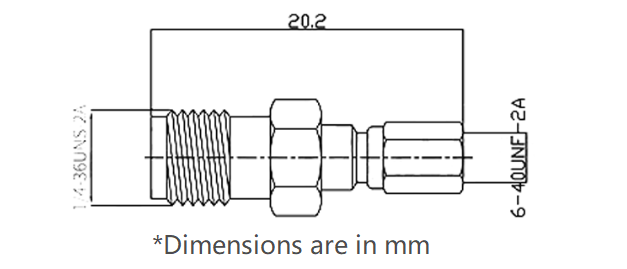

CAD Drawing
