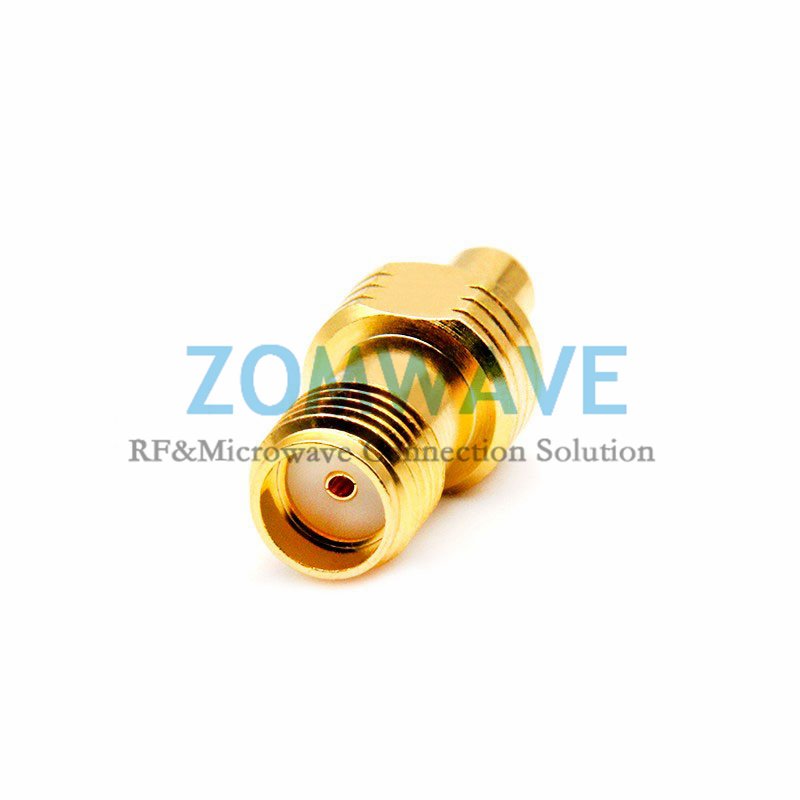

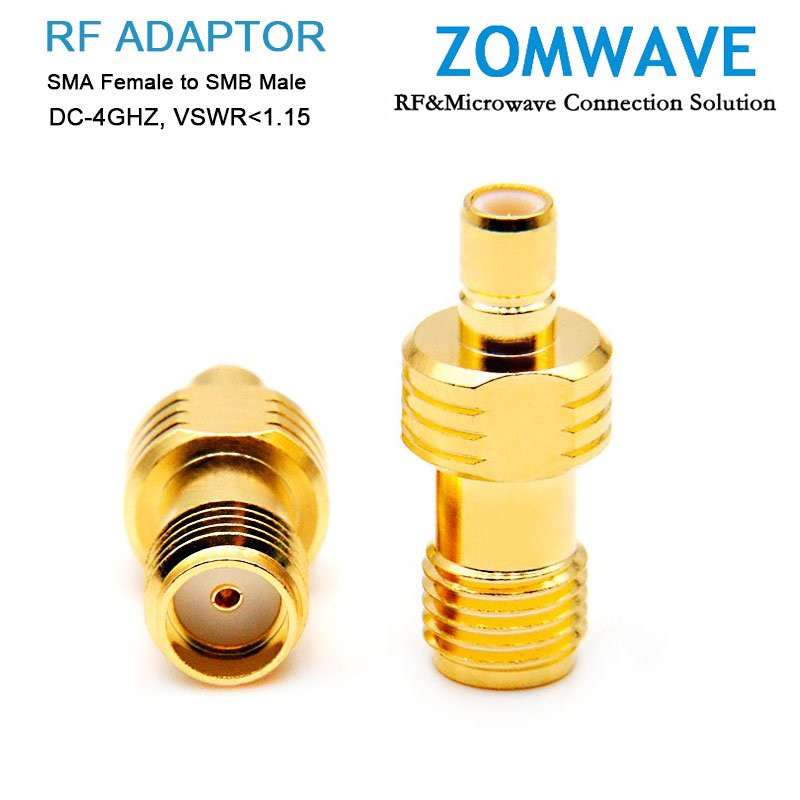

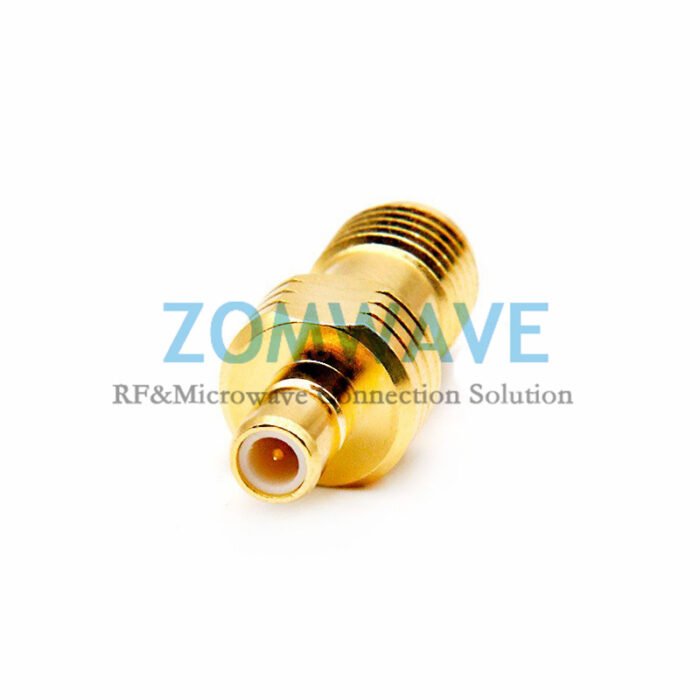

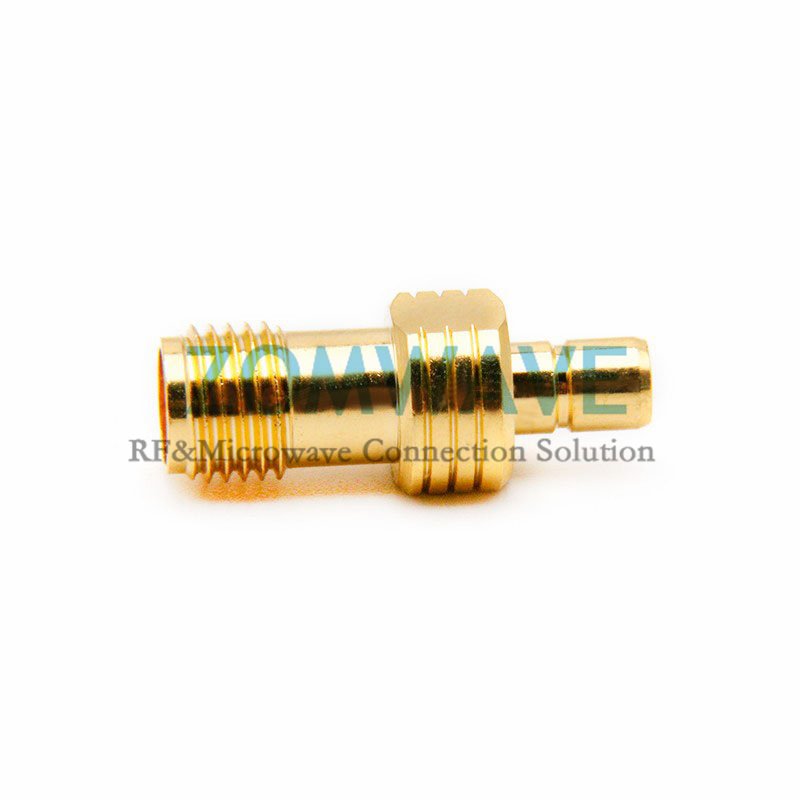

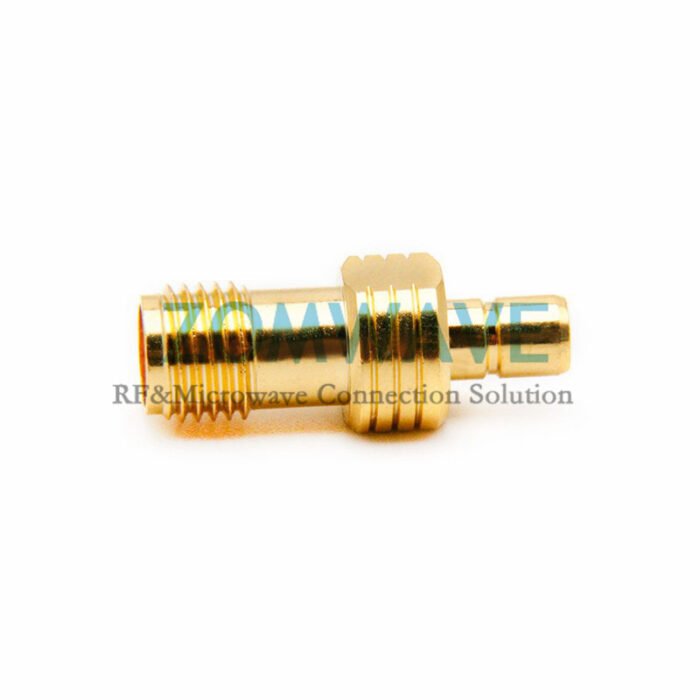

SMA Female to SMB Male Adapter, 4GHz
SMA Female to SMB Male Adapter,4GHZ
SMA Female to SMB Male Adapter,4GHZ
SMA Female to SMB Male Adapter,4GHZ
Click to enlarge
SMA Female to SMB Male Adapter, 4GHz
SMA Female to SMB Male Adapter,4GHZ
SMA Female to SMB Male Adapter,4GHZ
SMA Female to SMB Male Adapter,4GHZ

SMA Female to SMB Male Adapter, 4GHz

$6.67

SMA female to smb male adapter from ZOMWAVE ships in five days with negotiable pricing, providing dependable coaxial interconnection for subsystem and component assemblies. This 50 Ω straight body sma to smb adapter is machined from brass and finished with gold over nickel plating for durable, cost effective performance and precision fit. Engineered for operation to 4 GHz, the adapter delivers outstanding VSWR and minimal insertion loss while supporting reverse configurations without compromising signal integrity. Ideal for instrumentation, wireless communications, test equipment and harsh industrial environments, ZOMWAVE manufactures each unit to tight tolerances and ships worldwide to meet exact RF interconnect requirements.



Quantity Price Discount
1-9 $6.67 0%
10-49 $6.40 4%
50-99 $6.14 8%
100+ $5.60 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJ-MBJ-SNM-01
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Female
Connector Body Material 1Brass, Gold Plated
Adatper Mount Method 1None
Connector Series 2SMB
Connector Gender 2Male
Connector Body Material 2Brass, Gold Plated
Adatper Mount Method 2None
Adatper AngleStraight
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)4GHz
VSWR≤1.15 (DC 0~4GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage1000V
Insulation Resistance≥5000Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

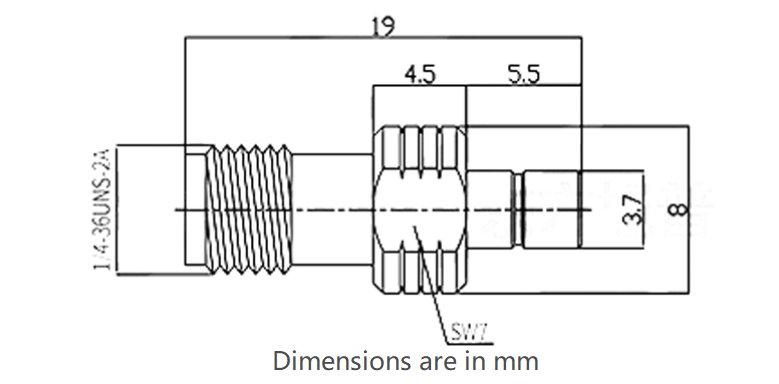

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
