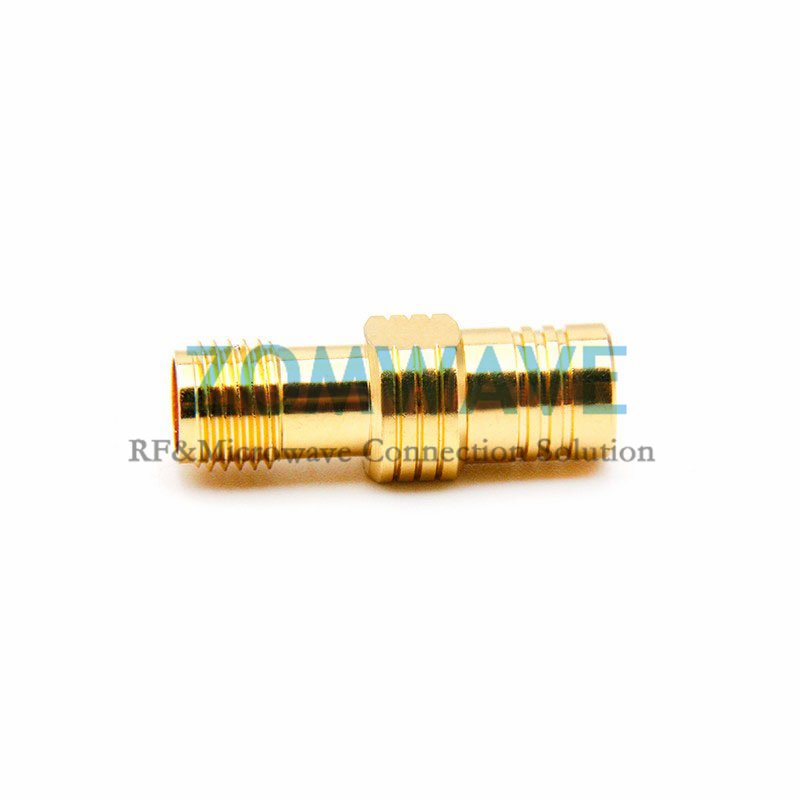

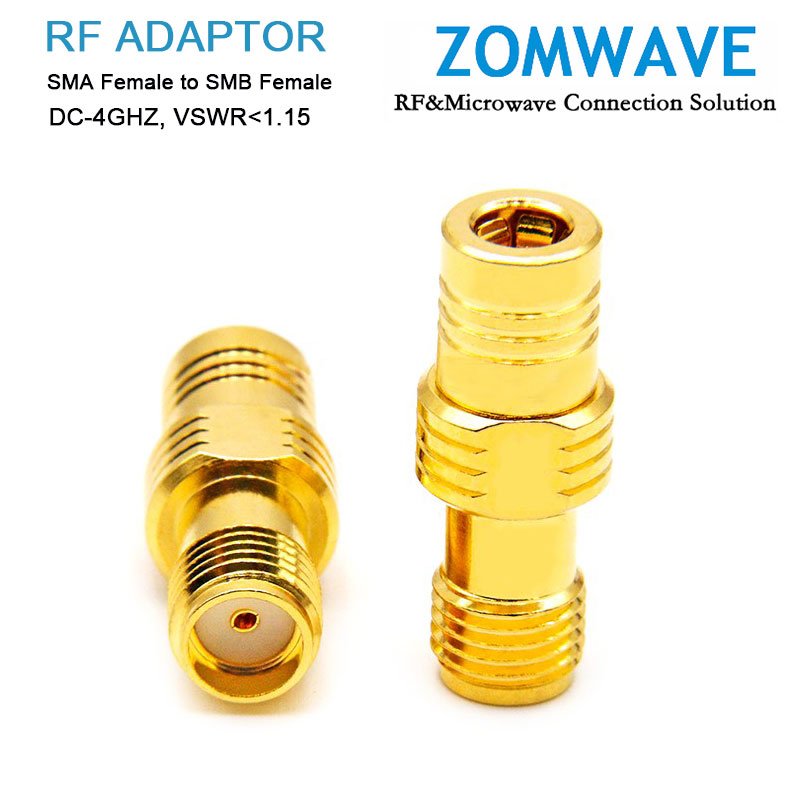

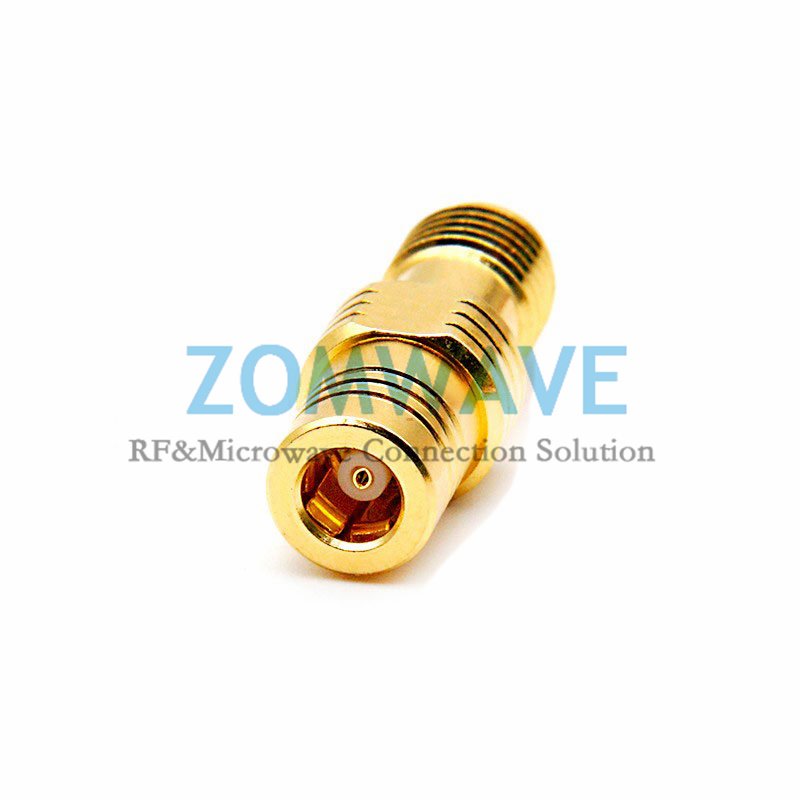

SMA Female to SMB Female Adapter, 4GHz
SMA Female to SMB Female Adapter 4GHZ
SMA Female to SMB Female Adapter 4GHZ
Click to enlarge
SMA Female to SMB Female Adapter, 4GHz
SMA Female to SMB Female Adapter 4GHZ
SMA Female to SMB Female Adapter 4GHZ

SMA Female to SMB Female Adapter, 4GHz

$6.67

The ZOMWAVE SMB SMA adapter (SMA Female to SMB Female) enables reliable interconnection of coaxial components and subsystems. Featuring a straight-body 50Ω brass construction with gold/nickel plating, this smb sma adapter delivers cost-effective durability without compromising performance. Engineered for frequencies up to 4GHz, it maintains excellent VSWR characteristics for RF integrity in test setups, telecom infrastructure, and industrial systems requiring precise signal transfer between connector standards.



Quantity Price Discount
1-9 $6.67 0%
10-49 $6.40 4%
50-99 $6.14 8%
100+ $5.60 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJ-MBJ-SNM-99
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Connector Series 1SMA
Connector Gender 1Female
Connector Body Material 1Brass, Gold Plated
Adatper Mount Method 1None
Connector Series 2SMB
Connector Gender 2Female
Connector Body Material 2Brass, Gold Plated
Adatper Mount Method 2None
Adatper AngleStraight
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)4GHz
VSWR≤1.15 (DC 0~4GHz)
Insertion Loss≤0.05xSqt(f_GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage1000V
Insulation Resistance≥5000Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-40°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

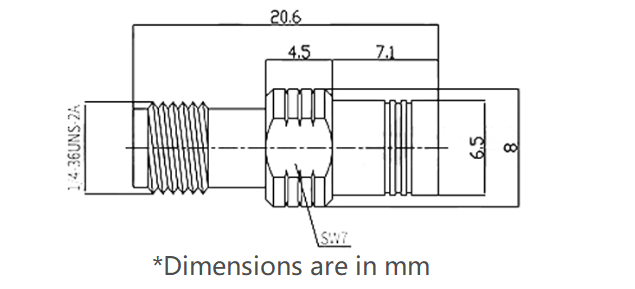

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
