Engineered for robust and reliable connectivity, the ZOMWAVE RF N Type Female to SMA Female Adapter delivers high-performance signal transmission for professional RF and microwave applications. This precision n type to sma adapter and versatile sma to n type adapter solution is designed with a straight-body 50 Ω construction, featuring a durable gold-nickel plated brass body and beryllium copper contacts for excellent conductivity and mechanical stability. It supports frequencies up to 60 GHz with superior VSWR performance, low insertion loss, and consistent mating compatibility. The adapter’s four-hole flange design provides exceptional mounting stability that prevents rotation under torque, effectively solving vibration-related signal integrity issues in demanding installations. Ideal for test and measurement, telecom infrastructure, and high-frequency systems, this n type to sma connector ensures smooth transitions between interfaces with repeatable connectivity and long-term durability. It helps reduce signal reflection and system downtime while maintaining precise impedance matching across extended temperature ranges, providing dependable performance in demanding commercial and production environments. RoHS compliant and designed for procurement efficiency, ZOMWAVE offers this industrial-grade adapter as part of a broad portfolio of over 40,000 RF components, available for fast global shipment and customized bulk orders to support volume production requirements.

Quantity

Price

Discount

1-9

$29.33

10-49

$28.16

50-99

$26.98

100+

$24.64

16%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration
Connector Series 1	SMA
Connector Gender 1	Female
Connector Body Material 1	Brass, Nickel Plated
Adatper Mount Method 1	4 Hole Flange
Connector Series 2	N type
Connector Gender 2	Female
Connector Body Material 2	Brass, Nickel Plated
Adatper Mount Method 2	4 Hole Flange
Adatper Angle	Straight
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	18GHz
VSWR	≤1.2 (DC 0~6GHz)
Insertion Loss	≤0.05xSqt(f_GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	1000V
Insulation Resistance	≥5000Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

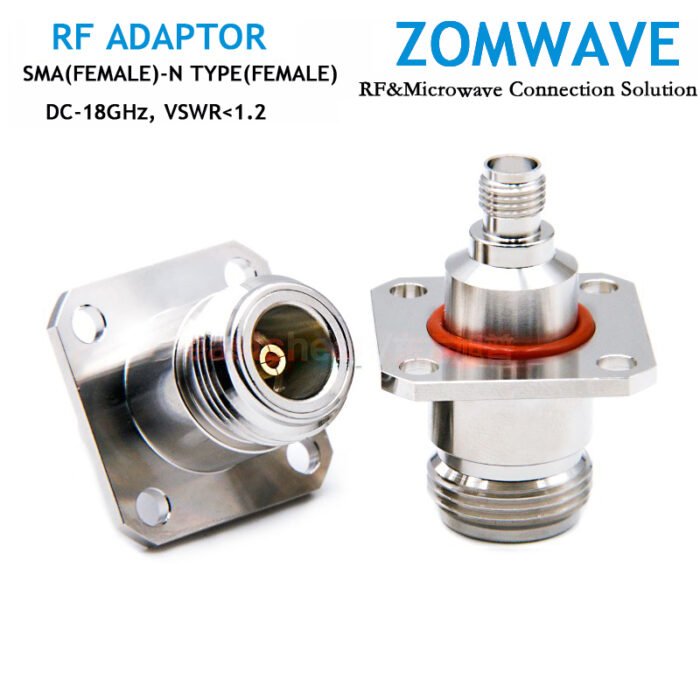

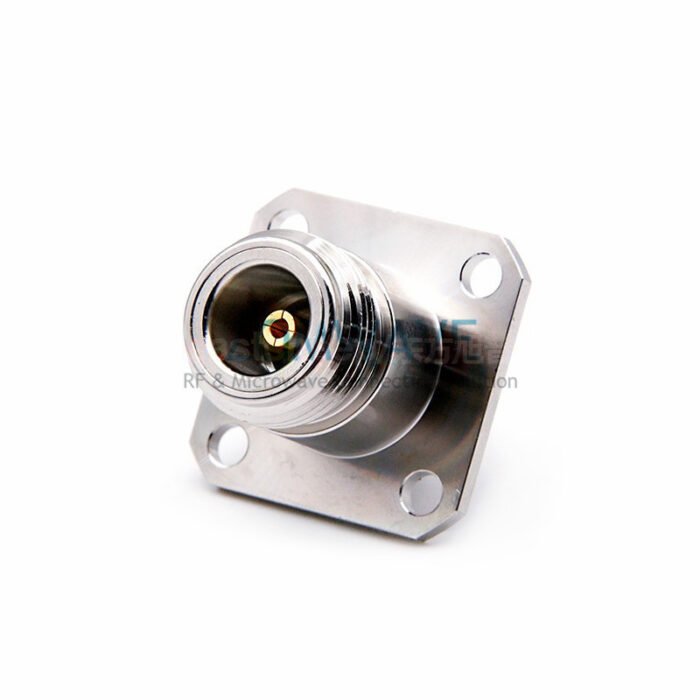

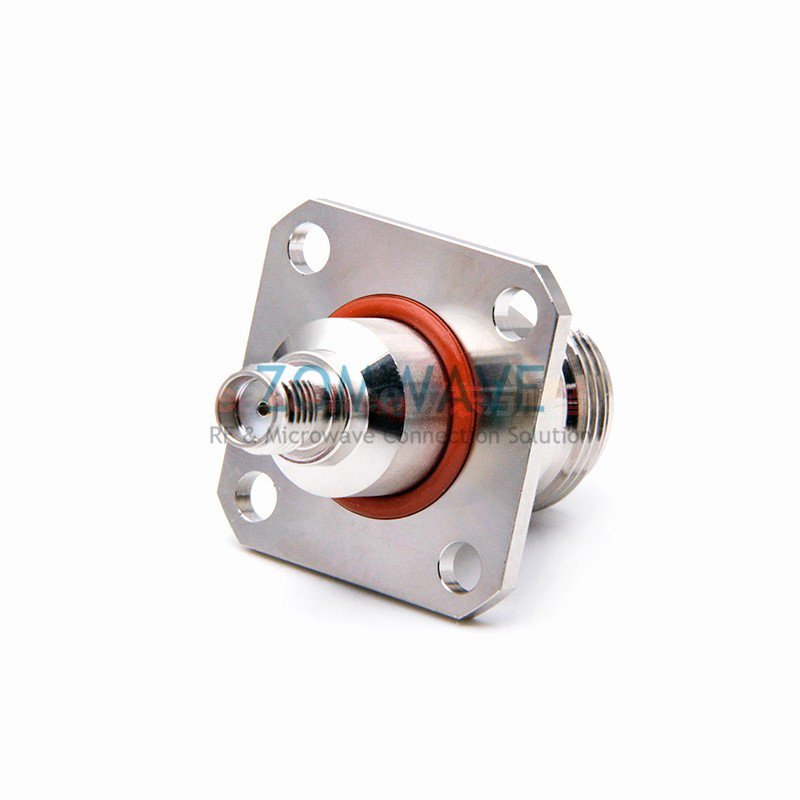

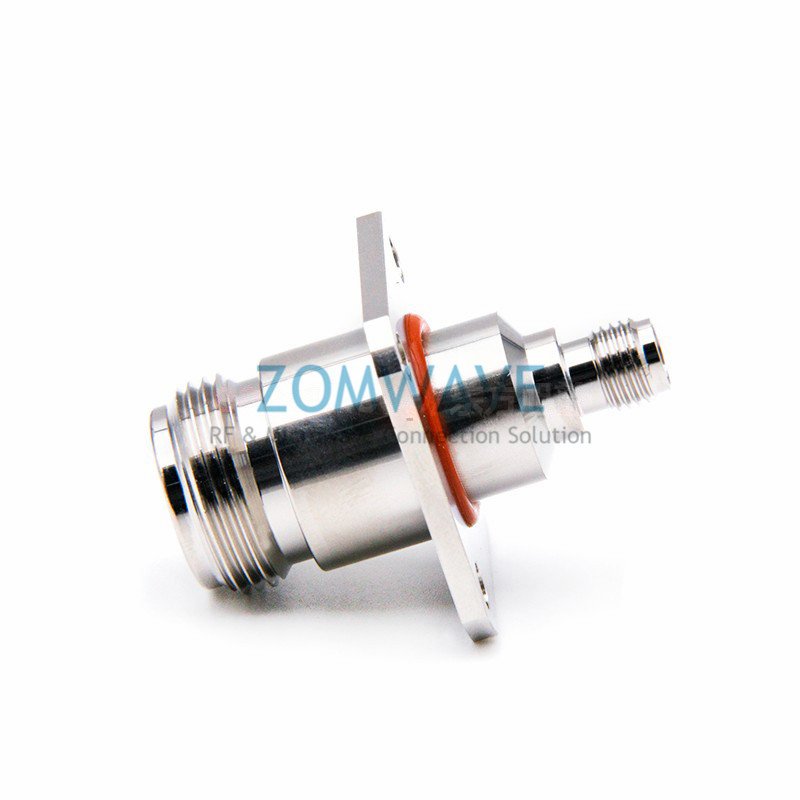

SMA Female to N Type Female Adapter, 4 Hole Flange, 18GHz

Key Specifications

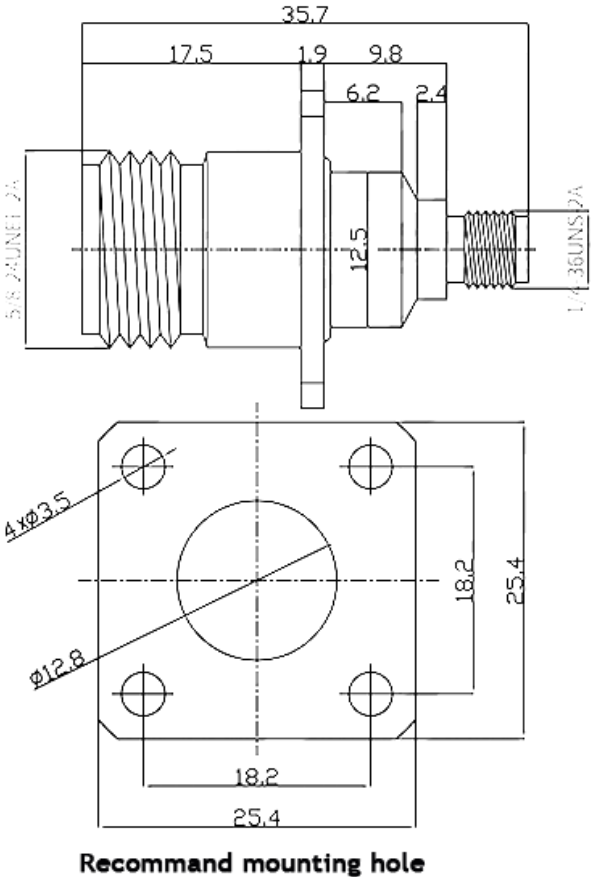

CAD Drawing
