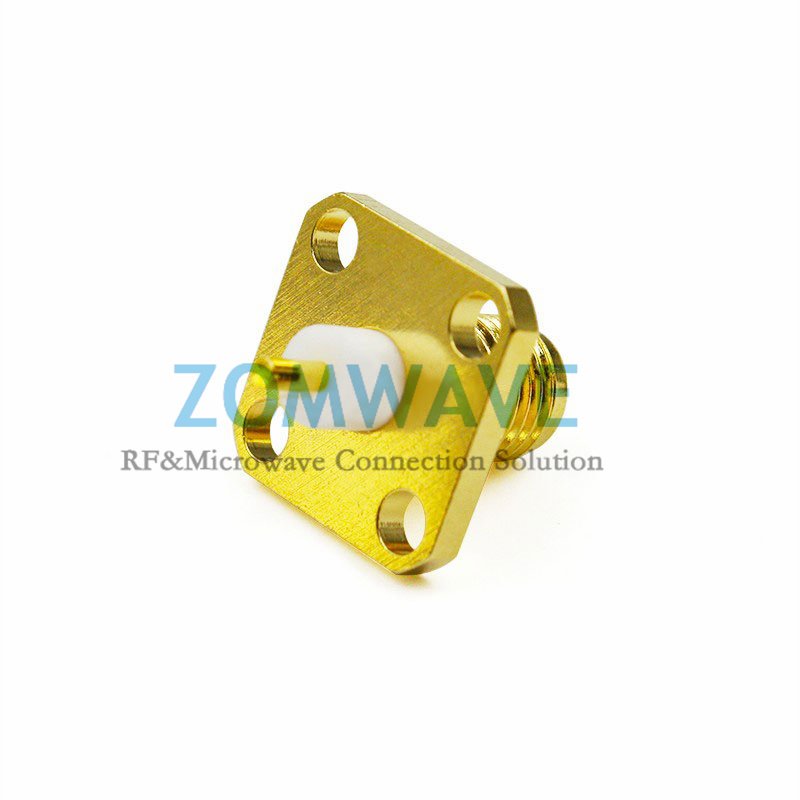

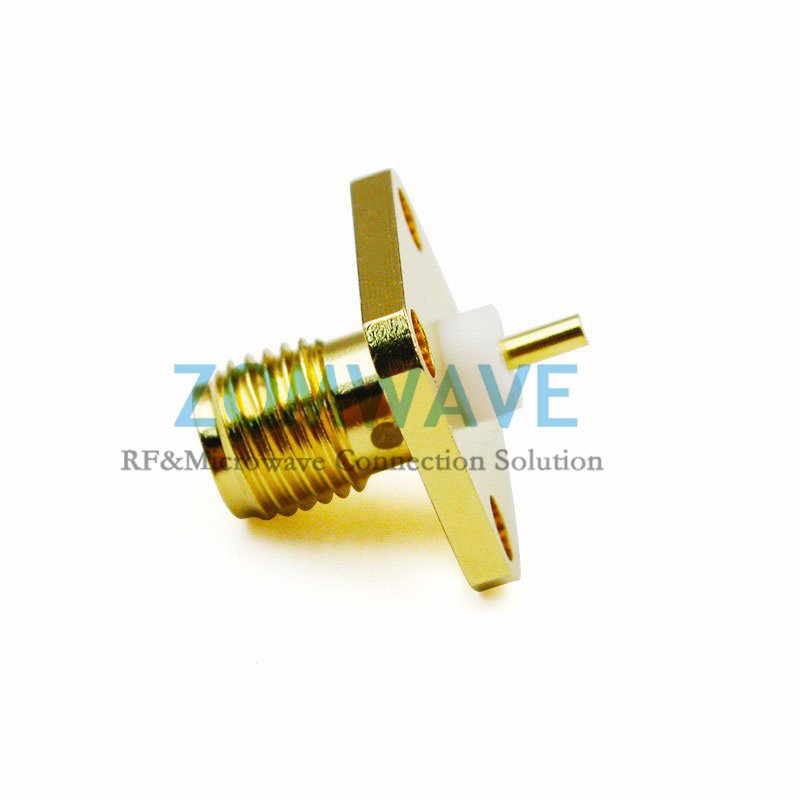

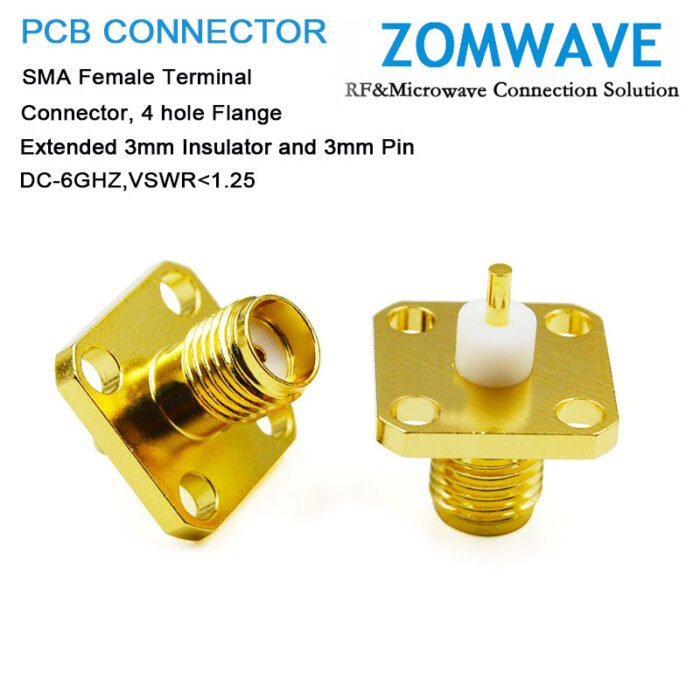

Get Precision SMA Connector Pins Shipped in 5 Days at Negotiated Price. This SMA Female Terminal Connector features a 4-hole flange, extended 3mm insulator, and 3mm SMA connector pins with a pin interface and 50 Ohm impedance. Designed for reliable, hermetically sealed connections, it utilizes a shield/contact solder attachment method and features a PTFE dielectric. The body is constructed from gold-plated brass for durability and performance. This flange-mounted SMA connector is RoHS and REACH compliant.As part of our extensive inventory of over 40,000 in-stock RF, microwave, and millimeter wave components ready for immediate worldwide shipment, this connector delivers proven quality. Need a custom solution? We also build custom SMA connector cable assemblies that ship within just 5 days.

Quantity Price Discount
1-9 $1.67 0%
10-49 $1.60 4%
50-99 $1.54 8%
100+ $1.40 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJS-FLTS-PTMS-006
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series SMA
Connector Gender Female
Connector AngleStraight
Connector Mount Method4 Hole Flange
Attachment MethodSolder
Interface TypeStub Terminal
Material
Centre Contactphosphorus-copper, gold plated
BodyBrass, gold plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)6GHZ
VSWR≤1.25:1 (DC 0~6GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

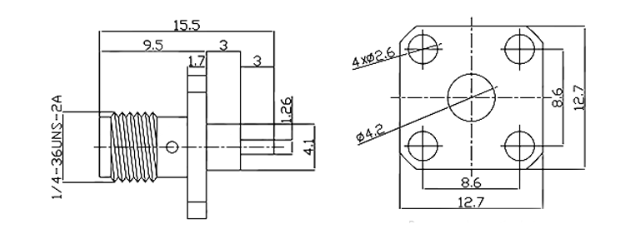

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
