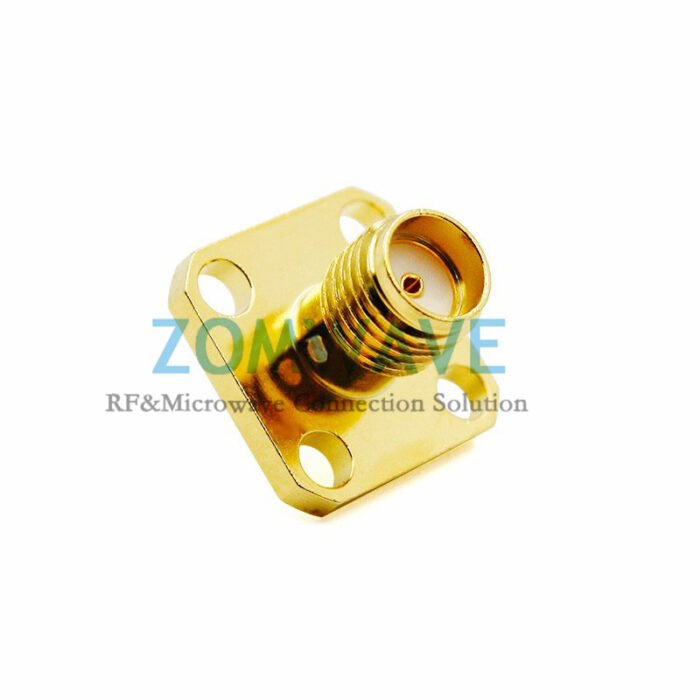

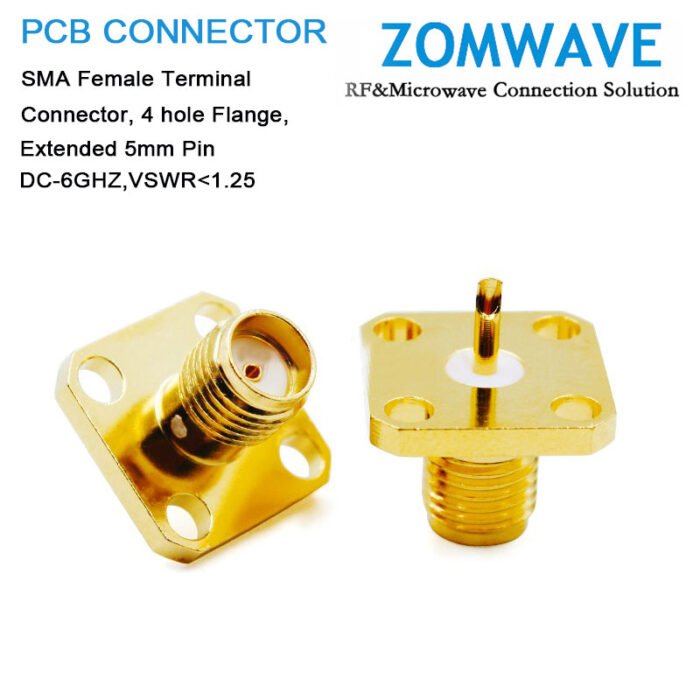

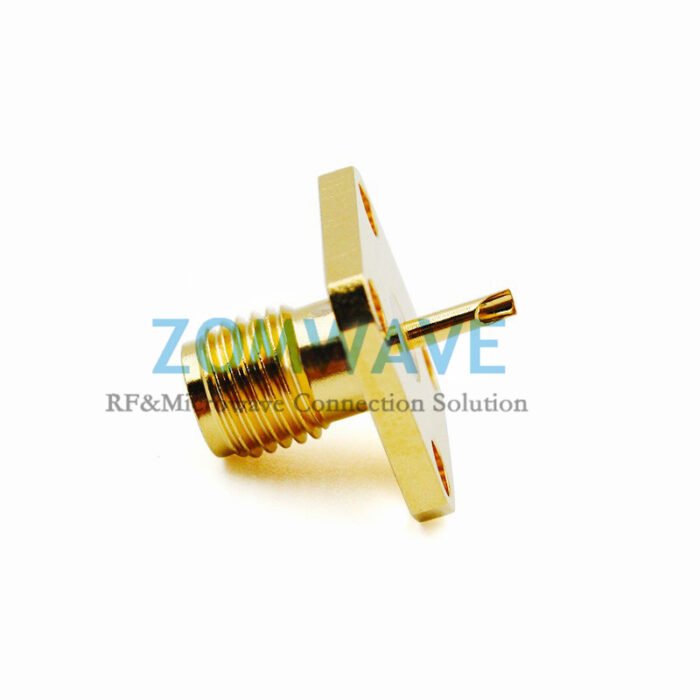

SMA Female Terminal Connector, 4 hole Flange, Extended 5mm Pin, 6G

$2.00

ZOMWAVE delivers rapid 5-day shipping with negotiated pricing for its SMA panel mount connector solutions. The SMA Female Terminal Connector features a robust four-hole flange and extended 5 mm pin, engineered as a reliable SMA panel connector for secure PCB integration and stable 50 Ohm impedance performance. Constructed from brass with gold plating and PTFE dielectric, this hermetically sealed SMA female four-hole flange terminal RF connector meets RoHS and REACH compliance standards. The reinforced panel mount design ensures vibration-resistant installation in demanding environments while maintaining consistent signal integrity. Backed by over 40,000 RF, microwave and millimeter-wave components in stock for global delivery, this SMA panel connector effectively solves common installation challenges by providing superior mechanical stability against torque and vibration, complemented by custom SMA connector cable assemblies ready to ship within five days to accelerate project timelines.

Quantity Price Discount
1-9 $2.00 0%
10-49 $1.92 4%
50-99 $1.84 8%
100+ $1.68 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJS-FLTS-PTMS-99

Key specifications

Configuration
Connector Series SMA
Connector Gender Female
Connector AngleStraight
Connector Mount Method4 Hole Flange
Attachment MethodSolder
Interface TypeStub Terminal
Material
Centre Contactphosphorus-copper, gold plated
BodyBrass, gold plated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)6GHZ
VSWR≤1.25:1 (DC 0~6GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
