SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin, 6G
SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin, 6G
Click to enlarge

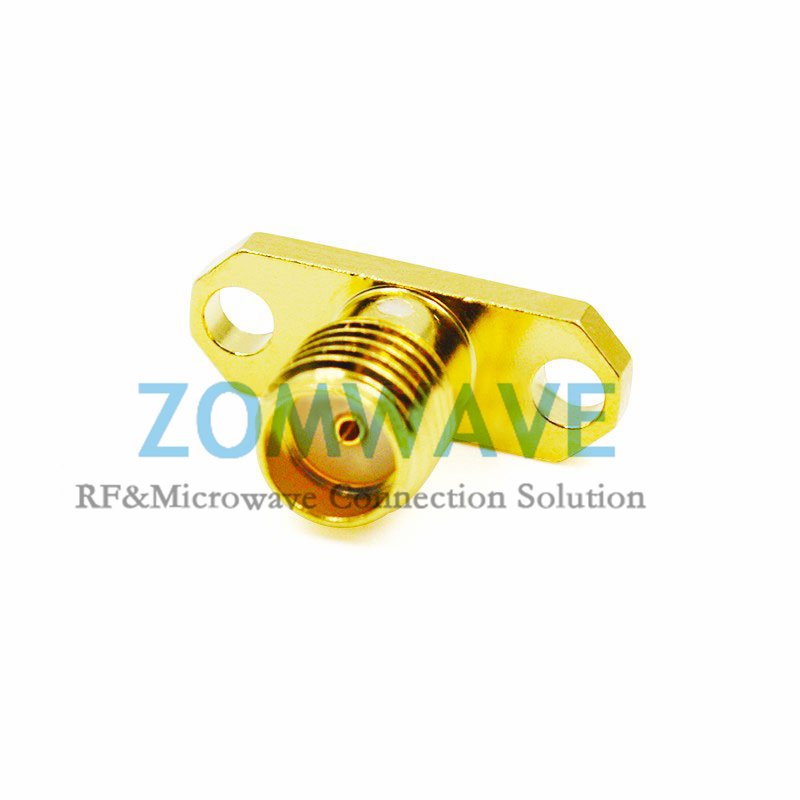

SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin, 6G

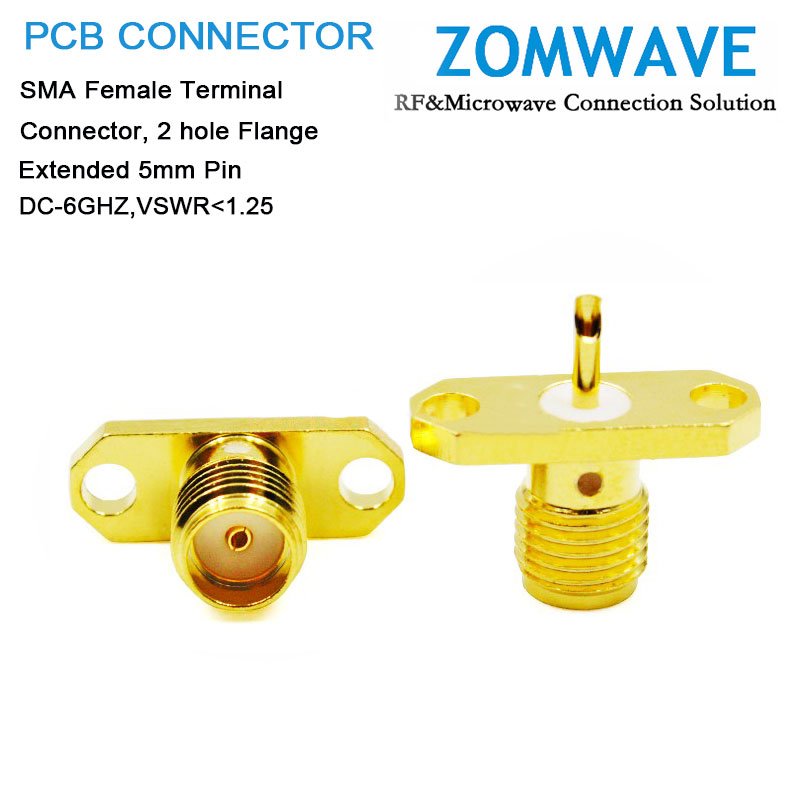

SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin, 6G

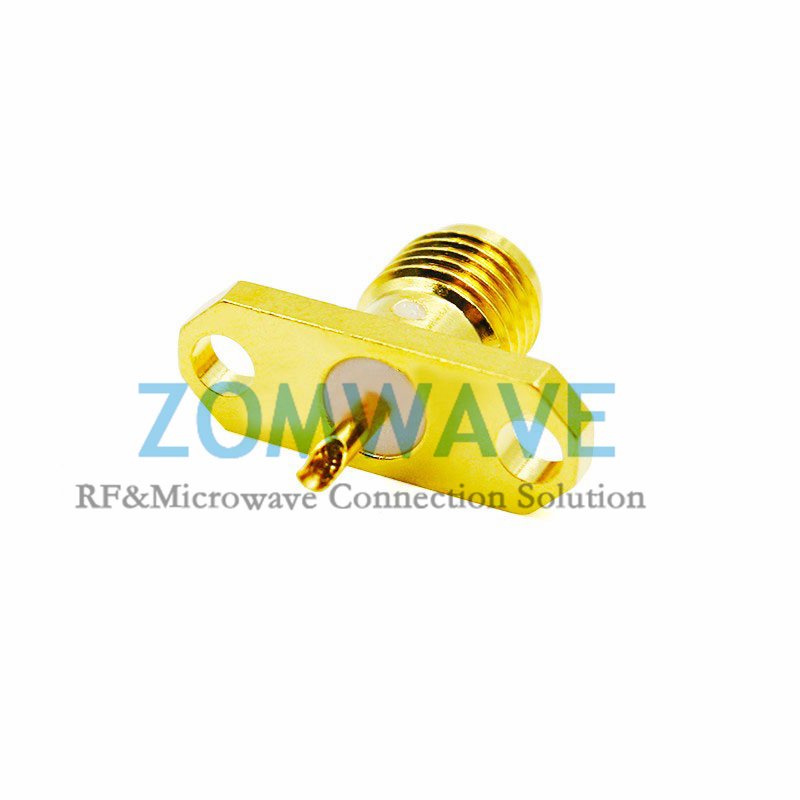

SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin, 6G

$2.00

5 Days Ship Out. Negotiated Prcie. SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin connector has an interface type of pin and a 50 Ohm impedance.ZOMWAVE SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin connector uses shield/contact solder as an attachment method. ZOMWAVE SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin connector has a PTFE dielectric type. ZOMWAVE SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin connector has a brass body with gold plating. This SMA female 2 hole flange hermetically sealed terminal RF connector is RoHS and REACH compliant. Our SMA Female Terminal Connector, 2 hole Flange, Extended 5mm Pin connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship in 5 Days.

Quantity Price Discount
1-9 $2.00 0%
10-49 $1.92 4%
50-99 $1.84 8%
100+ $1.68 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJS-FLTS-PTMS-88
View Datasheet
3D CAD Model(.step)

Key specifications

Configuration
Connector Series SMA
Connector Gender Female
Connector AngleStraight
Connector Mount Method2 Hole Flange
Attachment MethodSolder
Interface TypeStub Terminal
Material
Centre ContactBeryllium-copper, gold plated
BodyStainless Steel , Passivated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)18GHZ
VSWR≤1.25:1 (DC 0~18GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

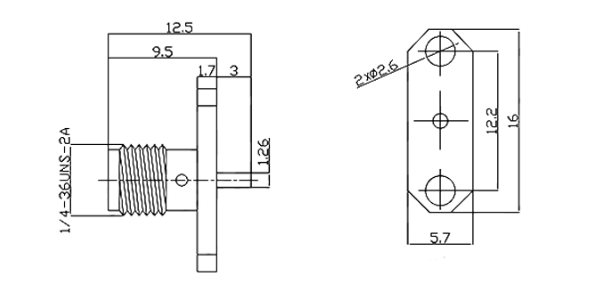

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
