SMA Female Straight Surface Mount PCB Connector, No Stepped Face, 6GHz

Click to enlarge

SMA Female Straight Surface Mount PCB Connector, No Stepped Face, 6GHz

$2.00

ZOMWAVE’s SMA Female Straight Surface Mount PCB Connector offers 5-day shipping and negotiated pricing to accelerate production schedules. This essential pcb sma connector features a surface mount contact interface with 50 Ohm impedance, utilizing dual shield and contact solder attachment for secure grounding and mechanical retention. As a reliable sma connector pcb mount solution with a no stepped face design, it covers DC to 6GHz with PTFE dielectric and maintains VSWR below 1.25. The connector’s brass body with gold plating and beryllium copper contact ensures durable performance while meeting RoHS and REACH compliance standards. This surface mount sma connector solves core manufacturing challenges by providing excellent thermal stability during reflow, preventing tombstoning via optimized pad geometry, and ensuring consistent coplanarity for reliable automated assembly. With over 40,000 RF components available for global shipment, this SMA female pcb connector is compatible exclusively with 2.4mm interfaces. ZOMWAVE also supplies complementary SMA Female Straight Thru Hole PCB Connectors, offering engineers layout flexibility while maintaining consistent RF performance. The design further enhances mechanical strength and signal integrity, reducing rework and supporting high-volume production with repeatable results.

Quantity	Price	Discount
1-9	$2.00	0%
10-49	$1.92	4%
50-99	$1.84	8%
100+	$1.68	16%

200+ Call US

Get a lower discount price

SKU: P/N:MAJS-NMSS-PSMT-98

Key specifications

Configuration
Connector Series	SMA
Connector Gender	Female
Connector Angle	Straight
Connector Mount Method	None
Attachment Method	Solder
Interface Type	Surface Mount Contact
Material
Centre Contact	Berylium-copper, gold plated
Body	Brass, gold plated
Insulators	PTFE
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	6GHZ
VSWR	≤1.25:1 (DC 0~6GHz)
Insertion Loss	0.05 xSqt.(f_Ghz)
Voltage Rating	150 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

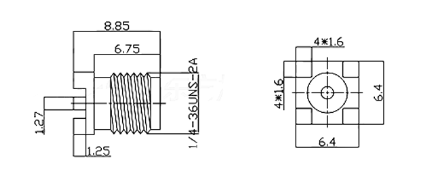

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%

FAQ

Q1. What is your delivery time?
A1). We promise within 5 days ship out for the standard products less than 200 pcs.
A2).Customized products would be 2~3 weeks lead time.
Q2. Which shipping way is available and how to track?
A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.
A2). Tracking No. will be sent after goods ship out.
Q3. Do your price include freight cost and custom duty?
A1). Price do NOT include the freight cost and import duty.
A2). We can quote you the detail freight cost by our forwarder agent.
Q4. Which payment way is workable?
A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).
A2).Payment in advance for new clients.
Q5. What is the MoQ of your products?
A1). No MOQ request for standard products (include customized length cable) on our website.
A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).
Q6. Could you supply the sample for me to test first?
A1). We are honored to offer you samples. New clients are expected to pay the sample fee.
A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).
