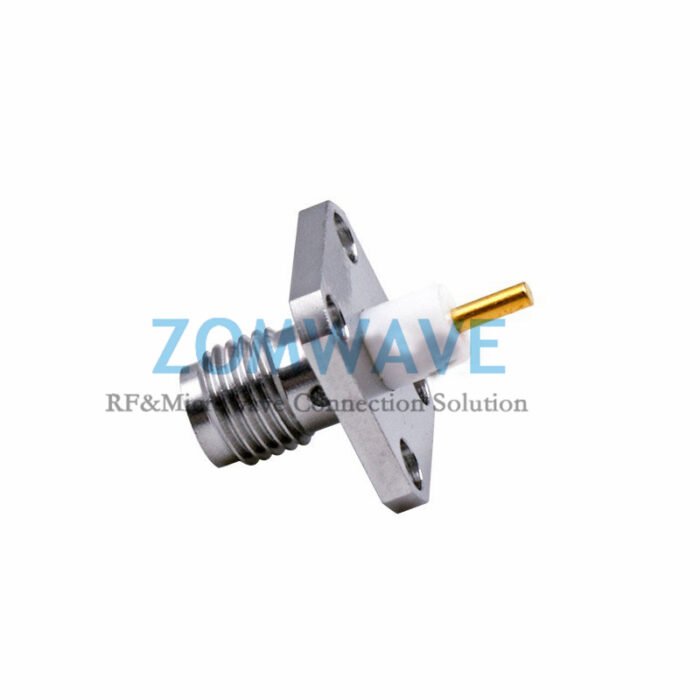

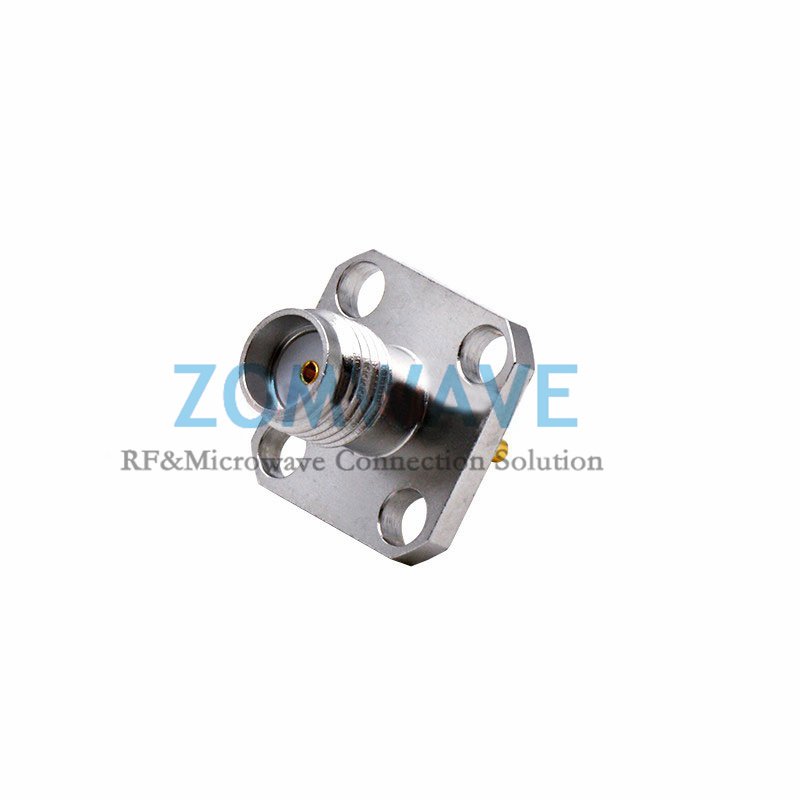

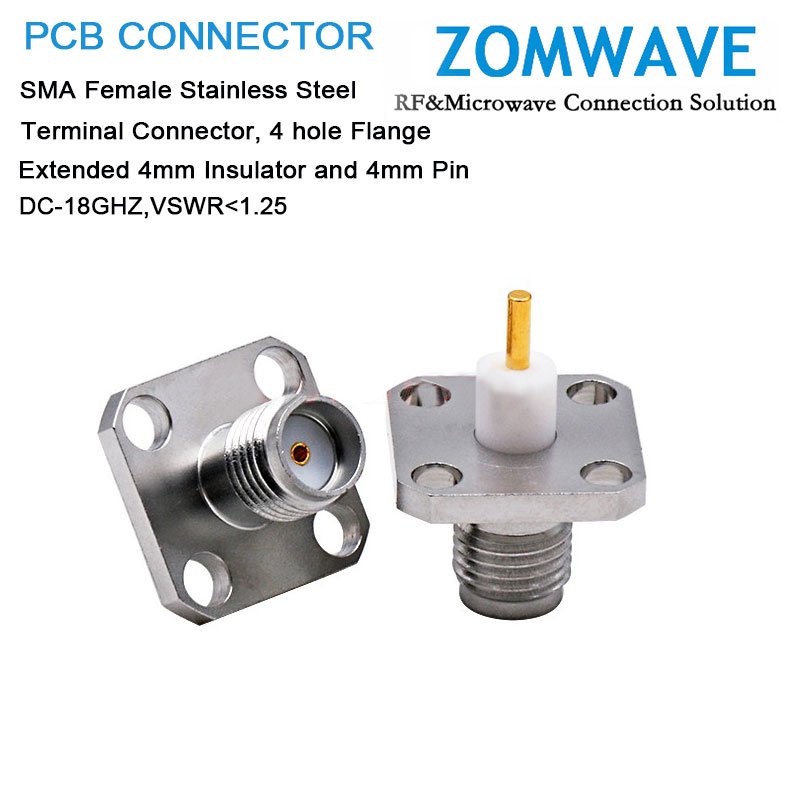

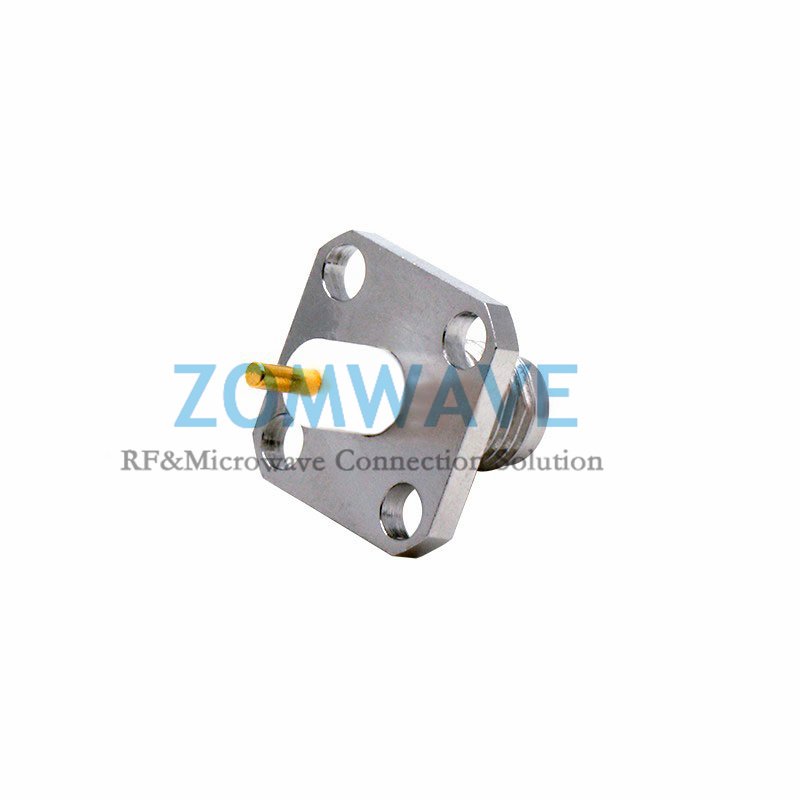

SMA Female Stainless Steel Terminal,4 hole Flange, 4mm Insulor and 4mm Pin,18G

$10.32

ZOMWAVE offers a competitively priced SMA Female Stainless Steel Terminal Connector with a four hole flange, extended 4 mm insulator and 4 mm pin, featuring a pin interface and 50 Ohm impedance; this sma female connector uses shield and contact solder attachment and a PTFE dielectric with a passivated stainless steel body to provide hermetic sealing and corrosion resistance for reliable performance in harsh environments, and it is RoHS and REACH compliant; stocked as part of over 40,000 RF, microwave and millimeter wave components, this sma female connector reduces assembly time and downtime through easy panel mounting, high mating cycle durability, and improved sealing, while ZOMWAVE also offers custom SMA connector cable assemblies with the same quality controls and 5 day ship out to help engineering and procurement teams simplify sourcing, lower total cost of ownership, and accelerate time to deployment.
Quantity Price Discount
1-9 $10.32 0%
10-49 $9.91 4%
50-99 $9.49 8%
100+ $8.67 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:MAJS-FLTS-PTMS-006

Key specifications

Configuration
Connector Series SMA
Connector Gender Female
Connector AngleStraight
Connector Mount Method4 Hole Flange
Attachment MethodSolder
Interface TypeStub Terminal
Material
Centre ContactBeryllium-copper, gold plated
BodyStainless Steel, Passivated
InsulatorsPTFE
Electrical Specifications
Impedance50 ohm
Frequency Range(From DC)18GHZ
VSWR≤1.25:1 (DC 0~18GHz)
Insertion Loss0.05 xSqt.(f_Ghz)
Voltage Rating150 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 500 cycles
Mating Torque5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

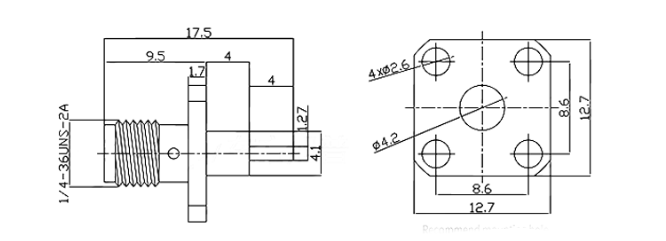

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
