Single Channel RF Rotary Joint Operating to 26.5 GHz, 3.5mm Female to 3.5mm Female Straight Adapter

$523.81

The ZOMWAVE RF rotary joint RJ-RF-1C0P3JS-26G-01 is a single-channel straight rotary joint designed for critical radar and rotating antenna systems. Engineered to exacting radio frequency standards, it ensures reliable signal integrity in demanding applications including air traffic control, maritime, vehicular, and mobile radar platforms.

This unit features a robust 3.5mm female to 3.5mm female interface, providing a consistent and secure connection across its full operational bandwidth. Key performance specifications include a maximum frequency of 26.5 GHz and an excellent voltage standing wave ratio (VSWR) of 1.35:1, minimizing signal loss and reflection for superior system performance.

Quantity Price Discount
1-9 $523.81 0%
10-49 $502.86 4%
50-99 $481.91 8%
100+ $450.48 14%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:RJ-RF-1C0P3JS-26G-01

Key Specifications

Configuration
Channels1
Connector Series 3.5mm
Connector ShapeStraight
Connector GenderFemale
Electric Specifications
Impedance50ohm
Frequency Range(From DC)26.5GHz
VSWR≤1.35:1
Insertion Loss<0.65dB
Average power capability200W@1GHz
Mechanical Characteristics
Mating Cycles≥ 5000,000 cycles
Rotation Speed Max(rpm)300
Environmental Characteristics (RoHS Complliant)
Temperature Rating-25°C ~ +65°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

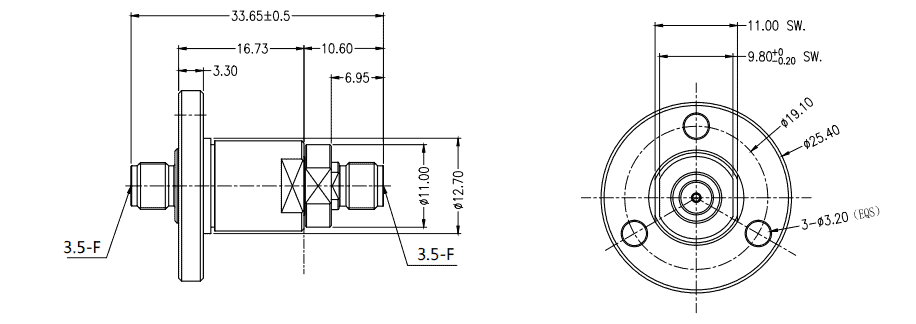

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
