RF Coaxial SG Probe, SMPM Male to SG Pads, Pitch 1.0mm, 8GHz

$56.00

The RF Coaxial SG Probe, SMPM Male to SG Pads, Pitch 1.0mm, 8GHz is perfect for interconnection of coaxial components or sub-systems connection. This 50 ohm rf test probe has a straight body. Our RF Coaxial SG Probe, SMPM Male to SG Pads, Pitch 1.0mm, 8GHz test probe is Stainless Steel Plated that is cost-effetive for use. ZOMWAVE RF Test Probe has excellent VSWR performance with frequency up to 8 GHz



Quantity Price Discount
1-9 $56.00 0%
10-49 $53.76 4%
50-99 $51.52 8%
100+ $47.04 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:GPP-PCP-SFL-17
View Datasheet
3D CAD Model(.step)

Key Specifications

Configuration
Adapter Series 1SMPM
Adapter Gender 1Male
Adapter Angle 1Straight
Adapter Mount Method 12 Hole Flange
Body Materials and Plating 1Be-Cu, Gold Plated
Adapter Series 2SG PCB Pads
Adapter Gender 2Male
Adapter Angle 2Straight
Adapter Mount Method 2None
Body Materials and Plating 2Stainless Steel Passivated
Electric Specifications
Impedance50ohm
Frequency Range(From DC)8GHz
VSWR≤1.4:1 (DC 0~8GHz)
Insertion Loss≤0.8dB(dc 0~8GHZ)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage>100 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles SMPM≥ 500 cycles
Probe Durability ≥ 10000 cycles
Mating Torque 5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft

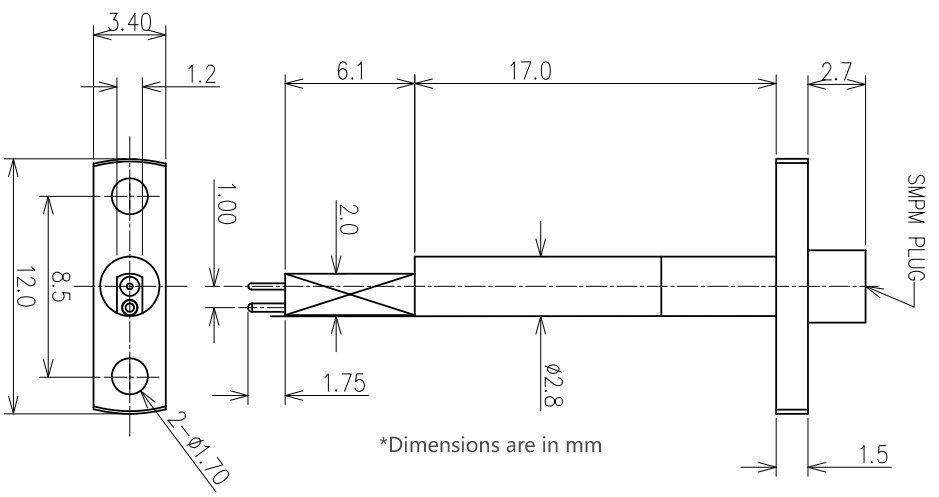

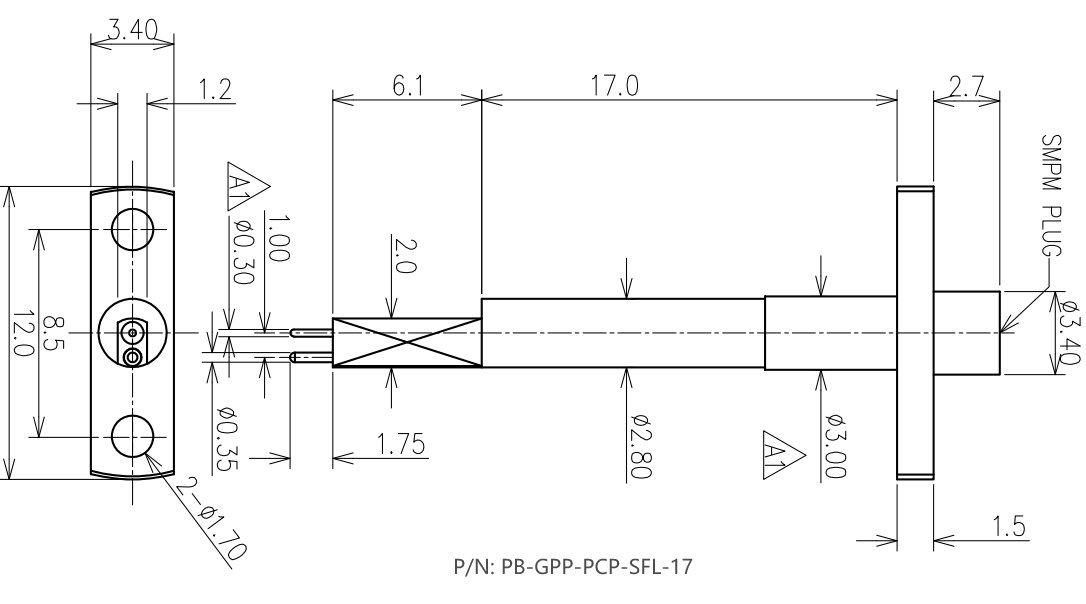

CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
