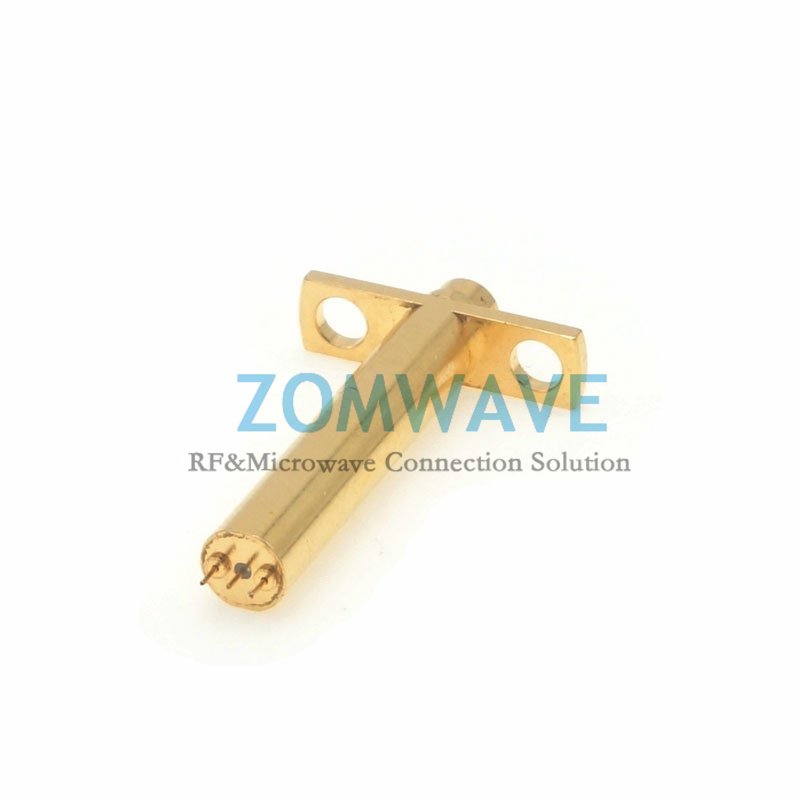

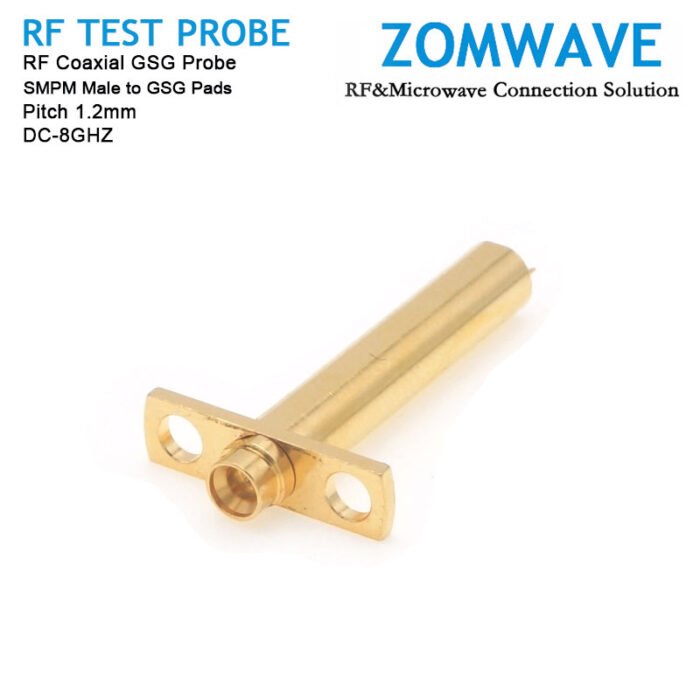

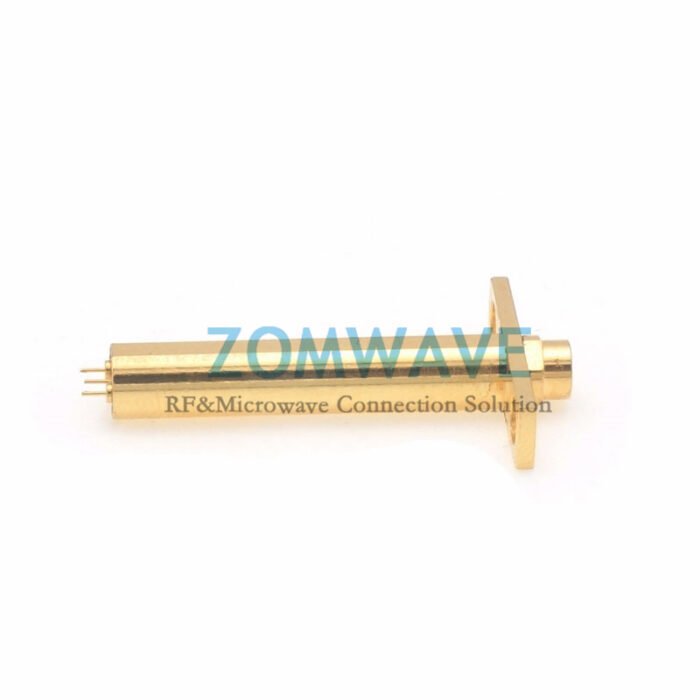

RF Coaxial GSG Probe, SMPM Male to GSG Pads, Pitch 1.2mm, 8GHz

$55.47

Engineered for precision RF testing and measurement, ZOMWAVE rf coaxial gsg probe and rf test probes provide an SMPM male to GSG pads interface with a precise 1.2 mm pitch and 50 ohm straight body design to deliver stable interconnections and minimal loss for repeatable on wafer, subsystem validation and production testing up to 8 GHz; gold plated brass construction balances performance and cost while offering low contact resistance and strong VSWR to minimize calibration drift. These probes improve automated test throughput and reduce setup errors by simplifying probe alignment and fixture integration. Additional benefits include spring-loaded tip options, temperature-compensated materials for thermal stability, low PIM tips for sensitive measurements, configurable probe lengths and tip geometries for custom fixtures, full lot traceability and RF verification for quality control, and extended durability ratings to cut downtime, lower rework, shorten qualification cycles, and ensure consistent measurement accuracy across semiconductor, telecommunications, and R&D production lines.



Quantity Price Discount
1-9 $55.47 0%
10-49 $53.25 4%
50-99 $51.03 8%
100+ $46.59 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:PB-GPP-GSG120-SFL-01

Key Specifications

Configuration
Adapter Series 1SMPM
Adapter Gender 1Male
Adapter Angle 1Straight
Adapter Mount Method 22 Hole Flange
Body Materials and Plating 1Brass with Gold Plated
Adapter Series 2GSG PCB Pads
Adapter Gender 2Male
Adapter Angle 2Straight
Adapter Mount Method 2None
Body Materials and Plating 2Brass with Gold Plated
Electric Specifications
Impedance50ohm
Frequency Range(From DC)8GHz
VSWRTBD
Insertion LossTBD
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage>100 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating CyclesSMPM≥ 500 cycles
Probe Durability≥ 10000 cycles
Mating Torque5~7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
