NMD2.4mm Female to NMD2.4mm Male VNA Test Cable With Multilayer Armor,DC-50GHz

$1,055.56

VNA test cable is an instrument that measures the network parameters of electrical networks. Today, network analyzers commonly measure s–parameters because reflection and transmission of electrical networks are easy to measure at high frequencies, but there are other network parameter sets such as y-parameters, z-parameters, and h-parameters. Network analyzers are often used to characterize two-port networks such as amplifiers and filters, but they can be used on networks with an arbitrary number of ports.

Quantity Price Discount
1-9 $1,055.56 0%
10-49 $1,013.34 4%
50-99 $971.12 8%
100+ $886.67 16%

   200+                                     Call US

   Get a lower discount price

SKU: P/N:VN50-NP2JNP2P-00.63M

Key specifications

Configuration
Connector Series 1NMD2.4mm
Connector Gender 1Female
Connector Angle 1Straight
Connector Mount Method1None
Body Materials and Plating 1Stainless Steel, Passivated
Connector Series 2NMD2.4mm
Connector Gender 2Male
Connector Angle 2Straight
Connector Mount Method 2None
Body Materials and Plating 2Stainless Steel, Passivated
Cable Length24.8inch/630mm
Electric Specifications
Impedance50 ohm
Frequency Range(From DC)50GHz

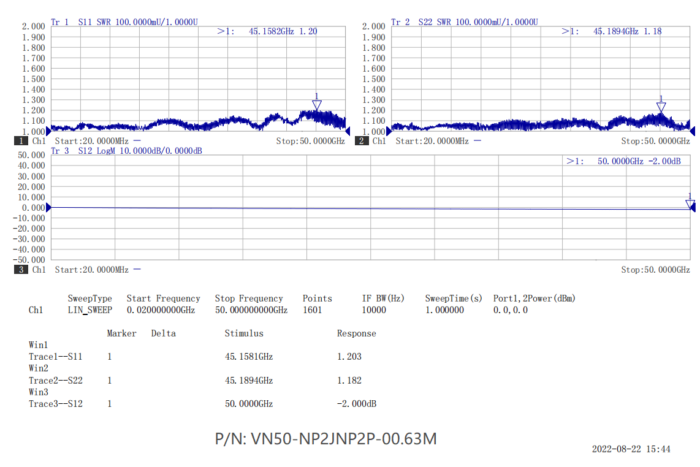

VSWR≤1.35:1 (DC 0~50GHz)
Insertion Loss<3.2dB
Mechanical Phase<±10°
Amplitude Stability<±0.1dB
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage500 V
Insulation Resistance≥500 Mohm
Mechanical Characteristics
Mating Cycles≥ 2000 cycles
Mating Torque30 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating-40°C ~ +165°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Armor Specification
Armor TypeVNA Multilayer Armor
Jacket Diameter(mm)14.5
Min. Bending Radius(mm)50
Compression Resistance (N)230N/25mm
CAD Drawing

Dimensions in mm/ [inch], Tolerance +1%
